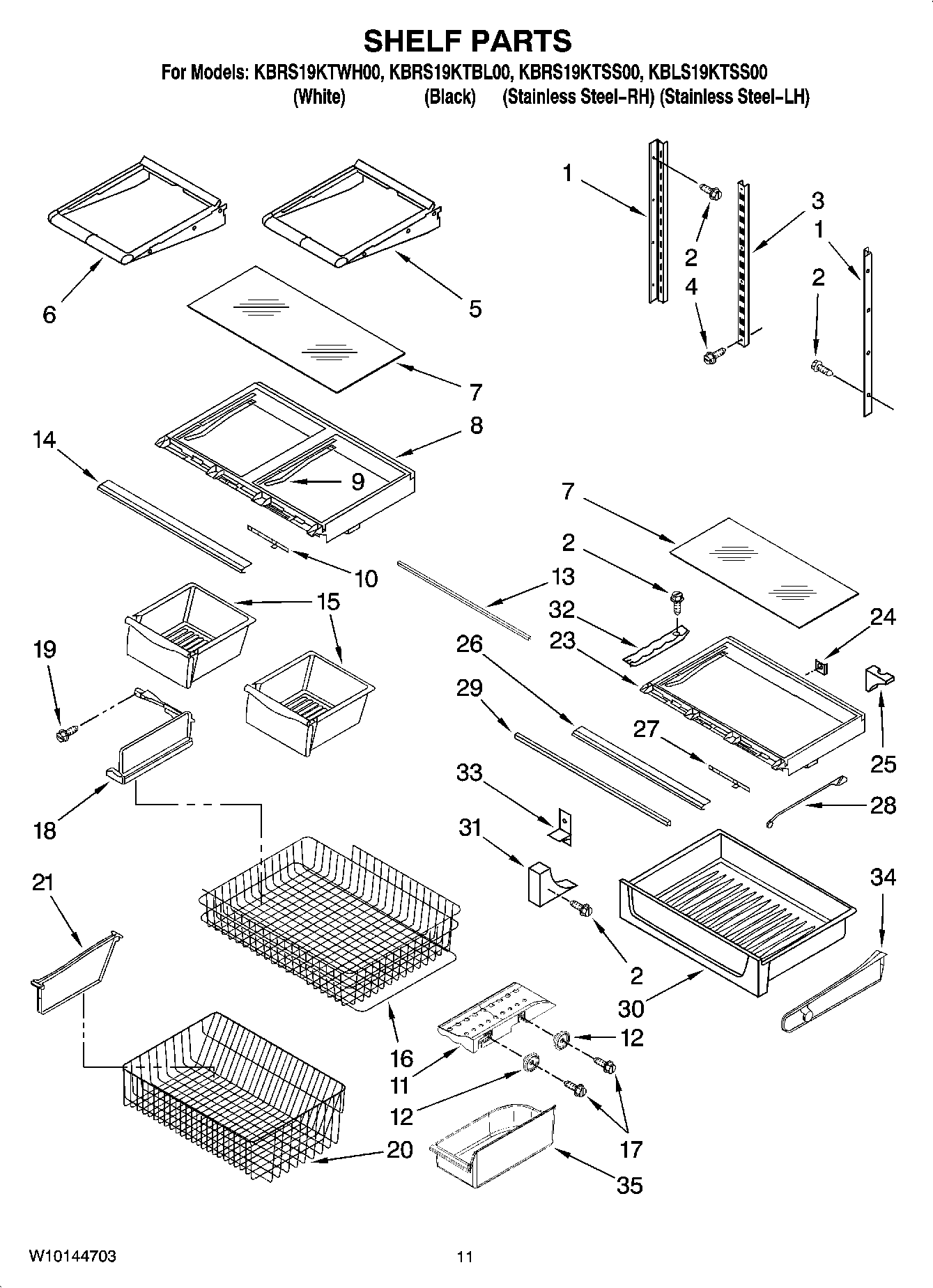

KBRS19KTBL00 06 – SHELF PARTS

Products

Position	Product
1	Ladder, Side
2	67006425 Whirlpool Refrigerator Screw
3	67001073 Whirlpool Refrigerator Center Ladder
4	W10709795 Whirlpool Refrigerator Screw
5	Shelf, Sta (2)
6	Shelf, Glide (2)
7	WP67006877 Whirlpool Refrigerator Glass Shelf
9	RAIL-CENTR CRISPER
10	SLIDE
11	Rack, Ice
12	WP10972101 Whirlpool Refrigerator Spacer
13	Whirlpool Refrigerator Shelf Support Liner
14	Trim, Crisper
15	W10833528 Whirpool Refrigerator Crisper Pan
16	Basket, Freezer (Upper)
17	WP67006908 Whirlpool Refrigerator Screw
18	Divider, Upper Basket
19	Screw
20	W10503182 Whirlpool Refrigerator Freezer Basket
21	Divider, Lower Basket
23	WPW10671240 Whirlpool Refrigerator Frame
24	Gasket, Pantry
25	WP12531601 Whirlpool Refrigerator Tunnel
26	W10656984 Whirlpool Refrigerator Shelf Trim
27	67002002 Whirlpool Refrigerator Pantry Slide
28	Rod, Temperature Control
29	WP12227303WD Whirlpool Refrigerator Crisper Brace
30	W10328331 Whirlpool Refrigerator Utility Pan
31	WP67001722 Whirlpool Refrigerator Support
31	WP67001721 Whirlpool Refrigerator Support
32	WP67001719 Whirlpool Refrigerator Track
33	WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
34	Divider, Pantry
35	WP67001255 Whirlpool Ice Bucket
