KBRS19KTBL00 07 – FREEZER DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
	ACCESSORIES
	4396418 Whirlpool Ice Maker
	ACCESSORY PARTS, STAINLESS STEEL CLEANER & POLISH
	Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
	Miscellaneous
	TORX SCREW WRENCH
	FIELD INSTALLABLE ICE MAKER
	WPL 799833
	Enamel, Black (1 Qt. Uncut)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	833938 Whirlpool Refrigerator Terminal
	350942 Whirlpool Spray Paint
	WP503695 Whirlpool Refrigerator Sealer
	212643 Whirlpool Refrigerator Permagum Sealer
	799344 Whirlpool Refrigerator Paint
	WP505587 Whirlpool Refrigerator Sealer
	WP542638 Whirlpool Refrigerator Grease
	Torx Key
	TAPE, VINYL (3/4 X 108“)
	72017 Whirlpool Appliance Touch-Up Paint White

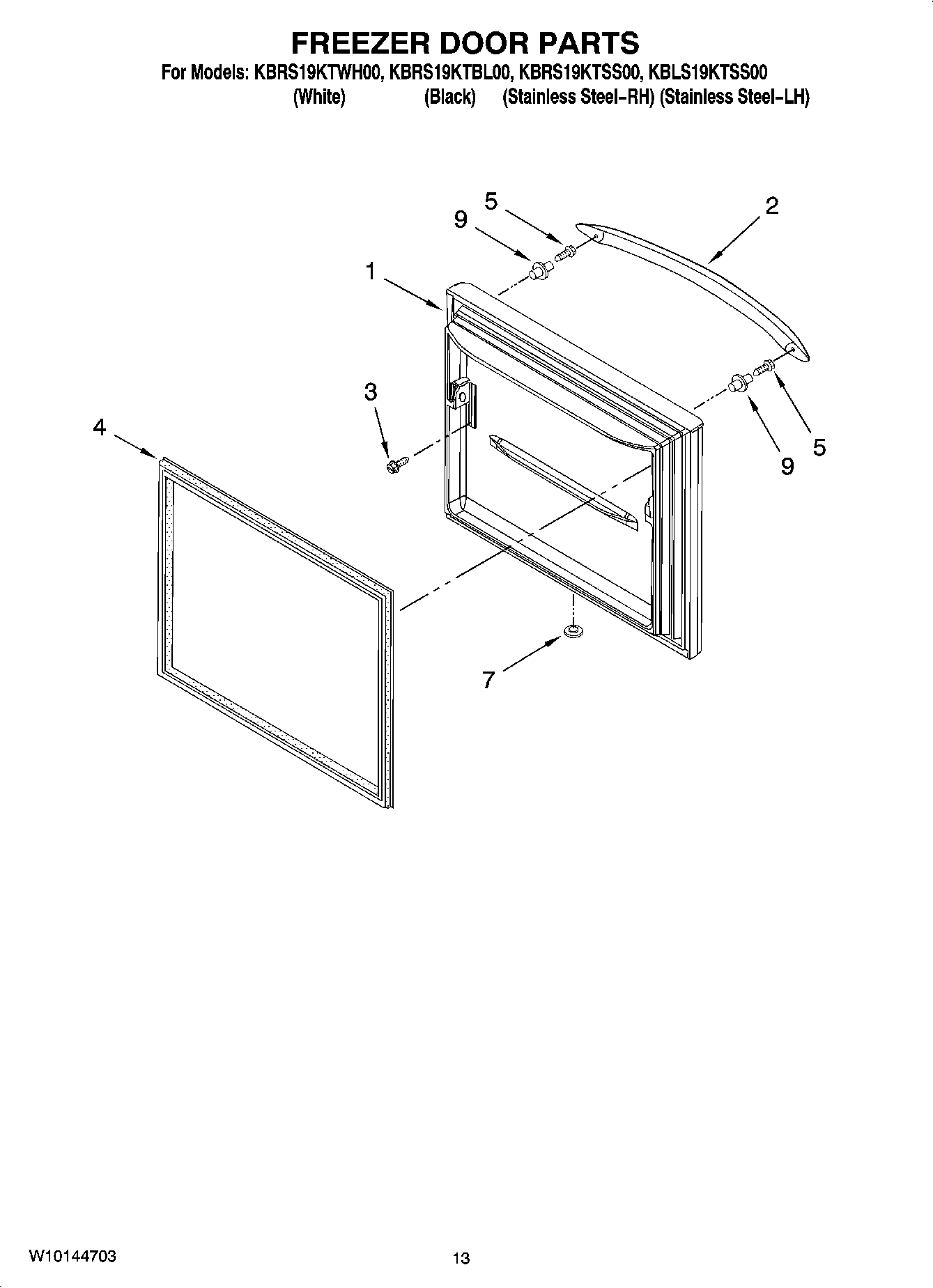

1	Freezer Door (w/ Insulation) (White)
1	Freezer Door (w/ Insulation) (Black)
1	Freezer Door (w/ Insulation) (Stainless Steel)
2	Handle, Door (Black)
2	WPW10314515 Whirlpool Refrigerator Handle
2	WPW10314517K Whirlpool Refrigerator Handle
3	12991101 Whirlpool Refrigerator Screw
4	WPW10436247 Whirlpool Refrigerator FIP Gasket
4	GASKET-FIP
5	WP3387230 Whirlpool Screw
7	10712401 Whirlpool Refrigerator Vent Plug (White)
7	67004838 Whirlpool Refrigerator Button Vent Plug
9	Stud, Handle
