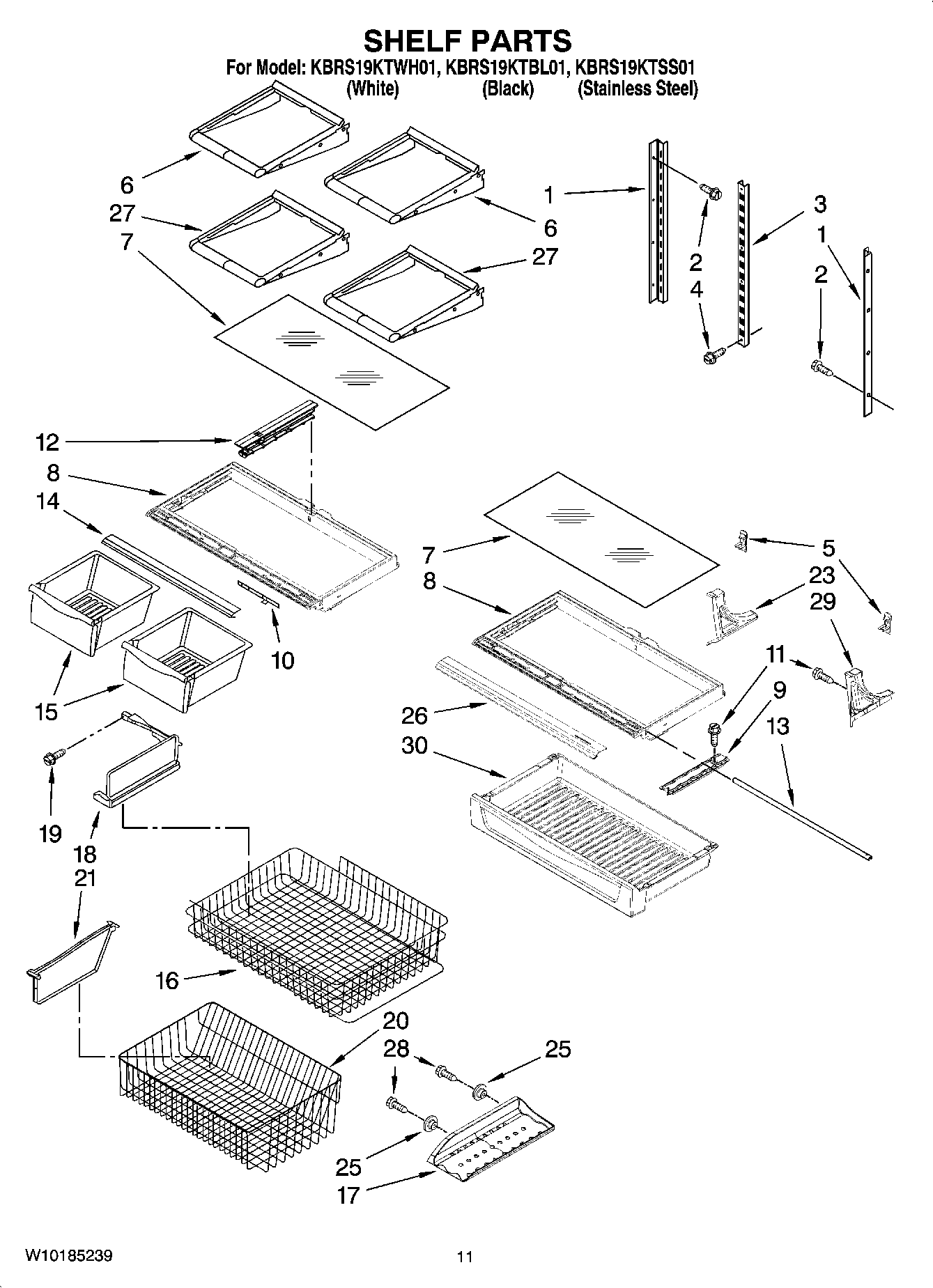

KBRS19KTBL01 06 – SHELF PARTS

KBRS19KTBL01 06 – SHELF PARTS

Written by

in

KBRS19KTBL01 06 – SHELF PARTS

Products

PositionProduct
1Ladder, Side
367001073 Whirlpool Refrigerator Center Ladder
4W10709795 Whirlpool Refrigerator Screw
5WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
6Shelf, Sta (2)
7WP67006877 Whirlpool Refrigerator Glass Shelf
8WPW10671240 Whirlpool Refrigerator Frame
9WP67001719 Whirlpool Refrigerator Track
10SLIDE
1167006425 Whirlpool Refrigerator Screw
12RAIL-CENTR CRISPER
13Whirlpool Refrigerator Shelf Support Liner
14WPW10231481 Whirlpool Refrigerator Shelf Trim
15W10833530 Whirlpool Refrigerator Crisper Pan
16Basket, Freezer (Upper)
17Rack, Ice
18Divider, Upper Basket
19Screw
20W10503182 Whirlpool Refrigerator Freezer Basket
21Divider, Lower Basket
23WP67001721 Whirlpool Refrigerator Support
25WP10972101 Whirlpool Refrigerator Spacer
26W10656984 Whirlpool Refrigerator Shelf Trim
27Shelf, Glide (2)
28WP67006908 Whirlpool Refrigerator Screw
29WP67001722 Whirlpool Refrigerator Support
30W10328331 Whirlpool Refrigerator Utility Pan
