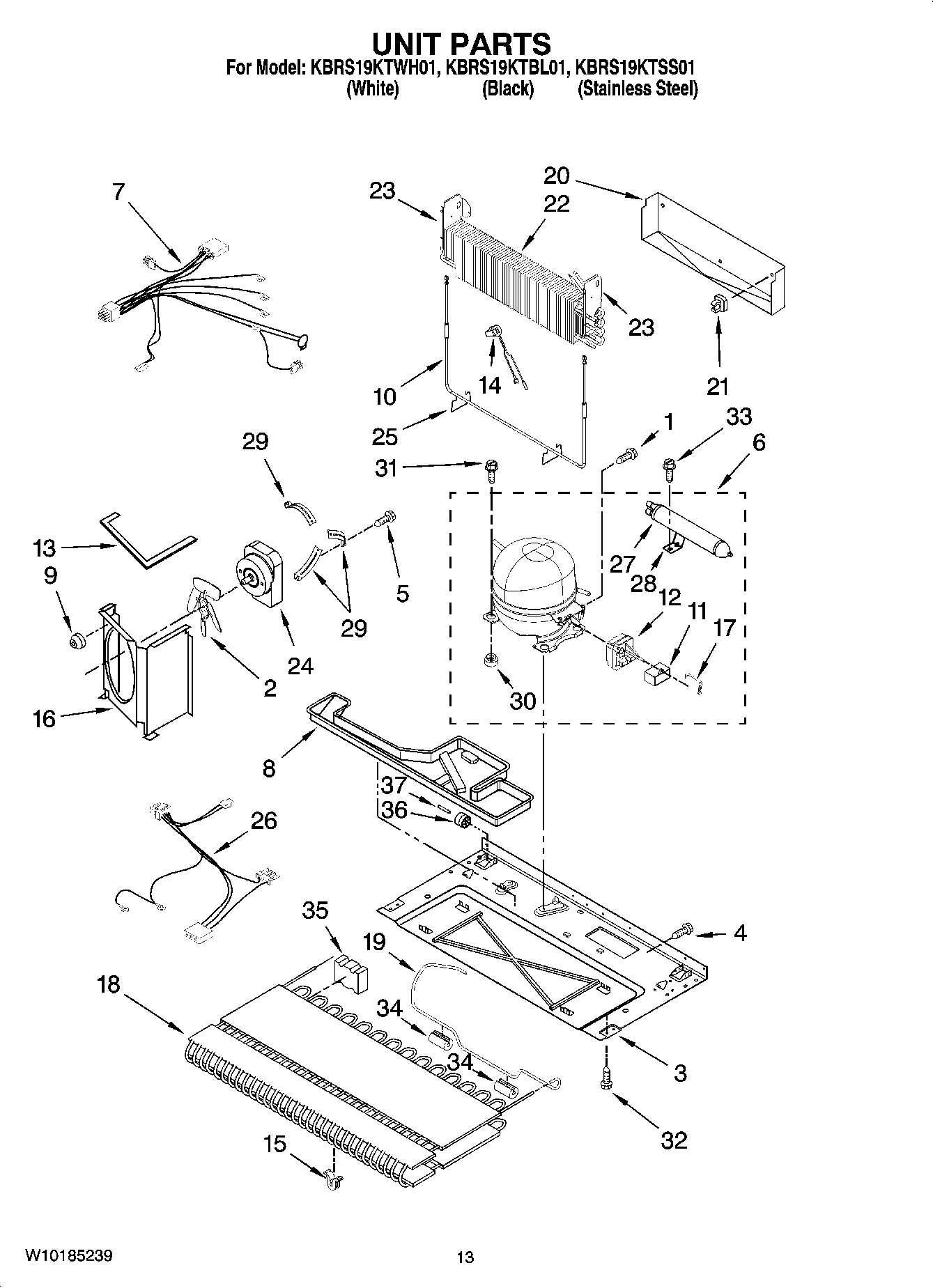

KBRS19KTBL01 07 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (5/8“)
	876764 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	978027 Whirlpool Refrigerator Primary Valve
	978030 Whirlpool Refrigerator Valve
	WP978025 Whirlpool Refrigerator Valve
	VALVE, ACCESS (1/2“)
	REFRIGERANT CHARGE 5.00 Ozs. (R-134A)
1	12992301 Whirlpool Refrigerator Screw
2	W10156818 Whirlpool Refrigerator Fan Blade
3	Basepan
4	67006425 Whirlpool Refrigerator Screw
5	WP67004954 Whirlpool Refrigerator Screw
6	COMPRESSOR (INCLUDES ITEMS 11,12,17,27)
7	Harness, Evap. Heater
8	Drain Pan
9	Grommet (3)
10	WP67002135 Whirlpool Refrigerator Defrost Heater
11	W10613606 Whirlpool Refrigerator Start Device Relay Overload
12	8201769 Whirlpool Refrigerator Compressor Relay Overload Start Device
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	WPW10165425 Whirlpool Bimetal Defrost Thermostat
15	WPW10137529 Whirlpool Refrigerator Grommet
16	Shroud, Condenser
17	Clip, Capacitor
18	67006133 Whirlpool Refrigerator 30" Condenser BM
19	Tube, Discharge
20	W11337775 Whirlpool Drip Tray
21	CLIP, EVAP (2)
22	EVAPORATOR
23	Dam (Right Side)
23	Dam (Left Side)
24	Motor, Fan
25	W11673433 Whirlpool Clip
26	Harness, Unit Includes Cord
27	WPB2150504 Whirlpool Refrigerator Dryer
28	10547003 Whirlpool Refrigerator Dryer Clip
29	WP67004953 Whirlpool Refrigerator Bracket
30	WPW10169124 Whirlpool Refrigerator Grommet
31	12846902 Whirlpool Refrigerator Screw
32	Screw (4)
33	WP33001882 Whirlpool Screw
34	67005680 Whirlpool Refrigerator Condenser Grommet
35	Block, Condenser
36	WP67005149 Whirlpool Roller
37	67006434 Whirlpool Axle Pin
