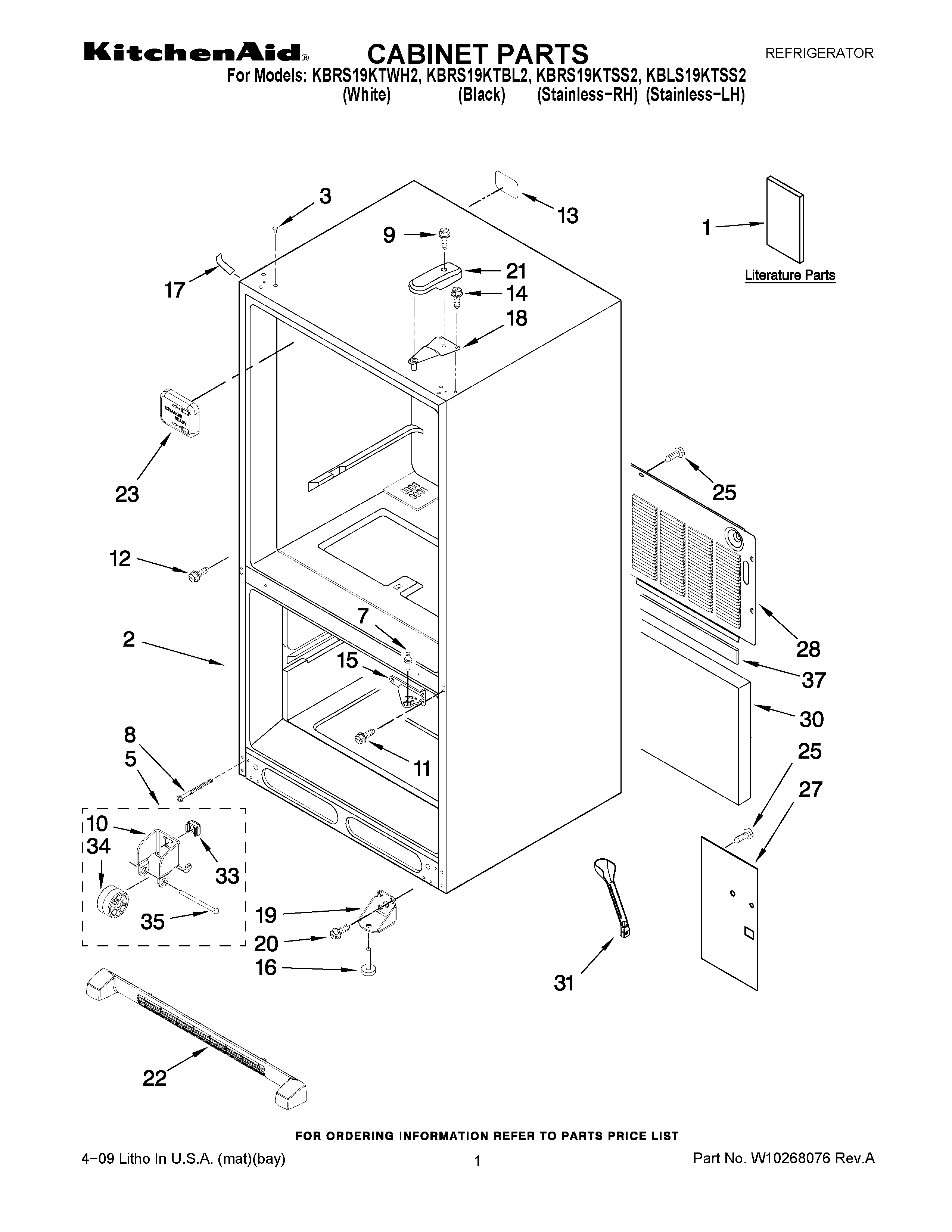

KBRS19KTBL2 01 – CABINET PARTS

Products

Position	Product
1	TECH SHEET
1	Energy Guide
1	Use & Care Guide
2	Cabinet, (Not A Serviceable Part)
3	WP67001130 Whirlpool Refrigerator White Button Plug
3	WP12246608 Whirlpool Refrigerator Button
5	ROLLER ASSY.(REAR)
7	WP67006642 Whirlpool Refrigerator Pin
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	12456801V Whirlpool Refrigerator Bracket
11	WP67006380 Whirlpool Screw
13	W11685757 Whirlpool Label
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607103WD Whirlpool Refrigerator Center Hinge
15	WP12607104ED Whirlpool Refrigerator Door Hinge
16	W11177593 Whirlpool Leveling Feet
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	12587703W Whirlpool Refrigerator Cover
18	WP12566606ED Whirlpool Refrigerator Door Hinge
19	12906303WD Whirlpool Refrigerator Bracket
20	WP98165 Whirlpool Screw
21	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
21	67001014 Whirlpool Refrigerator Top Hinge Cover White
22	WPW10534166 Whirlpool Refrigerator Front Grille
22	WPW10534167 Whirlpool Refrigerator Front Grille
23	WP67001098 Whirlpool Refrigerator Tube Cover
25	67006425 Whirlpool Refrigerator Screw
27	W11684617 Whirlpool Valve Cover
28	W10210978 Whirlpool Refrigerator Back Cover
30	INSULATION, SOUND
31	W10619951 Whirlpool Drain Tube with Grommet
33	M0286708 Whirlpool Refrigerator Holder Nut Assembly
34	WP10450603 Whirlpool Refrigerator Roller
35	Pin
37	Gasket
