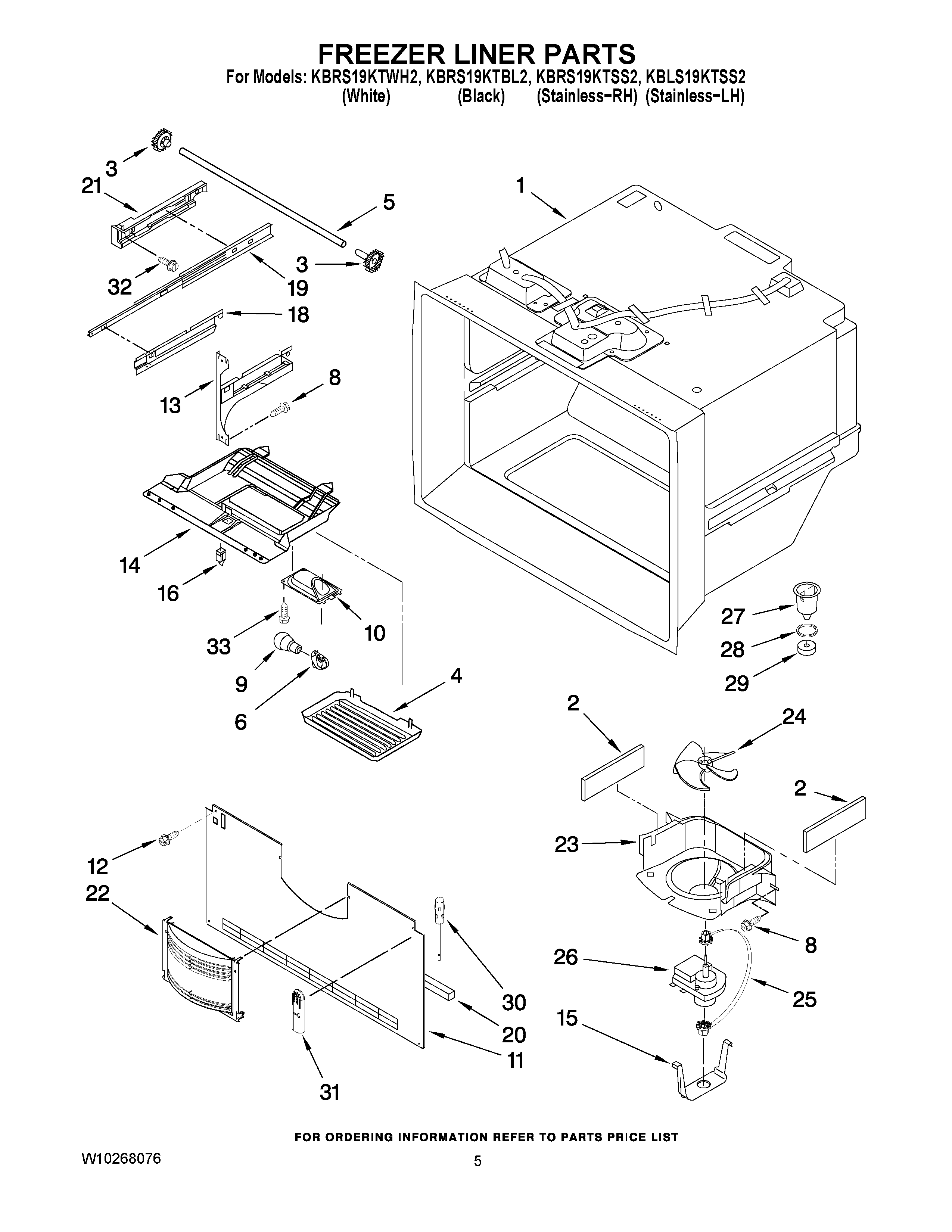

KBRS19KTBL2 03 – FREEZER LINER PARTS

Products

Position	Product
NI	Harness, Lights (Freezer)
1	Liner (Not A Seviceable Part)
2	W10856123 Whirlpool Refrigerator Gasket
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	Cover, Light
5	W10802329 Whirlpool Refrigerator Shaft
6	W11447232 Whirlpool Refrigerator Socket
8	WP98165 Whirlpool Screw
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	W11702858 Whirlpool Housing
11	WPW10308414 Whirlpool Refrigerator Evaporator Cover
12	67006425 Whirlpool Refrigerator Screw
13	WPW10330991 Whirlpool Refrigerator Bracket
13	WPW10330993 Whirlpool Refrigerator Bracket
14	67003906 Whirlpool Refrigerator Control Module
15	CLIP, EVAP (2)
16	W11396033 Whirlpool Refrigerator Rocker Switch
18	WPW10280613 Whirlpool Refrigerator Bracket
18	WPW10280608 Whirlpool Refrigerator Bracket
19	W11658402 Whirlpool Drawer Slide Rail
20	A3189394 Whirlpool Refrigerator Gasket
21	WPW10284681 Whirlpool Refrigerator Bracket
21	Adapter, Slide (Left)
22	WPW10175909 Whirlpool Grille Assembly
23	WPW10167023 Whirlpool Refrigerator Shroud
24	WP2169142 Whirlpool Fan Blade
25	W10121318 Whirlpool Refrigerator Grommet
26	WPW10128551 Whirlpool Evaporator Fan Motor
27	W10815413 Whirlpool Refrigerator Funnel
28	WPM0500703 Whirlpool Refrigerator O-Ring Seal
29	WPB8381501 Whirlpool Refrigerator Door Gasket
30	12002355 Whirlpool Refrigerator Thermistor Kit
31	WP67003924 Whirlpool Refrigerator Cover
32	WP489474 Whirlpool Refrigerator Screw
33	WP90767 Whirlpool Screw
