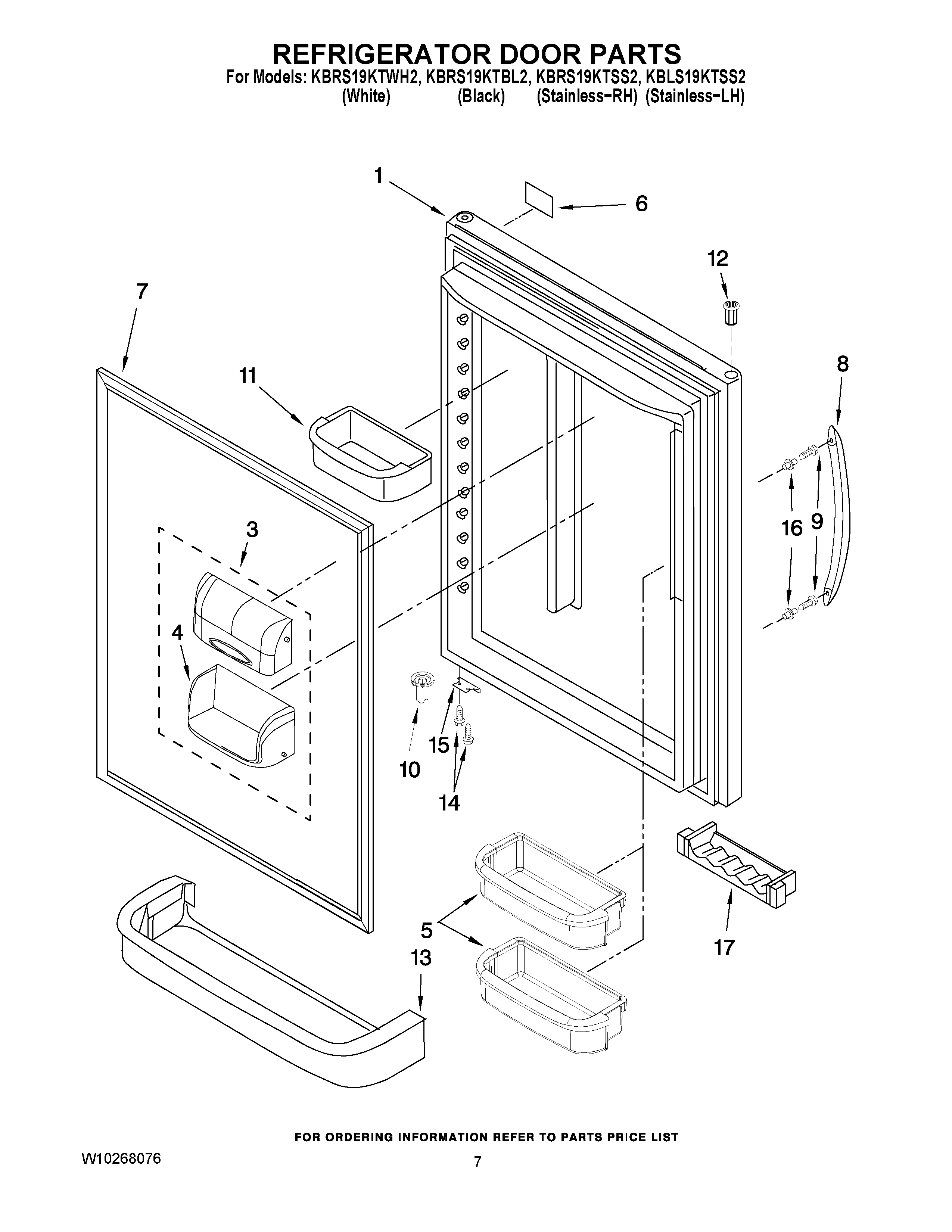

KBRS19KTBL2 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, REF (STAINLESS)(LH)
1	DOOR, REF (STAINLESS)(RH)
1	DOOR, REFRIGERATOR (WHITE)
1	DOOR, REFRIGERATOR (BLACK)
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	NAMEPLATE
6	WPW10243392 Whirlpool Dishwasher Nameplate
6	WPW10243393 Whirlpool Dishwasher Nameplate
7	WPW10436245 Whirlpool Refrigerator FIP Gasket
7	WPW10443309 Whirlpool Refrigerator Door Gasket
8	Handle, Door (Black)
8	WPW10314517K Whirlpool Refrigerator Handle
8	WPW10314515 Whirlpool Refrigerator Handle
10	WP67003639 Whirlpool Refrigerator Closer
10	WP67003638 Whirlpool Closing Cam
11	BUCKET, SHELF (1) (SMALL)
12	67004978 Whirlpool Refrigerator Black Door Bushing
12	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
13	Retainer, Door
14	WP98165 Whirlpool Screw
15	12968202W Whirlpool Refrigerator Door Stop
15	W11708403 Whirlpool Door Stop
16	WP67006113 Whirlpool Stud Bolt
17	WP67005626 Whirlpool Refrigerator Can Caddy
