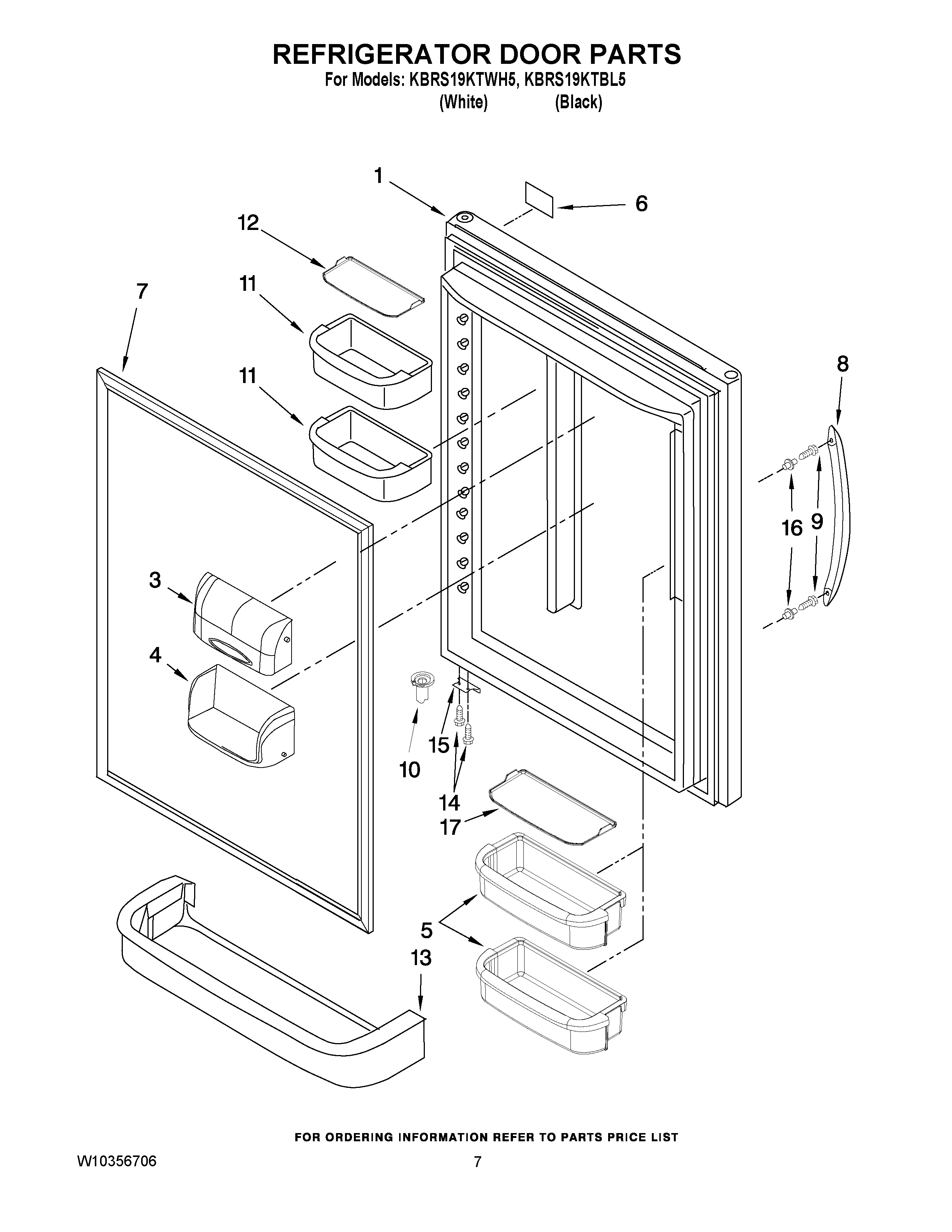

KBRS19KTBL5 04 – REFRIGERATOR DOOR PARTS

KBRS19KTBL5 04 – REFRIGERATOR DOOR PARTS

Written by

in

KBRS19KTBL5 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (BLACK)
112658573WQ Whirlpool Refrigerator DOR-FIP White
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6WPW10243393 Whirlpool Dishwasher Nameplate
6WPW10243392 Whirlpool Dishwasher Nameplate
7WPW10436245 Whirlpool Refrigerator FIP Gasket
7WPW10443309 Whirlpool Refrigerator Door Gasket
8HANDLE, DOOR (BLACK)
8WPW10314515 Whirlpool Refrigerator Handle
9SCREW
10WP67003639 Whirlpool Refrigerator Closer
10WP67003638 Whirlpool Closing Cam
11WPW10351081 Whirlpool Refrigerator Cantilever Bin
12W11408990 Whirlpool Refrigerator Mat
1367001139 Whirlpool Refrigerator Shelf Trim
14WP98165 Whirlpool Screw
15W11708403 Whirlpool Door Stop
1512968202W Whirlpool Refrigerator Door Stop
16WP67006113 Whirlpool Stud Bolt
17WPW10450021 Whirlpool Refrigerator Mat
