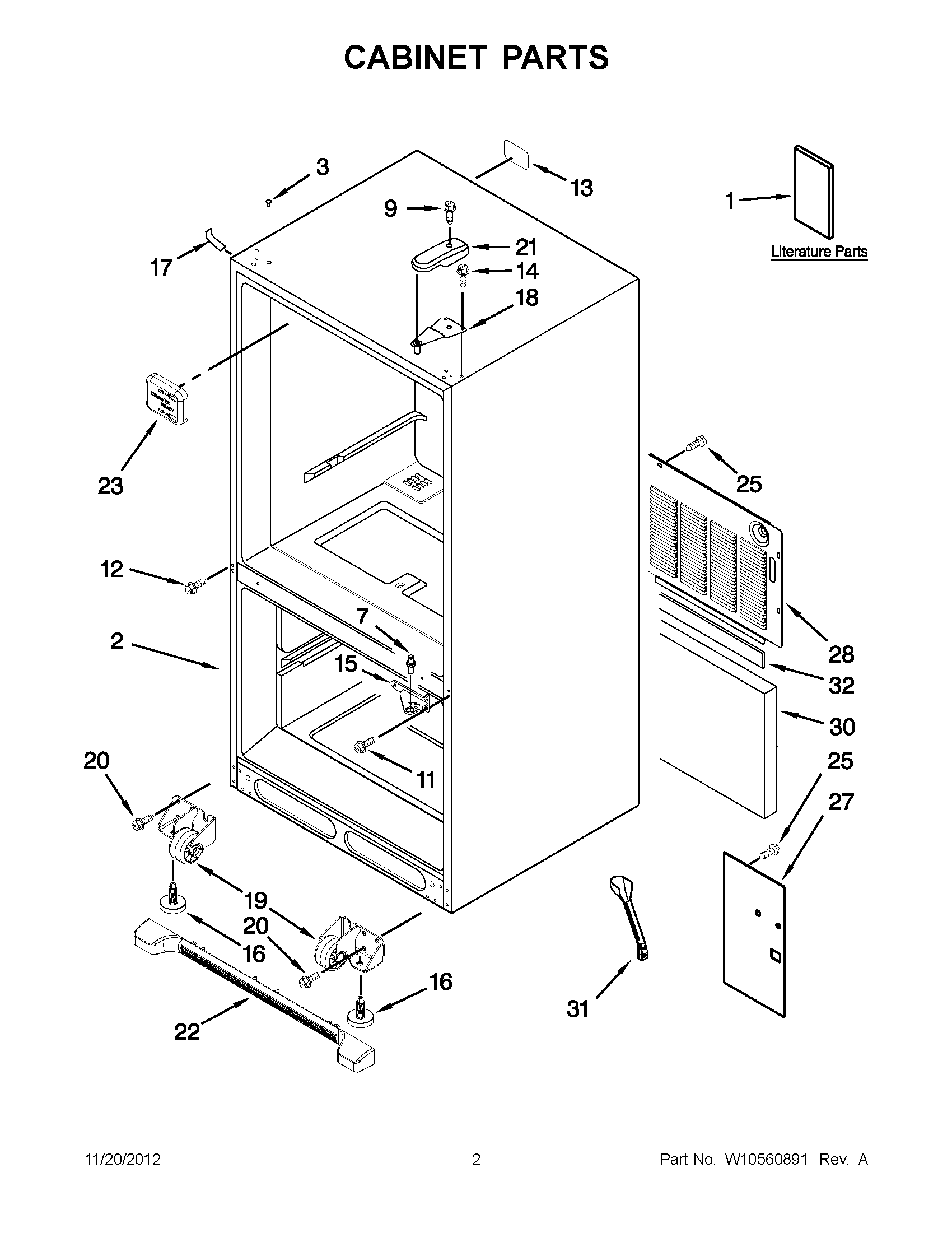

KBRS19KTBL7 01 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1Energy Guide
1USE & CARE GUIDE
2CABINET (NOT A SERVICEABLE PART)
3WP12246608 Whirlpool Refrigerator Button
3WP67001130 Whirlpool Refrigerator White Button Plug
7WP67006642 Whirlpool Refrigerator Pin
9WP8281196 Whirlpool Screw
11WP67006380 Whirlpool Screw
13W11685757 Whirlpool Label
14WP489349 Whirlpool Refrigerator Screw
15WP12607104ED Whirlpool Refrigerator Door Hinge
15WP12607103WD Whirlpool Refrigerator Center Hinge
16WPW10141622 Whirlpool Leveler
1712587703W Whirlpool Refrigerator Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18WP12566606ED Whirlpool Refrigerator Door Hinge
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19WPW10515762 Whirlpool Refrigerator Cabinet Roller
20WP98165 Whirlpool Screw
2167001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
2167001014 Whirlpool Refrigerator Top Hinge Cover White
22WPW10534166 Whirlpool Refrigerator Front Grille
22WPW10534167 Whirlpool Refrigerator Front Grille
23WP67001098 Whirlpool Refrigerator Tube Cover
2567006425 Whirlpool Refrigerator Screw
27W11684617 Whirlpool Valve Cover
28W10210978 Whirlpool Refrigerator Back Cover
30INSULATION, SOUND
31W10619951 Whirlpool Drain Tube with Grommet
32B5759655 Whirlpool Refrigerator Gasket
