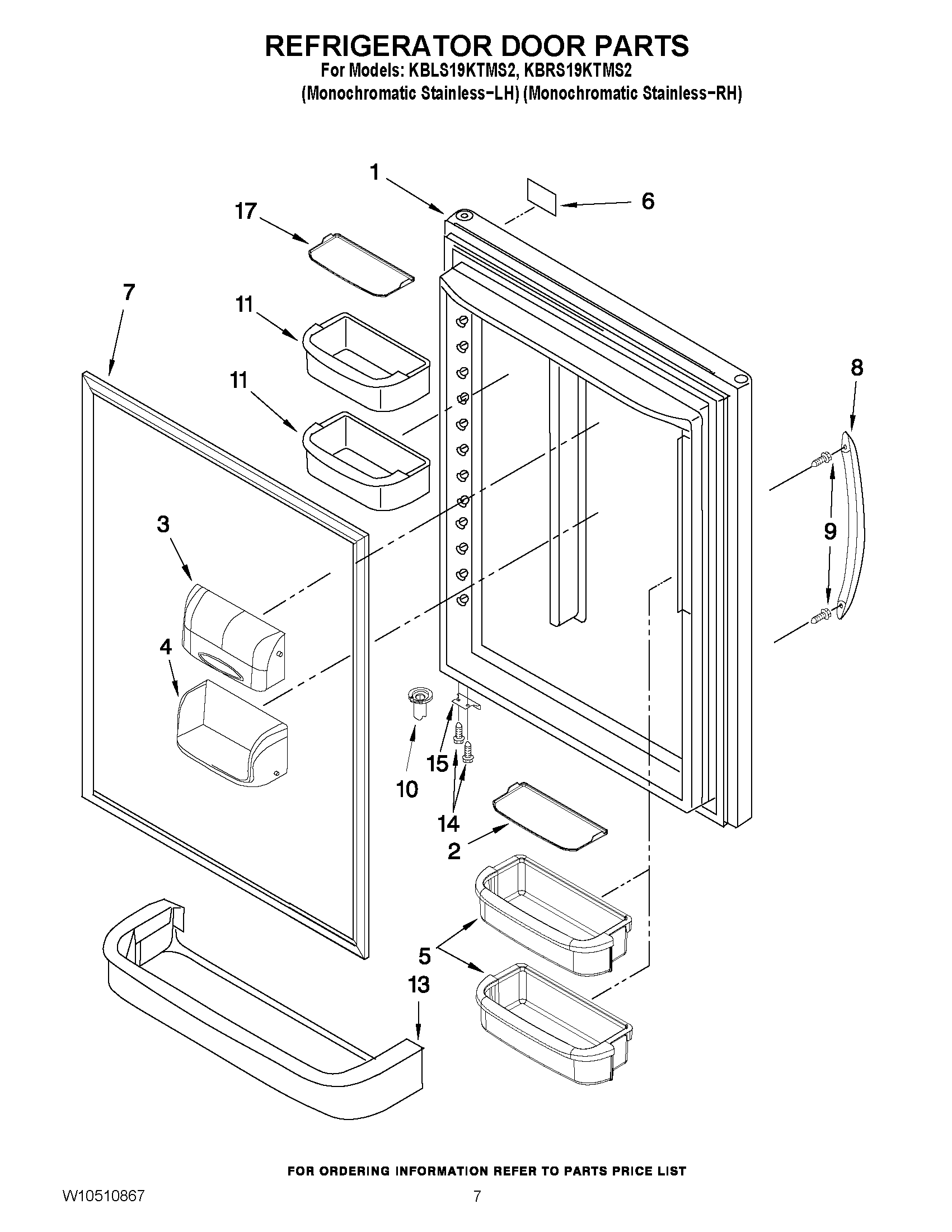

KBRS19KTMS2 04 – REFRIGERATOR DOOR PARTS

KBRS19KTMS2 04 – REFRIGERATOR DOOR PARTS

Written by

in

KBRS19KTMS2 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
113107539SQ Whirlpool Refrigerator DOR FIP Metal Silver
113107541SQ Whirlpool Refrigerator DOR-FIP MS
2WPW10450021 Whirlpool Refrigerator Mat
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6WPW10243391 Whirlpool Refrigerator Nameplate
7W11676571 Whirlpool Refrigerator FIP Gasket
8WPW10314517K Whirlpool Refrigerator Handle
9WPW10661886 Whirlpool Refrigerator Door Handle Screw
10WP12028505AP Whirlpool Closing Cam
11WPW10351081 Whirlpool Refrigerator Cantilever Bin
1367001139 Whirlpool Refrigerator Shelf Trim
14WP98165 Whirlpool Screw
15W11401472 Whirlpool Refrigerator Door Stop
17W11408990 Whirlpool Refrigerator Mat
