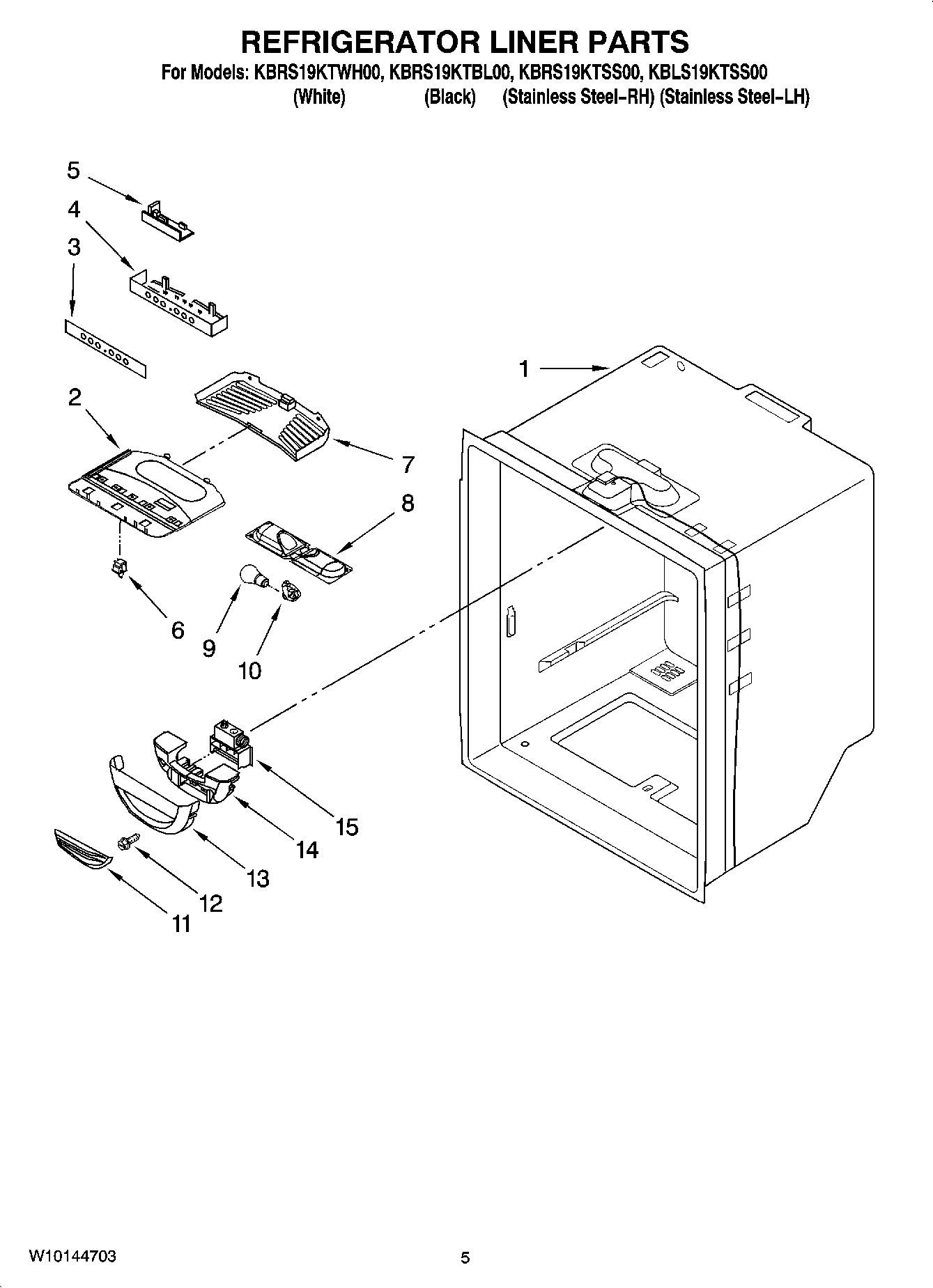

KBRS19KTSS00 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Housing, Ref. Light
3Overlay
4WPW10464769 Whirlpool Refrigerator Housing
5WPW10503278 Whirlpool Refrigerator Electronic Control Board
6W11384469 Whirlpool Door Switch
7W11284721 Whirlpool Refrigerator Cover
812806601 Whirlpool Refrigerator Light Housing
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15WPW10196393 Whirlpool Control Damper
15Harness, Damper Control
15Following Parts Not Illustrated
15W11619328 Whirlpool Wire Harness
