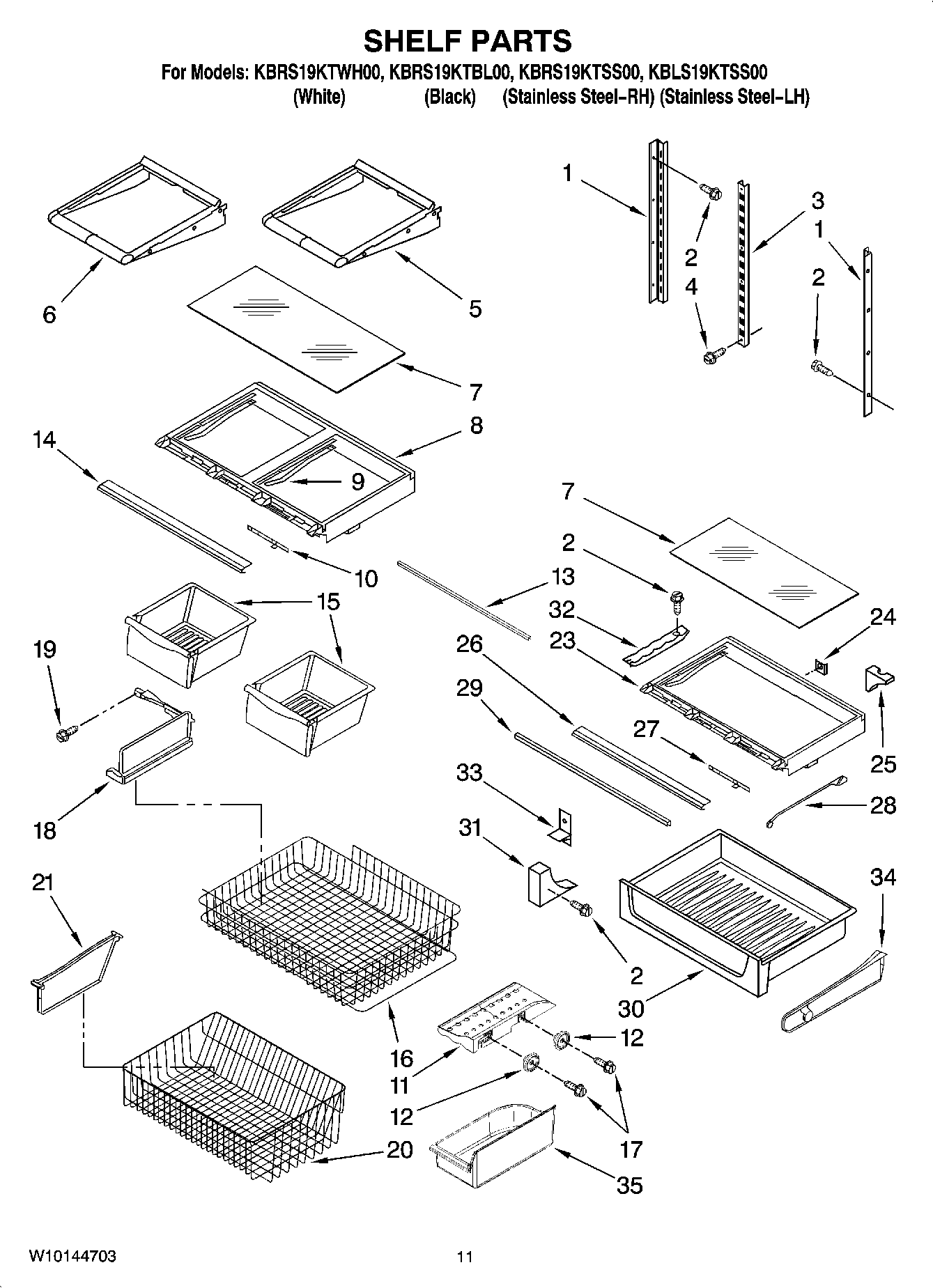

KBRS19KTSS00 06 – SHELF PARTSadmin2025-04-26T09:37:48+00:00KBRS19KTSS00 06 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | Ladder, Side |
| 2 | 67006425 Whirlpool Refrigerator Screw |
| 3 | 67001073 Whirlpool Refrigerator Center Ladder |
| 4 | W10709795 Whirlpool Refrigerator Screw |
| 5 | Shelf, Sta (2) |
| 6 | Shelf, Glide (2) |
| 7 | WP67006877 Whirlpool Refrigerator Glass Shelf |
| 9 | RAIL-CENTR CRISPER |
| 10 | SLIDE |
| 11 | Rack, Ice |
| 12 | WP10972101 Whirlpool Refrigerator Spacer |
| 13 | Whirlpool Refrigerator Shelf Support Liner |
| 14 | Trim, Crisper |
| 15 | W10833528 Whirpool Refrigerator Crisper Pan |
| 16 | Basket, Freezer (Upper) |
| 17 | WP67006908 Whirlpool Refrigerator Screw |
| 18 | Divider, Upper Basket |
| 19 | Screw |
| 20 | W10503182 Whirlpool Refrigerator Freezer Basket |
| 21 | Divider, Lower Basket |
| 23 | WPW10671240 Whirlpool Refrigerator Frame |
| 24 | Gasket, Pantry |
| 25 | WP12531601 Whirlpool Refrigerator Tunnel |
| 26 | W10656984 Whirlpool Refrigerator Shelf Trim |
| 27 | 67002002 Whirlpool Refrigerator Pantry Slide |
| 28 | Rod, Temperature Control |
| 29 | WP12227303WD Whirlpool Refrigerator Crisper Brace |
| 30 | W10328331 Whirlpool Refrigerator Utility Pan |
| 31 | WP67001722 Whirlpool Refrigerator Support |
| 31 | WP67001721 Whirlpool Refrigerator Support |
| 32 | WP67001719 Whirlpool Refrigerator Track |
| 33 | WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook |
| 34 | Divider, Pantry |
| 35 | WP67001255 Whirlpool Ice Bucket |
