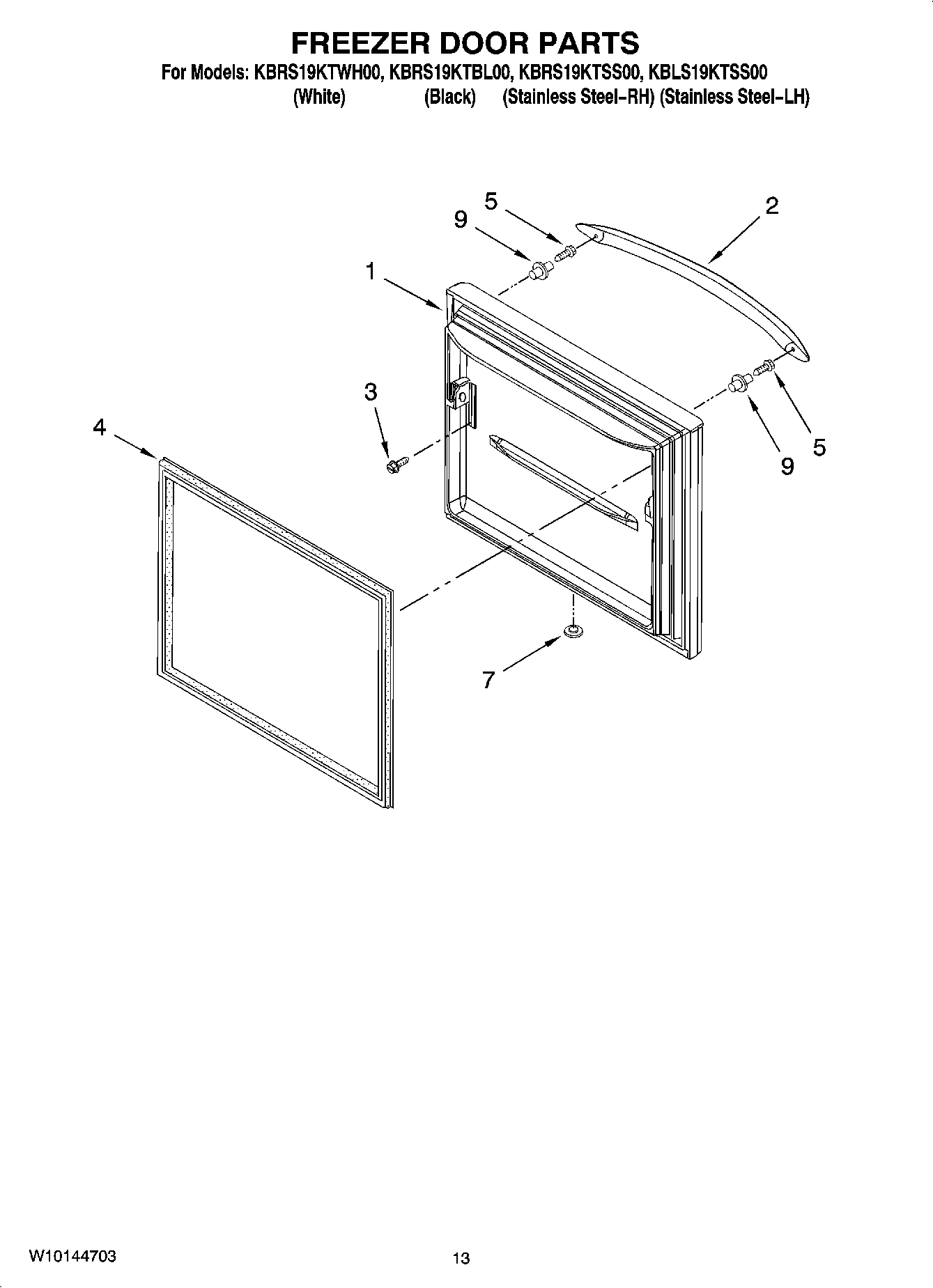

KBRS19KTSS00 07 – FREEZER DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

KBRS19KTSS00 07 – FREEZER DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KBRS19KTSS00 07 – FREEZER DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL 799833
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
D7824706Q Whirlpool Refrigerator Ice Maker Assembly
ACCESSORIES
FIELD INSTALLABLE ICE MAKER
4396418 Whirlpool Ice Maker
TORX SCREW WRENCH
Miscellaneous
ACCESSORY PARTS, STAINLESS STEEL CLEANER & POLISH
Enamel, Black (1 Qt. Uncut)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
833938 Whirlpool Refrigerator Terminal
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
TAPE, VINYL (3/4 X 108“)
Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
1Freezer Door (w/ Insulation) (Stainless Steel)
1Freezer Door (w/ Insulation) (Black)
1Freezer Door (w/ Insulation) (White)
2WPW10314515 Whirlpool Refrigerator Handle
2Handle, Door (Black)
2WPW10314517K Whirlpool Refrigerator Handle
312991101 Whirlpool Refrigerator Screw
4WPW10436247 Whirlpool Refrigerator FIP Gasket
4GASKET-FIP
5WP3387230 Whirlpool Screw
710712401 Whirlpool Refrigerator Vent Plug (White)
767004838 Whirlpool Refrigerator Button Vent Plug
9Stud, Handle
