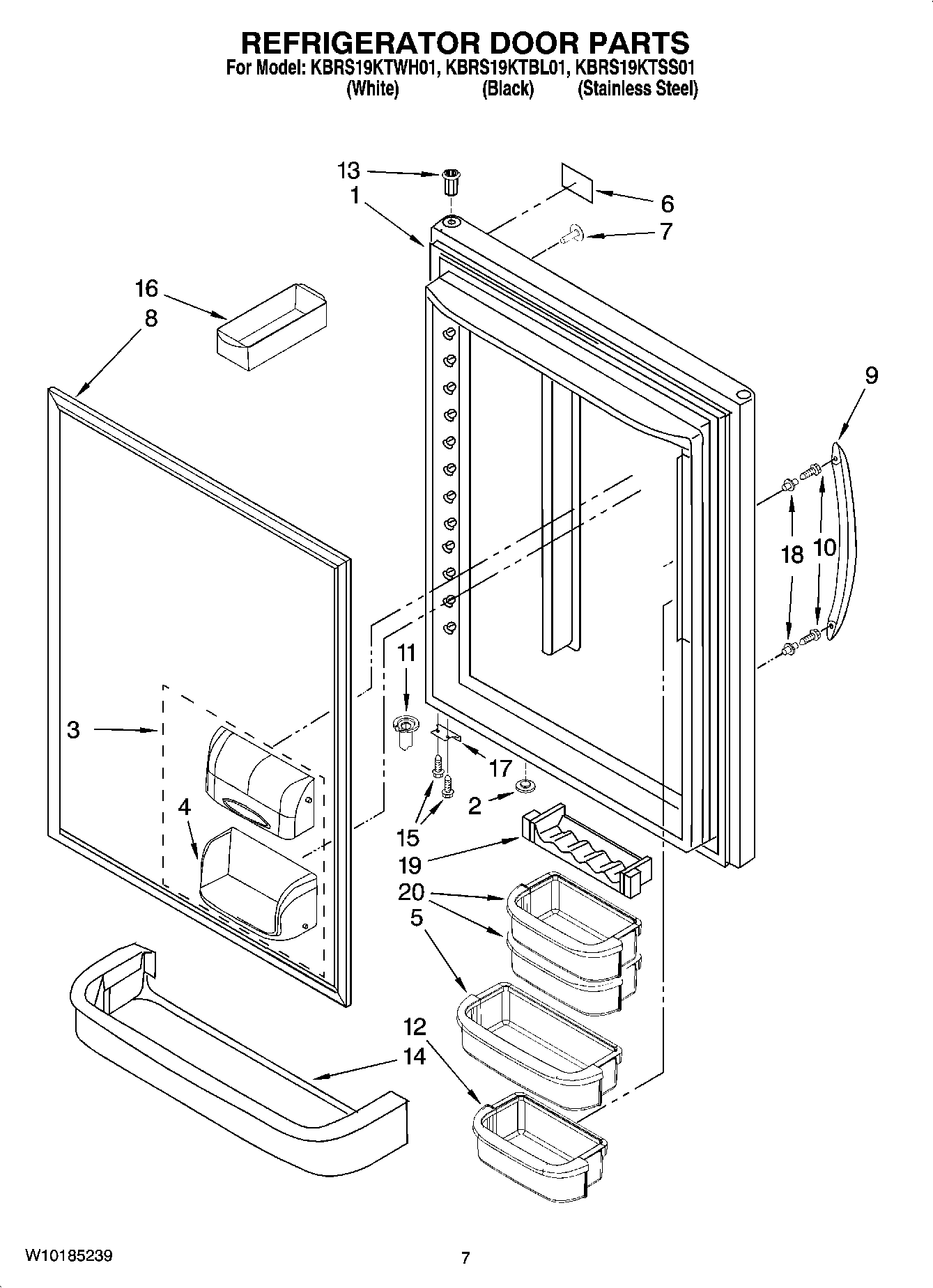

KBRS19KTSS01 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (w/ Insulation) (Black)
1	Refrigerator Door (w/ Insulation) (Stainless Steel)
1	Refrigerator Door (w/ Insulation) (White)
2	10712401 Whirlpool Refrigerator Vent Plug (White)
2	67004838 Whirlpool Refrigerator Button Vent Plug
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	NAMEPLATE
6	WPW10243392 Whirlpool Dishwasher Nameplate
6	WPW10243393 Whirlpool Dishwasher Nameplate
7	WP67001130 Whirlpool Refrigerator White Button Plug
7	WP12246608 Whirlpool Refrigerator Button
8	WPW10443309 Whirlpool Refrigerator Door Gasket
8	WPW10436245 Whirlpool Refrigerator FIP Gasket
9	Handle, Door (Black)
9	WPW10314517K Whirlpool Refrigerator Handle
9	WPW10314515 Whirlpool Refrigerator Handle
10	WP3387230 Whirlpool Screw
11	WP67003639 Whirlpool Refrigerator Closer
11	WP67003638 Whirlpool Closing Cam
12	Bucket (1) (Short)
13	67004978 Whirlpool Refrigerator Black Door Bushing
13	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
14	Retainer, Door
15	WP98165 Whirlpool Screw
16	W10136387A Whirlpool Refrigerator Egg Container
17	W11708403 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
18	WP67006113 Whirlpool Stud Bolt
19	WP67005626 Whirlpool Refrigerator Can Caddy
20	WPW10351081 Whirlpool Refrigerator Cantilever Bin
