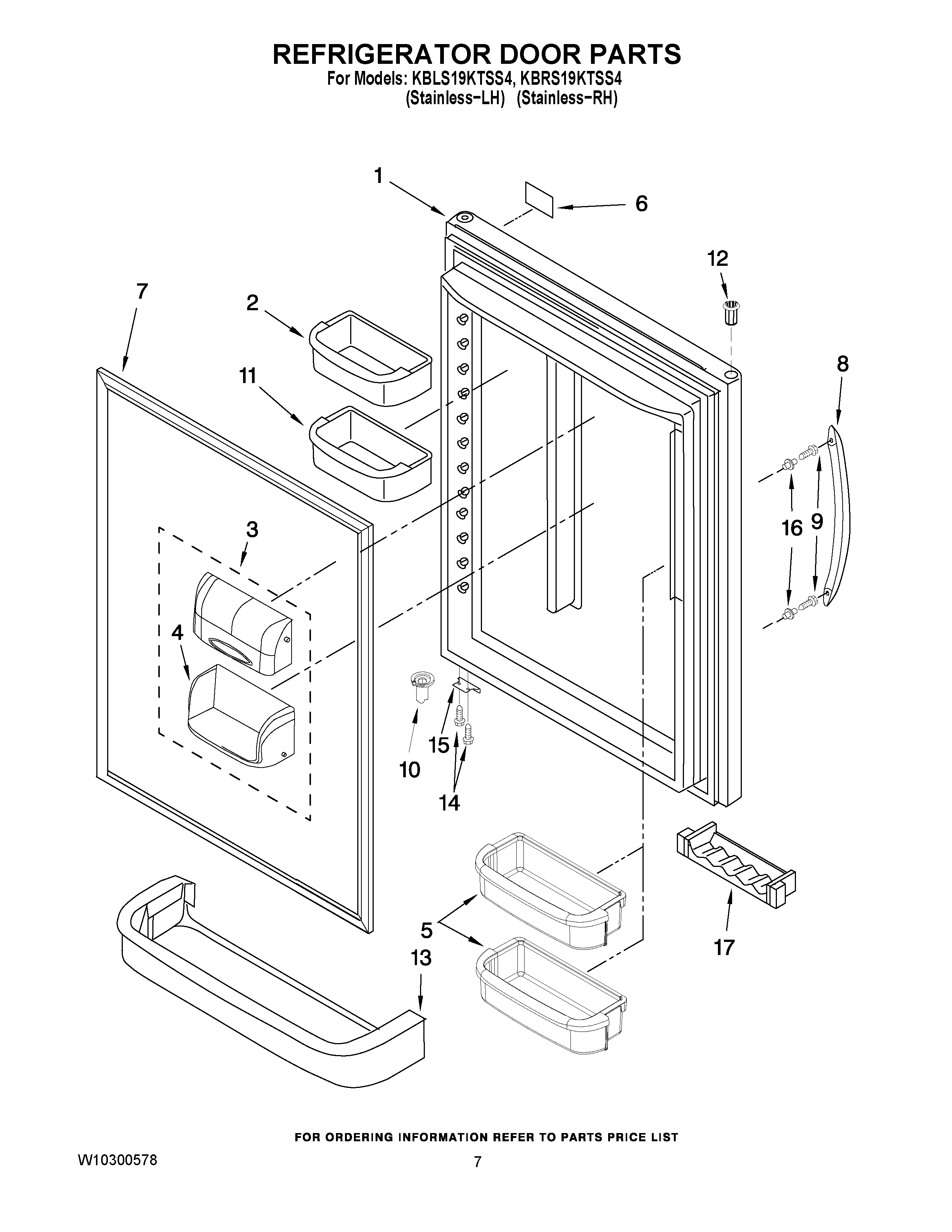

KBRS19KTSS4 04 – REFRIGERATOR DOOR PARTS

KBRS19KTSS4 04 – REFRIGERATOR DOOR PARTS

Written by

in

KBRS19KTSS4 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (STAINLESS STEEL-RH)
1DOOR, REFRIGERATOR (STAINLESS-LH) (STAINLESS-RH)
2BUCKET, SHORT
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6NAMEPLATE
7WPW10436247 Whirlpool Refrigerator FIP Gasket
8WPW10314517K Whirlpool Refrigerator Handle
9WP3387230 Whirlpool Screw
10WP67003639 Whirlpool Refrigerator Closer
11WPW10351081 Whirlpool Refrigerator Cantilever Bin
1267004978 Whirlpool Refrigerator Black Door Bushing
13Retainer, Door
14WP98165 Whirlpool Screw
15W11708403 Whirlpool Door Stop
16MOUNT, HANDLE
17WP67005626 Whirlpool Refrigerator Can Caddy
