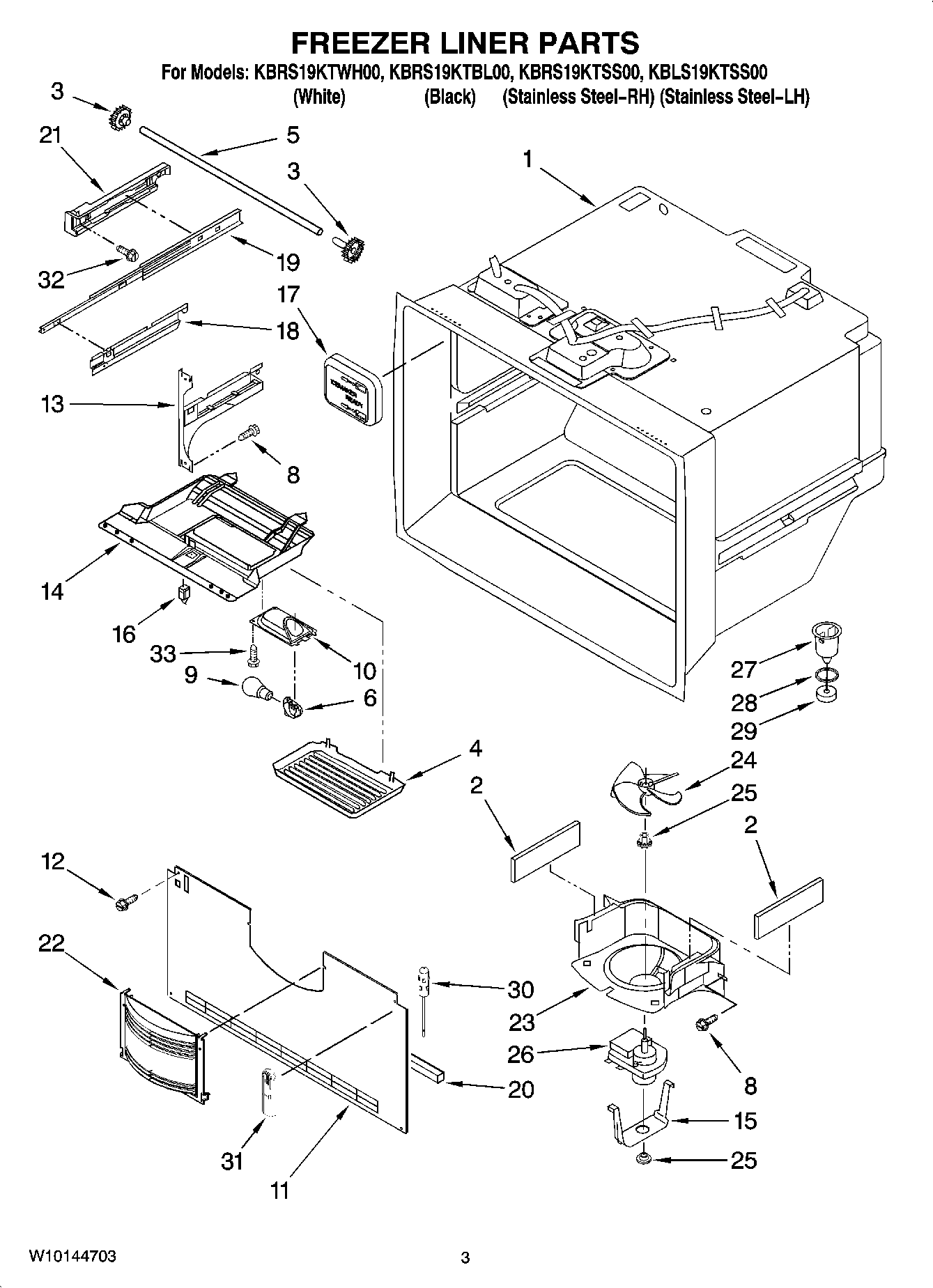

KBRS19KTWH00 02 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
2W10856123 Whirlpool Refrigerator Gasket
312002497 Whirlpool Refrigerator Drawer Gear Kit
4Cover, Light
5W10802329 Whirlpool Refrigerator Shaft
6W11447232 Whirlpool Refrigerator Socket
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10Housing, Light
11WPW10308414 Whirlpool Refrigerator Evaporator Cover
12WP33001882 Whirlpool Screw
13Bracket, Door (Right)
13Bracket, Door (Left)
1467003906 Whirlpool Refrigerator Control Module
15WP67005633 Whirlpool Refrigerator Bracket
16W11396033 Whirlpool Refrigerator Rocker Switch
17WP67001098 Whirlpool Refrigerator Tube Cover
18WPW10280613 Whirlpool Refrigerator Bracket
18WPW10280608 Whirlpool Refrigerator Bracket
19Slide, Drawer (2)
20A3189394 Whirlpool Refrigerator Gasket
21Bracket, Slide (Right)
21Bracket, Slide (Left)
22WPW10175909 Whirlpool Grille Assembly
23Shroud, Evap.Fan
24WP2169142 Whirlpool Fan Blade
25WP67002780 Whirlpool Refrigerator Grommet
26WPW10128551 Whirlpool Evaporator Fan Motor
27W10815413 Whirlpool Refrigerator Funnel
28WPM0500703 Whirlpool Refrigerator O-Ring Seal
29WPB8381501 Whirlpool Refrigerator Door Gasket
3012002355 Whirlpool Refrigerator Thermistor Kit
31WP67003924 Whirlpool Refrigerator Cover
32WP489474 Whirlpool Refrigerator Screw
33Harness, Damper Control
33W10709797 Whirlpool Refrigerator Screw
33Following Parts Not Illustrated
