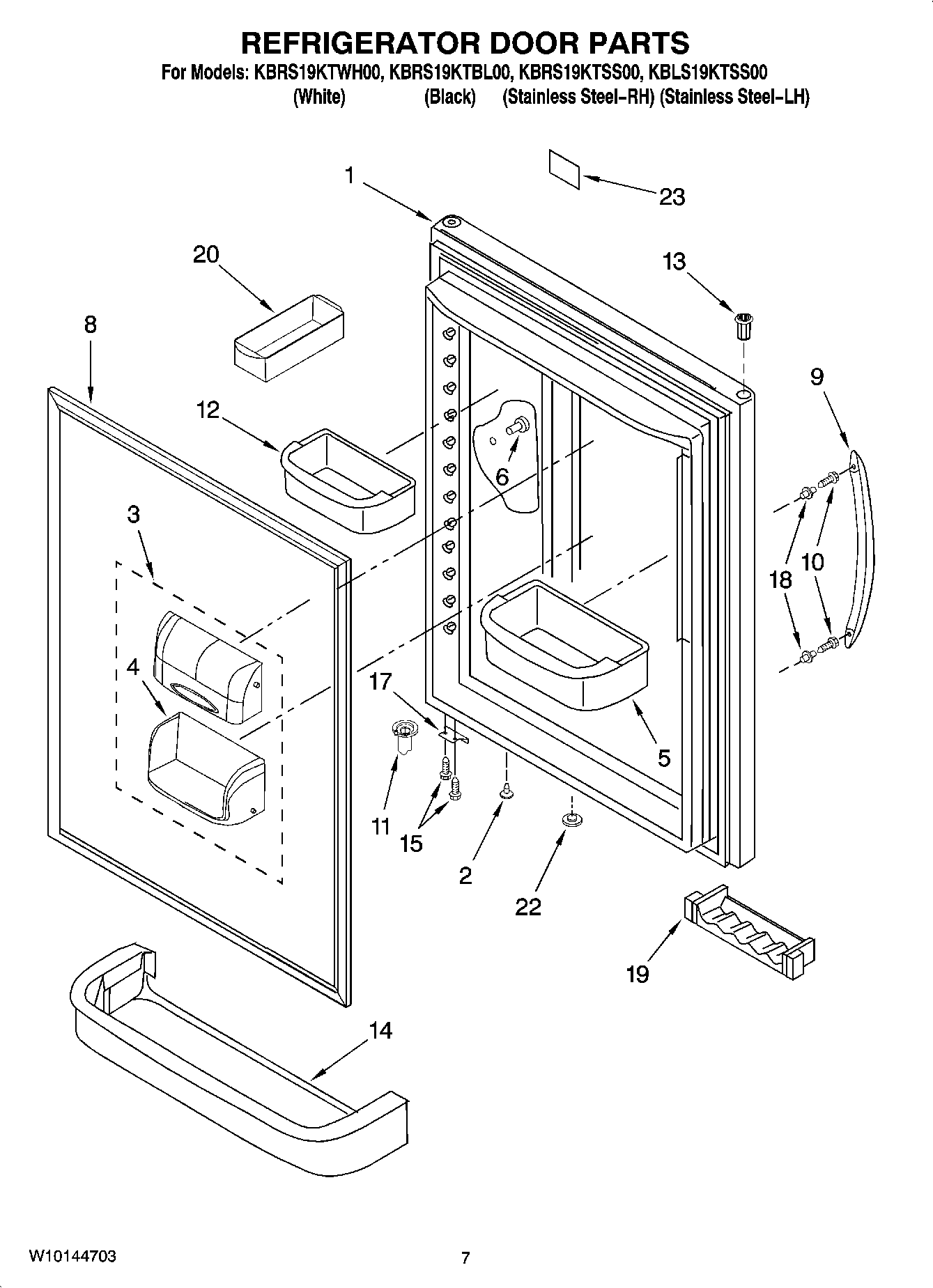

KBRS19KTWH00 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (w/ Insulation) (Stainless Steel-LH)
1	Refrigerator Door (w/ Insulation) (Stainless Steel-RH)
1	Refrigerator Door (w/ Insulation) (Black)
1	Refrigerator Door (w/ Insulation) (White)
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	WP67001130 Whirlpool Refrigerator White Button Plug
6	WP12246608 Whirlpool Refrigerator Button
8	WPW10443309 Whirlpool Refrigerator Door Gasket
8	WPW10436245 Whirlpool Refrigerator FIP Gasket
9	WPW10314517K Whirlpool Refrigerator Handle
9	Handle, Door (Black)
9	WPW10314515 Whirlpool Refrigerator Handle
10	67006806 Whirlpool Refrigerator Screw HI Torque Black
11	WP67003638 Whirlpool Closing Cam
11	WP67003639 Whirlpool Refrigerator Closer
12	WPW10351081 Whirlpool Refrigerator Cantilever Bin
13	67004978 Whirlpool Refrigerator Black Door Bushing
13	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
14	Retainer, Door
15	WP98165 Whirlpool Screw
17	12968202W Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
18	Stud, Handle
19	WP67005626 Whirlpool Refrigerator Can Caddy
20	W10136387A Whirlpool Refrigerator Egg Container
22	67004838 Whirlpool Refrigerator Button Vent Plug
22	10712401 Whirlpool Refrigerator Vent Plug (White)
23	WPW10243393 Whirlpool Dishwasher Nameplate
23	WPW10243392 Whirlpool Dishwasher Nameplate
23	NAMEPLATE
