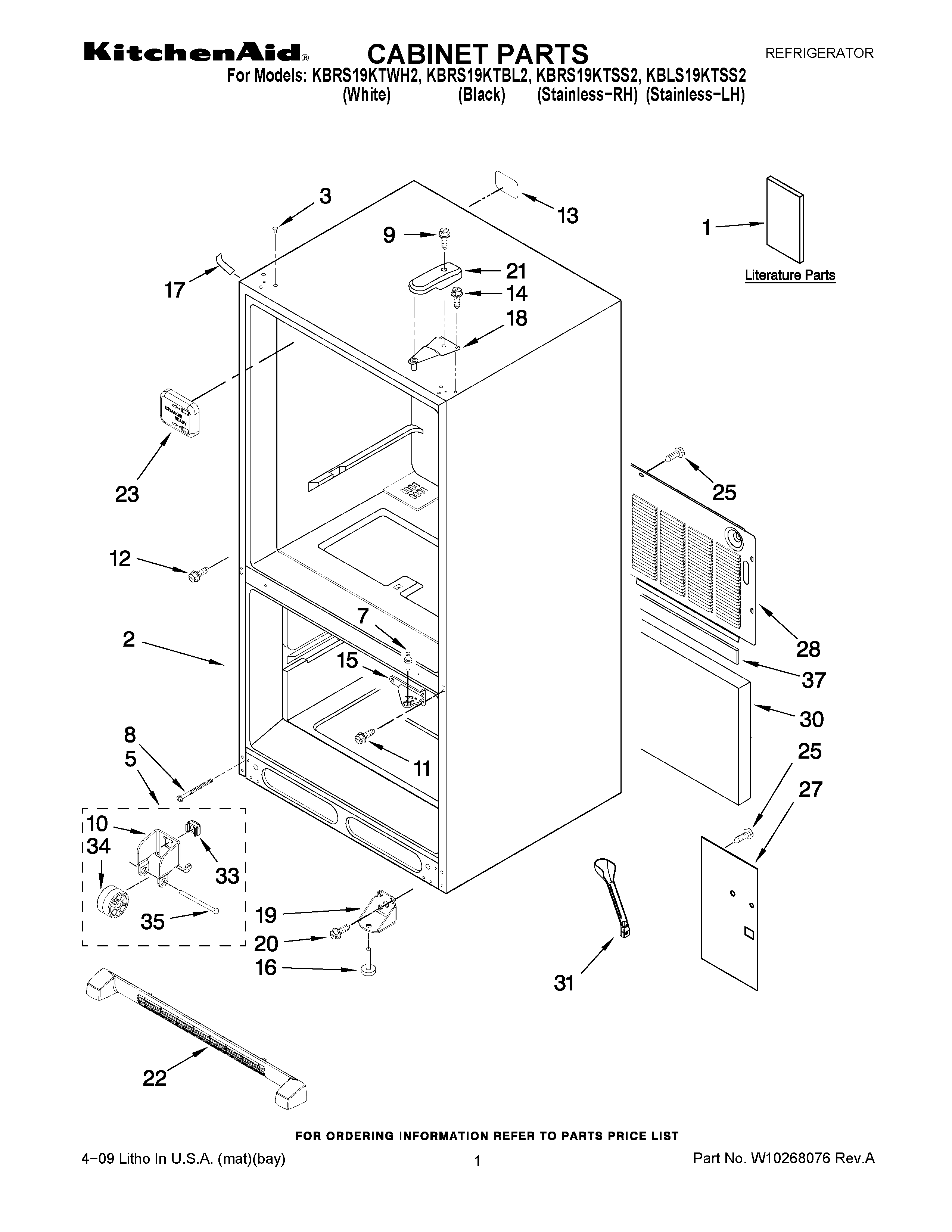

KBRS19KTWH2 01 – CABINET PARTSadmin2025-04-26T09:38:43+00:00KBRS19KTWH2 01 – CABINET PARTS ProductsPositionProduct1TECH SHEET1Energy Guide1Use & Care Guide2Cabinet, (Not A Serviceable Part)3WP67001130 Whirlpool Refrigerator White Button Plug3WP12246608 Whirlpool Refrigerator Button5ROLLER ASSY.(REAR)7WP67006642 Whirlpool Refrigerator Pin871003131 Whirlpool Oven Screw9WP8281196 Whirlpool Screw1012456801V Whirlpool Refrigerator Bracket11WP67006380 Whirlpool Screw13W11685757 Whirlpool Label14WP489349 Whirlpool Refrigerator Screw15WP12607103WD Whirlpool Refrigerator Center Hinge15WP12607104ED Whirlpool Refrigerator Door Hinge16W11177593 Whirlpool Leveling Feet1767003485 Whirlpool Refrigerator Corner Cover (Black)1712587703W Whirlpool Refrigerator Cover18WP12566606ED Whirlpool Refrigerator Door Hinge1912906303WD Whirlpool Refrigerator Bracket20WP98165 Whirlpool Screw2167001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)2167001014 Whirlpool Refrigerator Top Hinge Cover White22WPW10534166 Whirlpool Refrigerator Front Grille22WPW10534167 Whirlpool Refrigerator Front Grille23WP67001098 Whirlpool Refrigerator Tube Cover2567006425 Whirlpool Refrigerator Screw27W11684617 Whirlpool Valve Cover28W10210978 Whirlpool Refrigerator Back Cover30INSULATION, SOUND31W10619951 Whirlpool Drain Tube with Grommet33M0286708 Whirlpool Refrigerator Holder Nut Assembly34WP10450603 Whirlpool Refrigerator Roller35Pin37Gasket
