KBRS20ETBL00 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

KBRS20ETBL00 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KBRS20ETBL00 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL ARI153864A
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI153863A
WPL ARI153861A
Important: The spray paint is not to be used where th
Following Parts Not Illustrated
8003RP Whirlpool Refrigerator 25' 1/4" Copper Water Supply Line Kit
D7824706Q Whirlpool Refrigerator Ice Maker Assembly
CLEANER, (STAINLESS STEEL)
Torx Key
WP542638 Whirlpool Refrigerator Grease
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
WPL ARI153862A
212643 Whirlpool Refrigerator Permagum Sealer
WP505587 Whirlpool Refrigerator Sealer
833938 Whirlpool Refrigerator Terminal
WP503695 Whirlpool Refrigerator Sealer

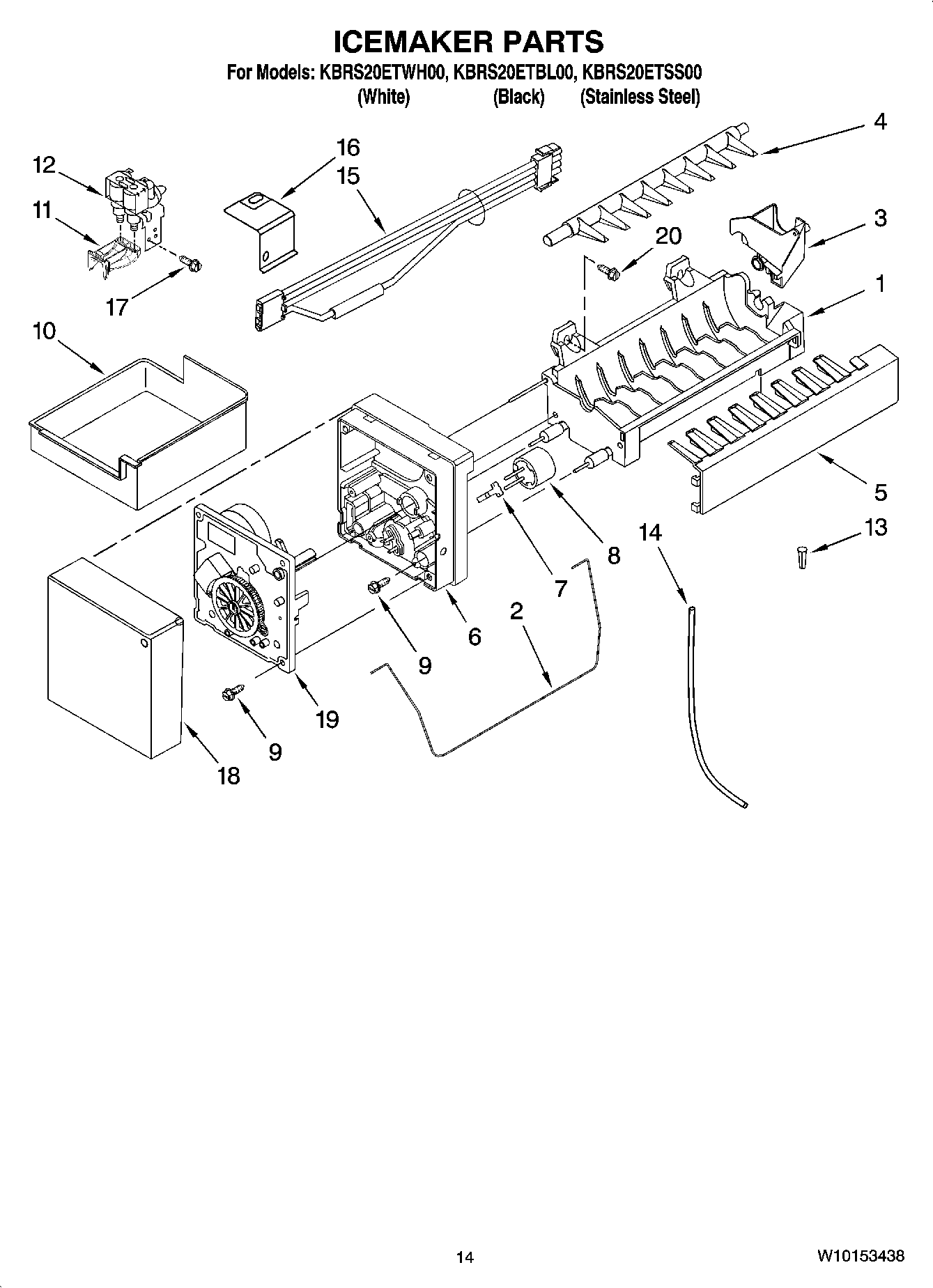

1Mold & Heater Assembly (Not Available Order D7824706Q)
2ARM-SHUT
3WP628356 Whirlpool Refrigerator Fill Cup
4WP627843 Whirlpool Refrigerator Ejector Arm
5WP2182124 Whirlpool Refrigerator Stripper Arm
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
8Thermostat (Not Available Order 4317943)
9WP681249 Whirlpool Screw Assembly
1112831101 Whirlpool Refrigerator Tube Clamp
12WP67006531 Whirlpool Water Inlet Valve
13WPA3223101 Whirlpool Refrigerator Insert PL
14WPB5705307 Whirlpool Refrigerator Tube
15WPD7813010 Whirlpool Refrigerator Wire Harness
16WP2256087 Whirlpool Refrigerator Bracket
17WP489128 Whirlpool Refrigerator Screw
18WPW10289690 Whirlpool Ice Maker Cover
19Module Assembly (Not Available Order D7824706Q)
20WP98165 Whirlpool Screw
