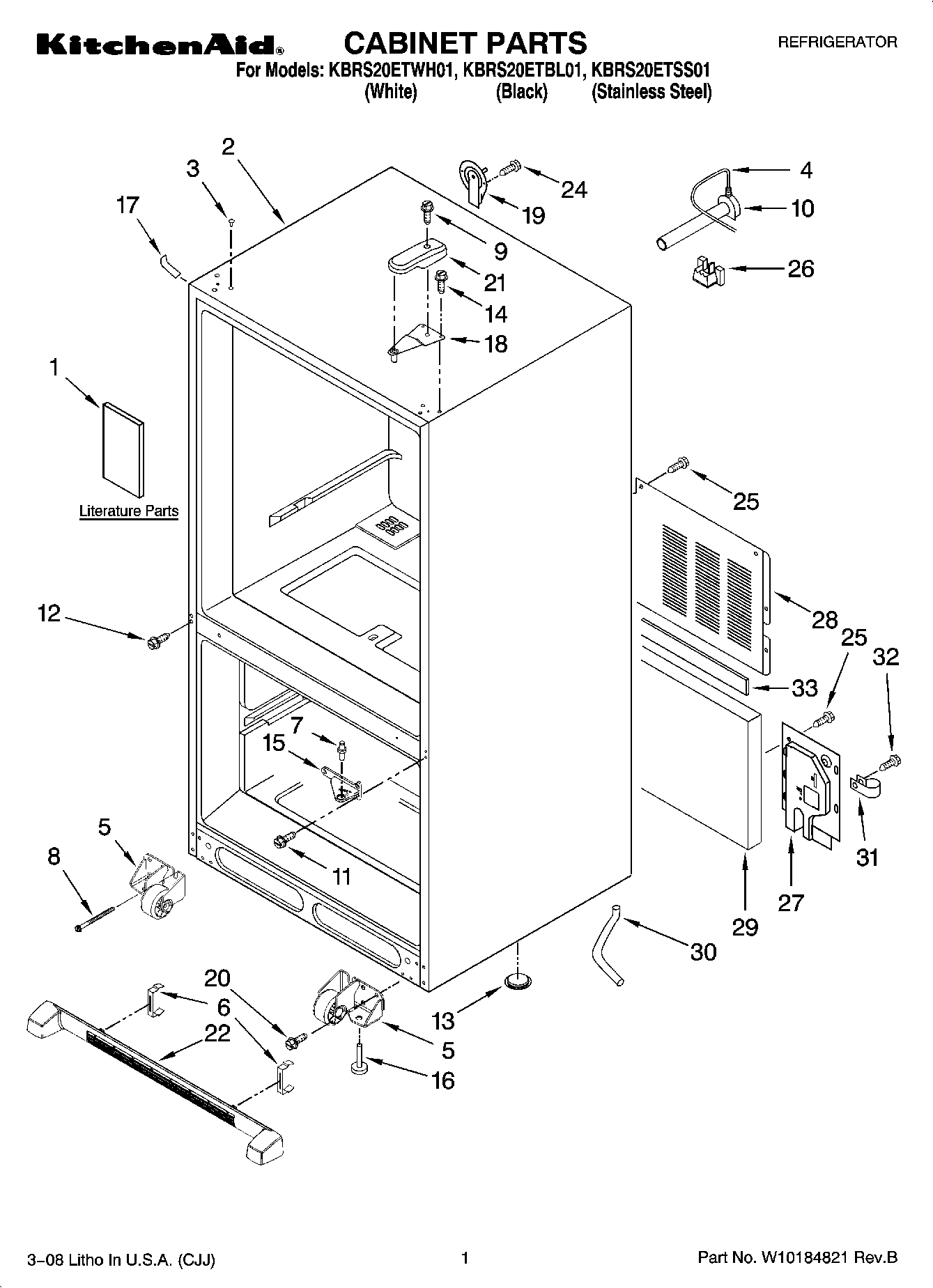

KBRS20ETSS01 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	Energy Tag
1	Tech Sheet
2	Cabinet (Not A Servicable Part)
3	WP67001130 Whirlpool Refrigerator White Button Plug
3	WP12246608 Whirlpool Refrigerator Button
4	WPB5705307 Whirlpool Refrigerator Tube
5	WPW10515762 Whirlpool Refrigerator Cabinet Roller
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
6	Clip, Grille
7	WP67006642 Whirlpool Refrigerator Pin
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	W11176463 Whirlpool Refrigerator Water Tube
11	WP67006380 Whirlpool Screw
13	A3076901 Whirlpool Refrigerator Plug
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607104ED Whirlpool Refrigerator Door Hinge
15	WP12607103WD Whirlpool Refrigerator Center Hinge
16	WPW10141622 Whirlpool Leveler
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	67003484 Whirlpool Refrigerator White Corner Cover
18	WP12566606ED Whirlpool Refrigerator Door Hinge
19	12726003 Whirlpool Refrigerator Water Cover
20	67006564 Whirlpool Refrigerator Screw
21	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
21	67001014 Whirlpool Refrigerator Top Hinge Cover White
22	WPW10131134 Whirlpool Refrigerator Front Grille
22	Grille Assembly (Includes Clips) (White)
24	WP98165 Whirlpool Screw
25	67006425 Whirlpool Refrigerator Screw
26	WP12777701 Whirlpool Refrigerator Filler Block
27	Cover, Water Valve
28	Cover, Unit
29	67003796 Whirlpool Refrigerator Fiber Acoustic
30	W10164397 Whirlpool Refrigerator Drain Tube
31	67001067 Whirlpool Refrigerator Drain Tube Clip
32	WP33001882 Whirlpool Screw
33	Gasket
