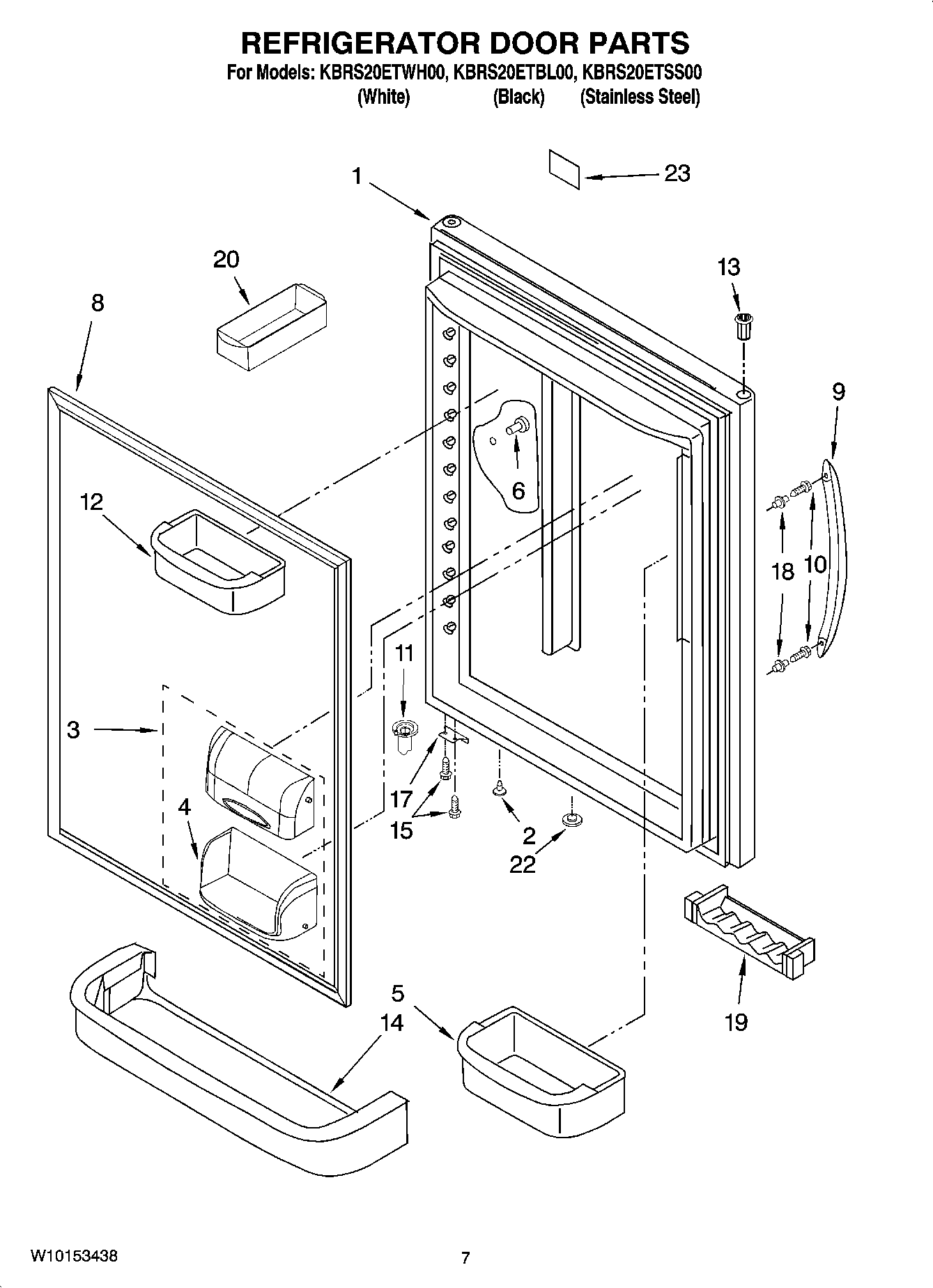

KBRS20ETWH00 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (w/ Insulation) (Stainless Steel)
1	Refrigerator Door (w/ Insulation) (White)
1	Refrigerator Door (w/ Insulation) (Black)
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	Shelf Bin (Medium)
6	WP67001130 Whirlpool Refrigerator White Button Plug
6	WP12246608 Whirlpool Refrigerator Button
8	W10849442 Whirlpool Refrigerator FIP Gasket
8	W10443317 Whirlpool Refrigerator FIP Gasket
9	WP2319727W Whirlpool Refrigerator Handle
9	WP2319727B Whirlpool Refrigerator Handle
9	Handle, Door (Stainless Steel)
10	WP3387230 Whirlpool Screw
11	WP67003639 Whirlpool Refrigerator Closer
11	WP67003638 Whirlpool Closing Cam
12	Shelf Bin (Large)
13	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
13	67004978 Whirlpool Refrigerator Black Door Bushing
14	Trim, Door Shelf
15	WP98165 Whirlpool Screw
17	12968202W Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
18	Stud, Handle
19	WP67005626 Whirlpool Refrigerator Can Caddy
20	W10136387A Whirlpool Refrigerator Egg Container
22	10712401 Whirlpool Refrigerator Vent Plug (White)
22	67004838 Whirlpool Refrigerator Button Vent Plug
23	NAMEPLATE
23	WPW10243393 Whirlpool Dishwasher Nameplate
23	WPW10243392 Whirlpool Dishwasher Nameplate
