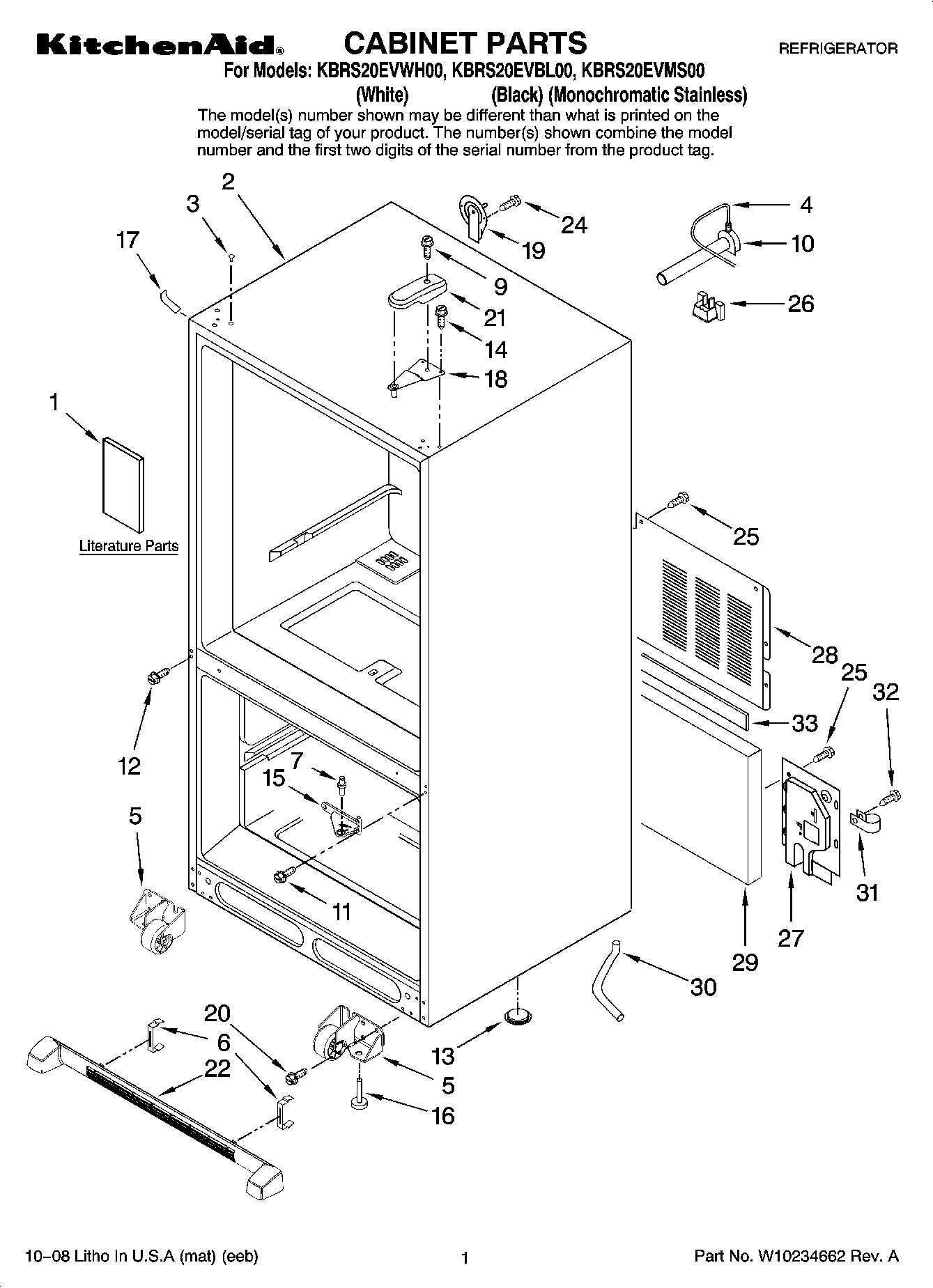

KBRS20EVBL00 01 – CABINET PARTS

Products

PositionProduct
1Energy Guide
1Use & Care Guide
1Tech Sheet
2Cabinet, (Not A Serviceable Part)
3WP67001130 Whirlpool Refrigerator White Button Plug
3WP12246608 Whirlpool Refrigerator Button
4WPB5705307 Whirlpool Refrigerator Tube
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
5WPW10515762 Whirlpool Refrigerator Cabinet Roller
6Clip, Grille
7WP67006642 Whirlpool Refrigerator Pin
9WP8281196 Whirlpool Screw
10W11176463 Whirlpool Refrigerator Water Tube
11WP67006380 Whirlpool Screw
13A3076901 Whirlpool Refrigerator Plug
14WP489349 Whirlpool Refrigerator Screw
15WP12607104ED Whirlpool Refrigerator Door Hinge
1512607103AP Whirlpool Refrigerator Door Hinge
15WP12607103WD Whirlpool Refrigerator Center Hinge
16WPW10141622 Whirlpool Leveler
1767003484 Whirlpool Refrigerator White Corner Cover
17WP12587703AP Whirlpool Refrigerator Filler
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18WP12566606ED Whirlpool Refrigerator Door Hinge
1912726003 Whirlpool Refrigerator Water Cover
2067006564 Whirlpool Refrigerator Screw
2167001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
2167001014 Whirlpool Refrigerator Top Hinge Cover White
21W11106366 Whirlpool Refrigerator Door Hinge
22WPW10131134 Whirlpool Refrigerator Front Grille
22Grille Assembly (Includes Clips) (White)
24WP98165 Whirlpool Screw
2567006425 Whirlpool Refrigerator Screw
26WP12777701 Whirlpool Refrigerator Filler Block
27Cover, Water Valve
28Cover, Unit
2967003796 Whirlpool Refrigerator Fiber Acoustic
30W10164397 Whirlpool Refrigerator Drain Tube
31Clip, Drain Tube
32WP33001882 Whirlpool Screw
33Gasket
