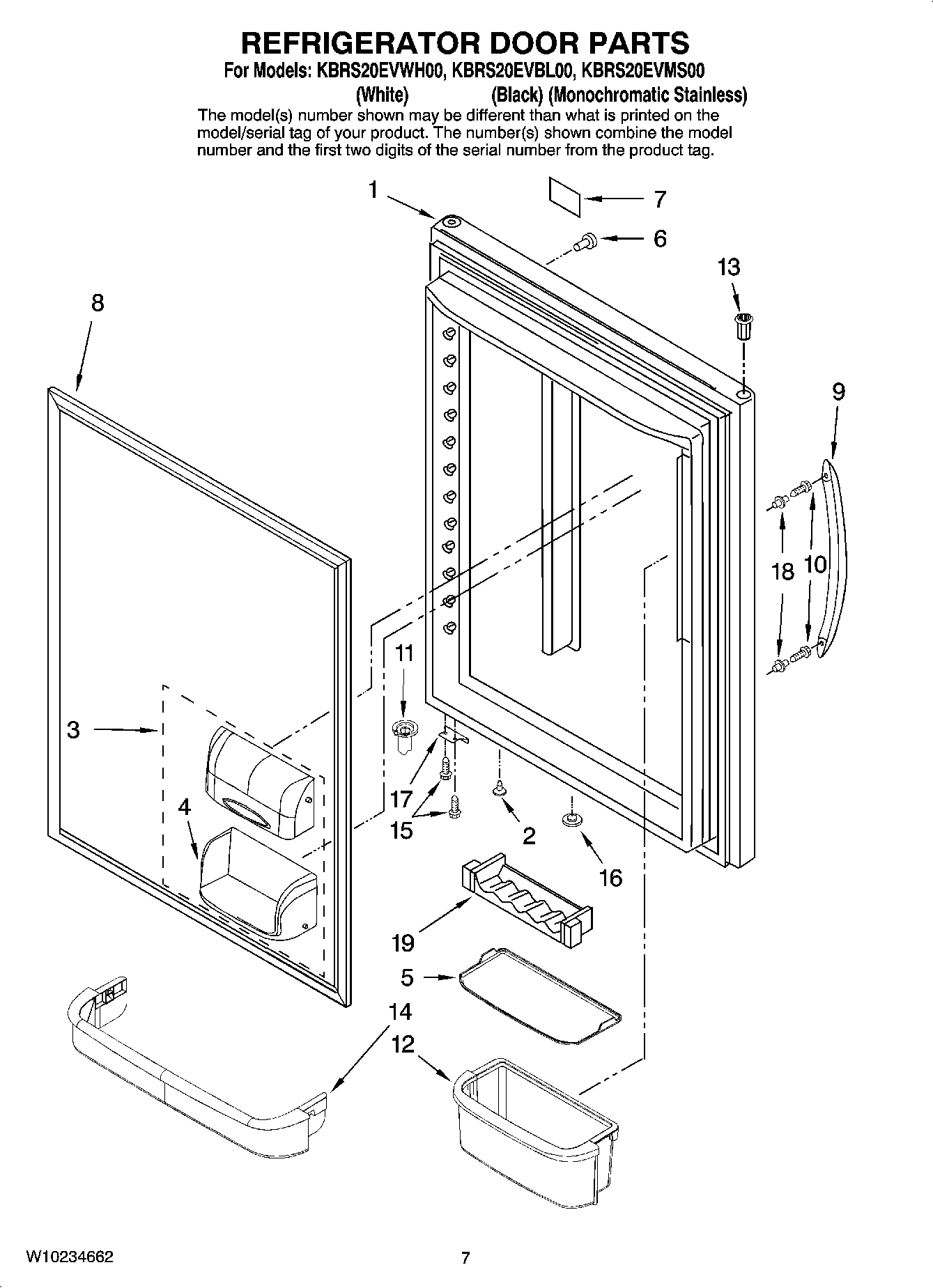

KBRS20EVBL00 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Refrigerator (Black)
1	Door, Refrigerator (White)
1	Door, Refrigerator (Stainless)
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	Gripper, Bucket
6	WP67001130 Whirlpool Refrigerator White Button Plug
6	WP12246608 Whirlpool Refrigerator Button
7	Nameplate (Grey)
7	Nameplate (White)
7	Nameplate (Black)
8	Gasket, Door (Apollo Grey)
8	W10164038 Whirlpool Refrigerator FIP Gasket
8	W10164039 Whirlpool Refrigerator FIP Gasket
9	Handle, Door (Black)
9	WPW10314517K Whirlpool Refrigerator Handle
9	WPW10314515 Whirlpool Refrigerator Handle
10	67006901 Whirlpool Refrigerator Screw
11	WP67003638 Whirlpool Closing Cam
11	WP67003639 Whirlpool Refrigerator Closer
12	Bucket, Shelf (2) (Gallon)
13	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
13	67004978 Whirlpool Refrigerator Black Door Bushing
14	Retainer, Door
15	WP98165 Whirlpool Screw
16	10712401 Whirlpool Refrigerator Vent Plug (White)
16	67004838 Whirlpool Refrigerator Button Vent Plug
17	12968202W Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
17	W11401472 Whirlpool Refrigerator Door Stop
18	WP67006113 Whirlpool Stud Bolt
19	WP67005626 Whirlpool Refrigerator Can Caddy
