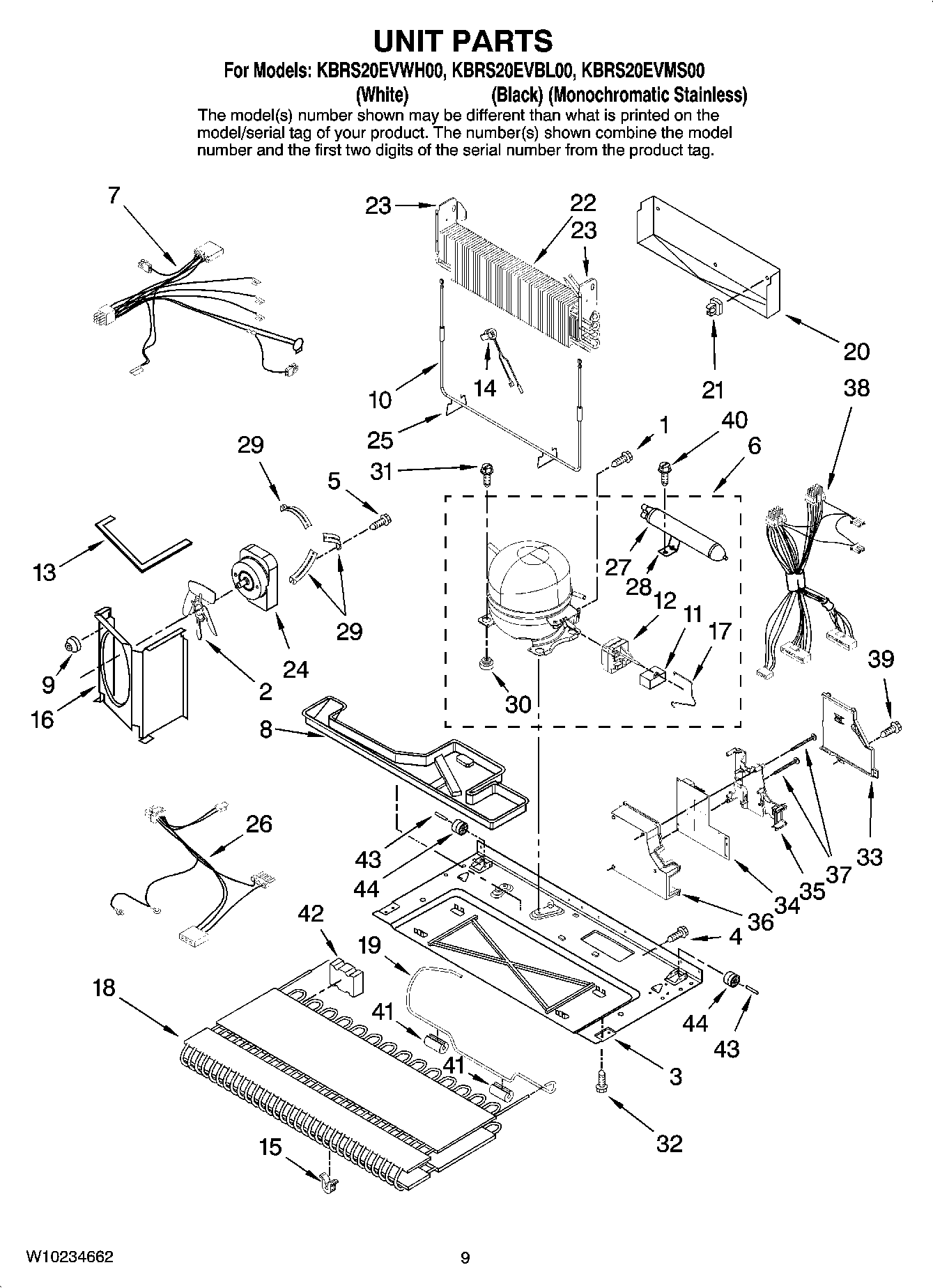

KBRS20EVBL00 05 – UNIT PARTS

KBRS20EVBL00 05 – UNIT PARTS

Written by

in

KBRS20EVBL00 05 – UNIT PARTS

Products

PositionProduct
978030 Whirlpool Refrigerator Valve
Following Parts Not Illustrated and Optional Parts Not Included
REFRIGERANT CHARGE 5.0 Ozs. (R-134A)
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
VALVE, ACCESS (5/8“)
978026 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
112992301 Whirlpool Refrigerator Screw
2W10156818 Whirlpool Refrigerator Fan Blade
3Basepan
467006425 Whirlpool Refrigerator Screw
5WP67004954 Whirlpool Refrigerator Screw
6W10160407 Whirlpool Refrigerator Compressor
7Harness, Evap Heater
8WP12579803 Whirlpool Refrigerator Drain Pan
9Grommet (3)
10WP67002493 Whirlpool Refrigerator Defrost Heater
11WPW10662129 Whirlpool Refrigerator Run Capacitor
12W10613606 Whirlpool Refrigerator Start Device Relay Overload
13WP854334 Whirlpool Air Conditioner Sealing Strip
14WPW10165425 Whirlpool Bimetal Defrost Thermostat
15WPW10137529 Whirlpool Refrigerator Grommet
16Shroud, Condenser
17Clip, Capacitor
18WP67006131 Whirlpool Refrigerator Condenser
19WP12866903 Whirlpool Refrigerator Discharge Tube
20W11547653 Whirlpool Refrigerator Drip Tray
21CLIP, EVAP (2)
2212002041 Whirlpool Refrigerator Evaporator Replacement Kit
23Dam (Right Side)
23Dam (Left Side)
24Motor, Fan
25W11673433 Whirlpool Clip
26Harness, Unit Includes Cord
27WPW10143759 Whirlpool Dryer Filter
2810547003 Whirlpool Refrigerator Dryer Clip
29WP67004953 Whirlpool Refrigerator Bracket
3067003493 Whirlpool Refrigerator Compressor Grommet
3112846902 Whirlpool Refrigerator Screw
32Screw (4)
3367005421 Whirlpool Hoist Cover
34Board, HV
35Spacer, HV
36Box, HV
37Screw (2)
38Harness, HV
39W10709801 Whirlpool Refrigerator Screw
40WP33001882 Whirlpool Screw
4167005680 Whirlpool Refrigerator Condenser Grommet
42Block, Condenser
4367006434 Whirlpool Axle Pin
44WP67005149 Whirlpool Roller
