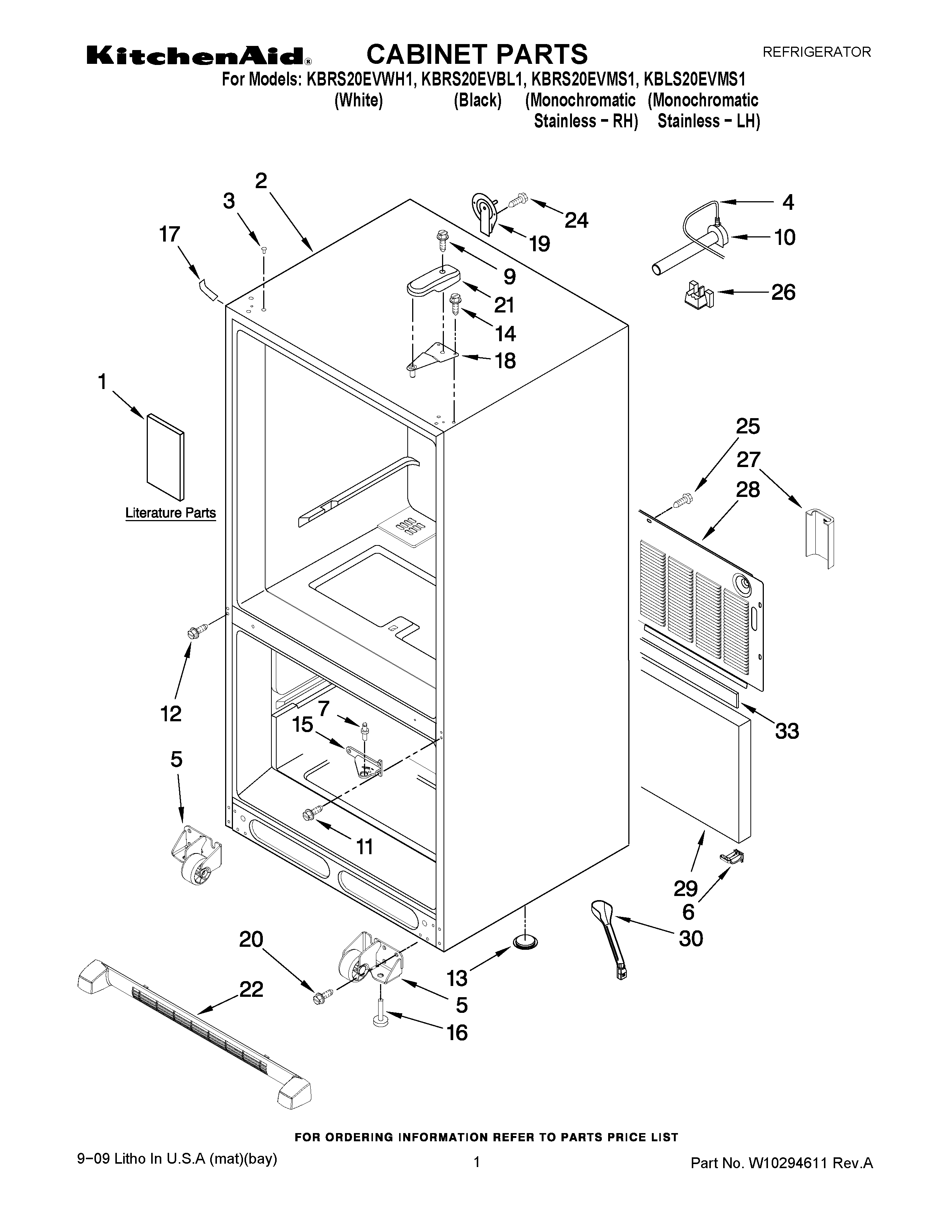

KBRS20EVBL1 01 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1Energy Guide
1Use & Care Guide
2CABINET (NOT A SERVICEABLE PART)
3WP12246608 Whirlpool Refrigerator Button
3WP67001130 Whirlpool Refrigerator White Button Plug
4W11120581 Whirlpool Refrigerator Water Tube
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
5WPW10515762 Whirlpool Refrigerator Cabinet Roller
612831101 Whirlpool Refrigerator Tube Clamp
7WP67006642 Whirlpool Refrigerator Pin
9WP8281196 Whirlpool Screw
10W11176463 Whirlpool Refrigerator Water Tube
11WP67006380 Whirlpool Screw
13A3076901 Whirlpool Refrigerator Plug
14WP489349 Whirlpool Refrigerator Screw
1512607103AP Whirlpool Refrigerator Door Hinge
15WP12607104ED Whirlpool Refrigerator Door Hinge
15WP12607103WD Whirlpool Refrigerator Center Hinge
16WPW10141622 Whirlpool Leveler
1767003485 Whirlpool Refrigerator Corner Cover (Black)
1712587703W Whirlpool Refrigerator Cover
17WP12587703AP Whirlpool Refrigerator Filler
18WP12566606ED Whirlpool Refrigerator Door Hinge
1912726003 Whirlpool Refrigerator Water Cover
2067006564 Whirlpool Refrigerator Screw
21W11106366 Whirlpool Refrigerator Door Hinge
2167001014 Whirlpool Refrigerator Top Hinge Cover White
2167001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
22WPW10534154 Whirlpool Refrigerator Front Grille
24WP98165 Whirlpool Screw
2567006425 Whirlpool Refrigerator Screw
26WP12777701 Whirlpool Refrigerator Filler Block
27W10208593 Whirlpool Refrigerator Valve Cover
28WPW10211855 Whirlpool Refrigerator Back Cover
29INSULATION, SOUND
30W10619951 Whirlpool Drain Tube with Grommet
33B5759655 Whirlpool Refrigerator Gasket
