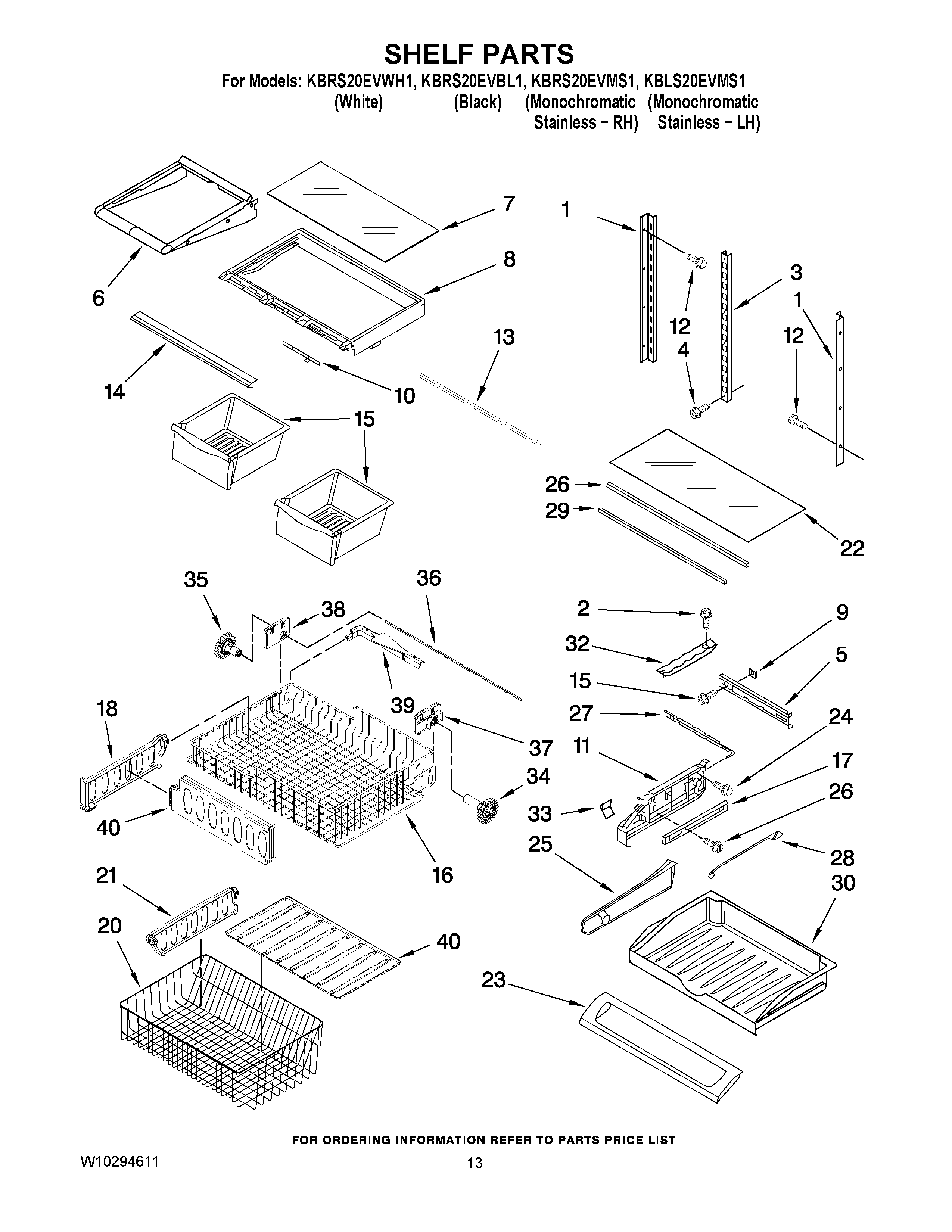

KBRS20EVBL1 07 – SHELF PARTS

KBRS20EVBL1 07 – SHELF PARTS

Written by

in

KBRS20EVBL1 07 – SHELF PARTS

Products

Position	Product
1	W10251971 Whirlpool Ladder Assembly
3	W10273463 Whirlpool Refrigerator Ladder
4	W10709795 Whirlpool Refrigerator Screw
5	12656202 Whirlpool Refrigerator Housing
6	WP12463911 Whirlpool Refrigerator Glass Shelf
7	WP67006655 Whirlpool Refrigerator Crisper Glass Shelf
8	WP67006185 Whirlpool Refrigerator Crisper Frame
9	67002329 Whirlpool Refrigerator Pantry Gasket
10	SLIDE
11	WP12656018 Whirlpool Drawer Support
11	WP12656105 Whirlpool Drawer Support
12	67006425 Whirlpool Refrigerator Screw
13	WP12227304WD Whirlpool Refrigerator Drawer Support
14	TRIM, CRISPER
15	WP67002659 Whirlpool Crisper Pan
16	W10348245 Whirlpool Refrigerator Freezer Basket
17	WPW10235370 Whirlpool Refrigerator Glide
18	W10241046 Whirlpool Refrigerator Divider
20	W10503185 Whirlpool Dishwasher Cutlery Basket
21	W10150061 Whirlpool Refrigerator Divider
22	W11125512 Whirlpool Refrigerator Glass Shelf
23	WP67005930 Whirlpool Refrigerator Pantry Drawer Front Lid
24	WP98165 Whirlpool Screw
25	WP67002321 Whirlpool Refrigerator Divider Panel
26	WP12227305WD Whirlpool Drawer Support
27	WP67003793 Whirlpool Refrigerator Temperature Slide
28	67003794 Whirlpool Refrigerator Temperature Control Bar
29	WP67006010 Whirlpool Refrigerator Shelf Trim
30	W11490183 Whirlpool Refrigerator Utility Pan
32	WP67001719 Whirlpool Refrigerator Track
33	W11498983 Whirlpool Refrigerator Knob
34	WPW10474715 Whirlpool Refrigerator Gear
35	WPW10474716 Whirlpool Refrigerator Gear
36	W11173556 Whirlpool Refrigerator Shaft
37	W10348260 Whirlpool Refrigerator Bracket
38	W10348259 Whirlpool Refrigerator Bracket Assembly
39	W10149389 Whirlpool Refrigerator Handle
40	WP12727304 Whirlpool Refrigerator Mat
