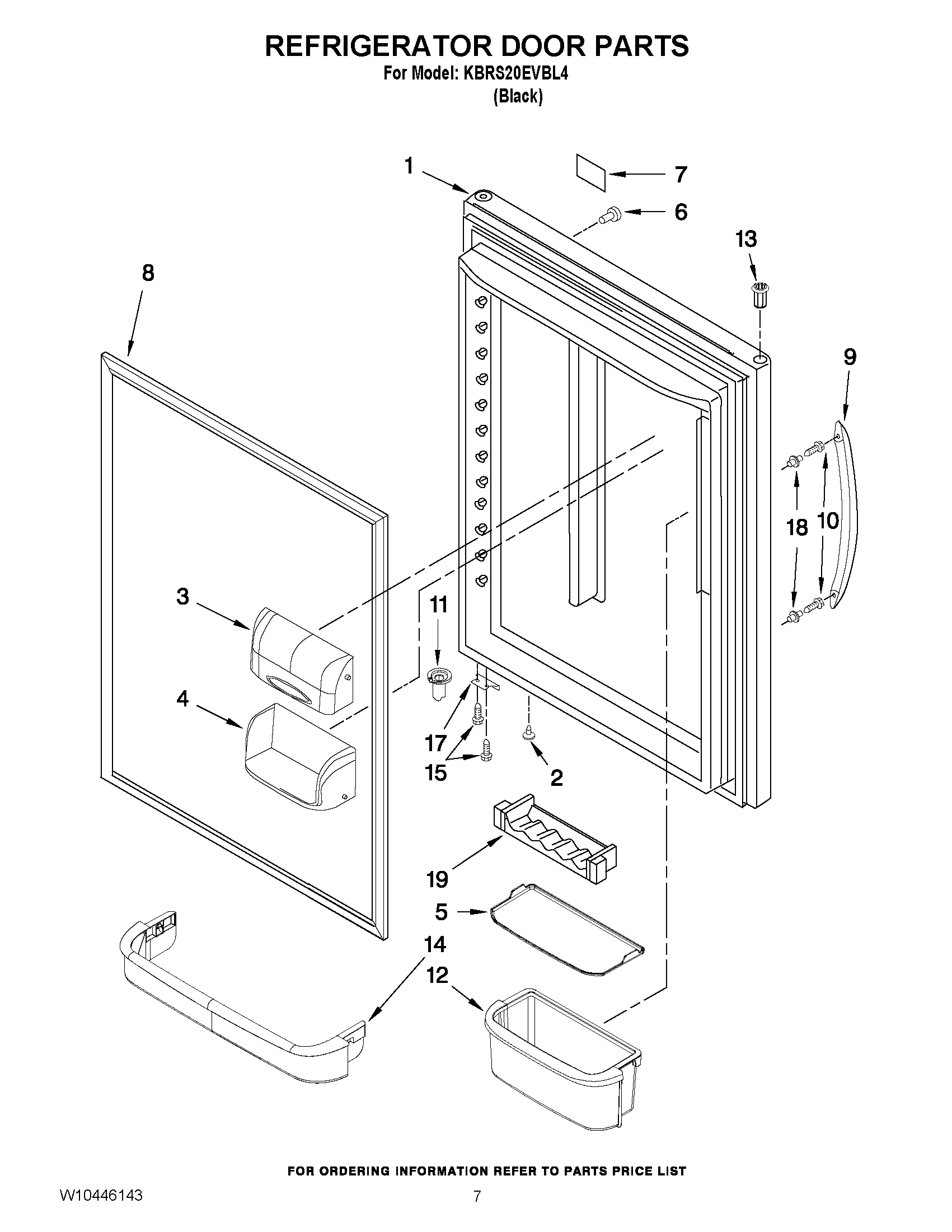

KBRS20EVBL4 04 – REFRIGERATOR DOOR PARTS

KBRS20EVBL4 04 – REFRIGERATOR DOOR PARTS

Written by

in

KBRS20EVBL4 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (BLACK)
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5Gripper, Bucket
6WP12246608 Whirlpool Refrigerator Button
7WPW10243392 Whirlpool Dishwasher Nameplate
8W10164039 Whirlpool Refrigerator FIP Gasket
9HANDLE, DOOR (BLACK)
10SCREW
11WP67003639 Whirlpool Refrigerator Closer
12BUCKET, SHELF (2) (GALLON)
1367004978 Whirlpool Refrigerator Black Door Bushing
14Retainer, Door
15WP98165 Whirlpool Screw
17W11708403 Whirlpool Door Stop
18WP67006113 Whirlpool Stud Bolt
19WP67005626 Whirlpool Refrigerator Can Caddy
