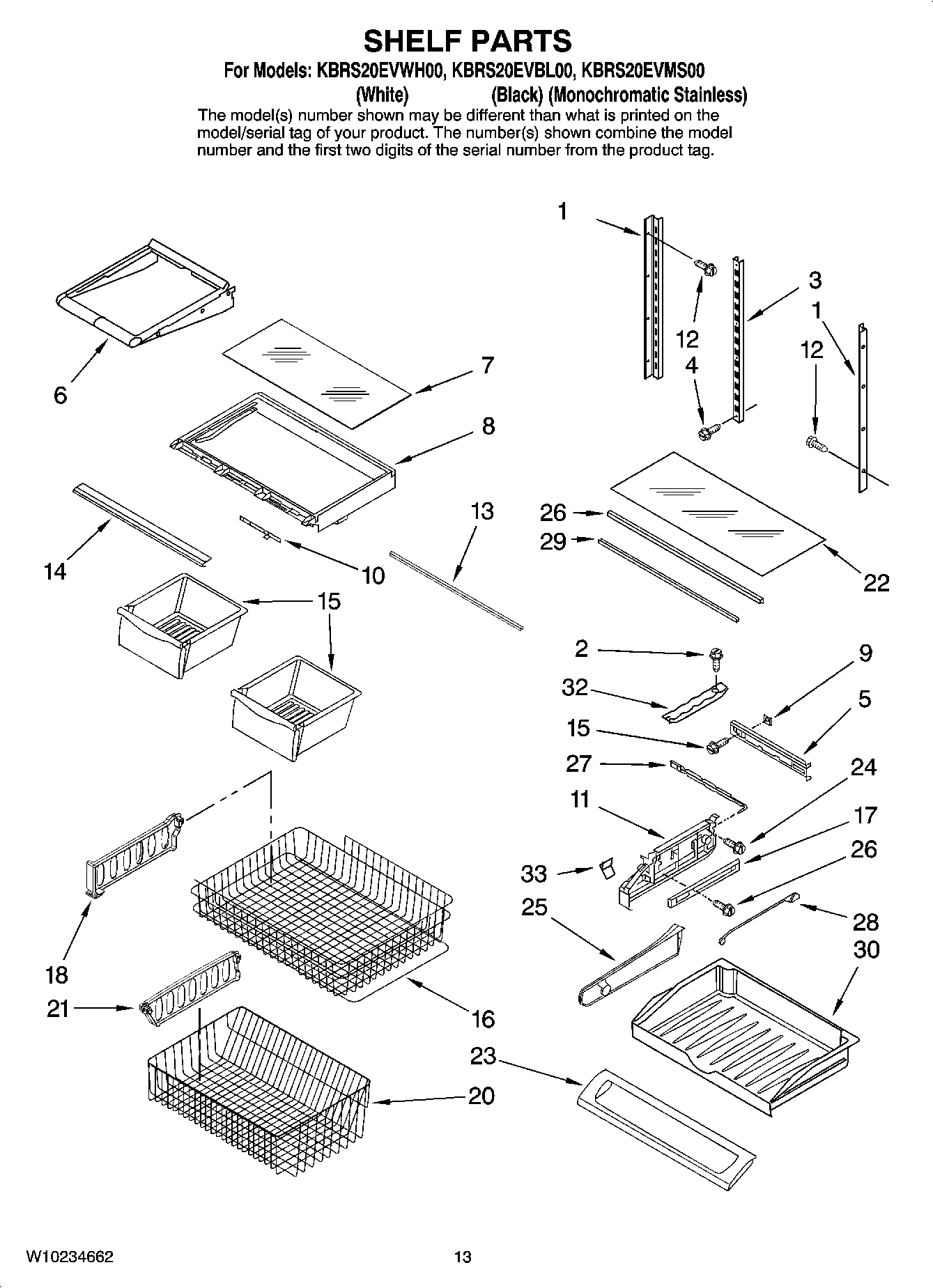

KBRS20EVMS00 07 – SHELF PARTS

Products

Position	Product
1	67002489 Whirlpool Refrigerator Ladder L/R Side
3	67001073 Whirlpool Refrigerator Center Ladder
4	W10709795 Whirlpool Refrigerator Screw
5	12656202 Whirlpool Refrigerator Housing
6	WP12463911 Whirlpool Refrigerator Glass Shelf
7	WP67006655 Whirlpool Refrigerator Crisper Glass Shelf
8	WP67006185 Whirlpool Refrigerator Crisper Frame
9	67002329 Whirlpool Refrigerator Pantry Gasket
10	SLIDE
11	WP12656018 Whirlpool Drawer Support
11	WP12656105 Whirlpool Drawer Support
12	67006425 Whirlpool Refrigerator Screw
13	WP12227304WD Whirlpool Refrigerator Drawer Support
14	Trim, Crisper
15	WPW10143396 Whirlpool Refrigerator Crisper Pan
16	W10348245 Whirlpool Refrigerator Freezer Basket
17	WPW10235370 Whirlpool Refrigerator Glide
18	Divider, Upper Basket
20	W10503185 Whirlpool Dishwasher Cutlery Basket
21	W10150061 Whirlpool Refrigerator Divider
22	WP67002332 Whirlpool Refrigerator Glass Pan
23	WP67005930 Whirlpool Refrigerator Pantry Drawer Front Lid
24	WP98165 Whirlpool Screw
25	WP67002321 Whirlpool Refrigerator Divider Panel
26	WP12227305WD Whirlpool Drawer Support
27	WP67003793 Whirlpool Refrigerator Temperature Slide
28	67003794 Whirlpool Refrigerator Temperature Control Bar
29	WP67006010 Whirlpool Refrigerator Shelf Trim
30	W11490183 Whirlpool Refrigerator Utility Pan
32	WP67001719 Whirlpool Refrigerator Track
33	W11498983 Whirlpool Refrigerator Knob
