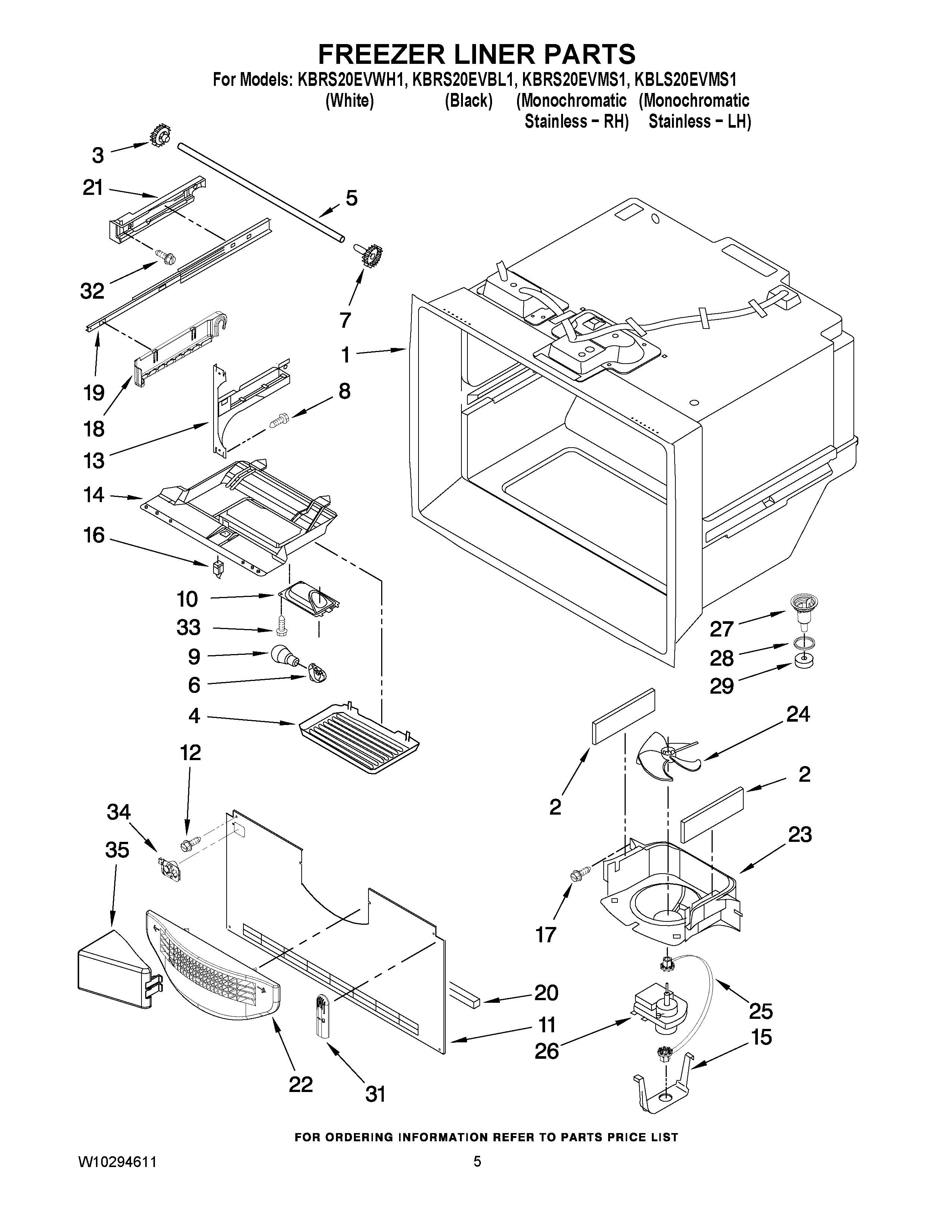

KBRS20EVMS1 03 – FREEZER LINER PARTS

Products

Position	Product
NI	HARNESS, FZ MODULE
1	CABINET (NOT A SERVICEABLE PART)
2	W10856123 Whirlpool Refrigerator Gasket
4	Cover, Light
5	W11028221 Whirlpool Refrigerator Shaft
6	W11447232 Whirlpool Refrigerator Socket
7	12002497 Whirlpool Refrigerator Drawer Gear Kit
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	W11702858 Whirlpool Housing
11	W11727809 Whirlpool Evaporator Cover
12	67006425 Whirlpool Refrigerator Screw
13	WPW10330994 Whirlpool Refrigerator Bracket
13	WPW10330991 Whirlpool Refrigerator Bracket
14	67003906 Whirlpool Refrigerator Control Module
15	CLIP, EVAPORATOR MOTOR
16	W11396033 Whirlpool Refrigerator Rocker Switch
17	WP98165 Whirlpool Screw
18	WPW10281116 Whirlpool Bracket
18	WPW10281115 Whirlpool Refrigerator Bracket
19	W11658403 Whirlpool Slide
20	W11159728 Whirlpool Refrigerator Gasket
21	WPW10284693 Whirlpool Mounting Bracket
21	WPW10284692 Whirlpool Refrigerator Bracket
22	WPW10175909 Whirlpool Grille Assembly
23	WPW10167023 Whirlpool Refrigerator Shroud
24	WP2169142 Whirlpool Fan Blade
25	W10121318 Whirlpool Refrigerator Grommet
26	WPW10128551 Whirlpool Evaporator Fan Motor
27	W10815413 Whirlpool Refrigerator Funnel
28	WPM0500703 Whirlpool Refrigerator O-Ring Seal
29	WPB8381501 Whirlpool Refrigerator Door Gasket
31	WP67003924 Whirlpool Refrigerator Cover
32	WP489474 Whirlpool Refrigerator Screw
33	WP90767 Whirlpool Screw
34	W11448709 Whirlpool Refrigerator Bracket
35	W10157765 Whirlpool Refrigerator Deflector
