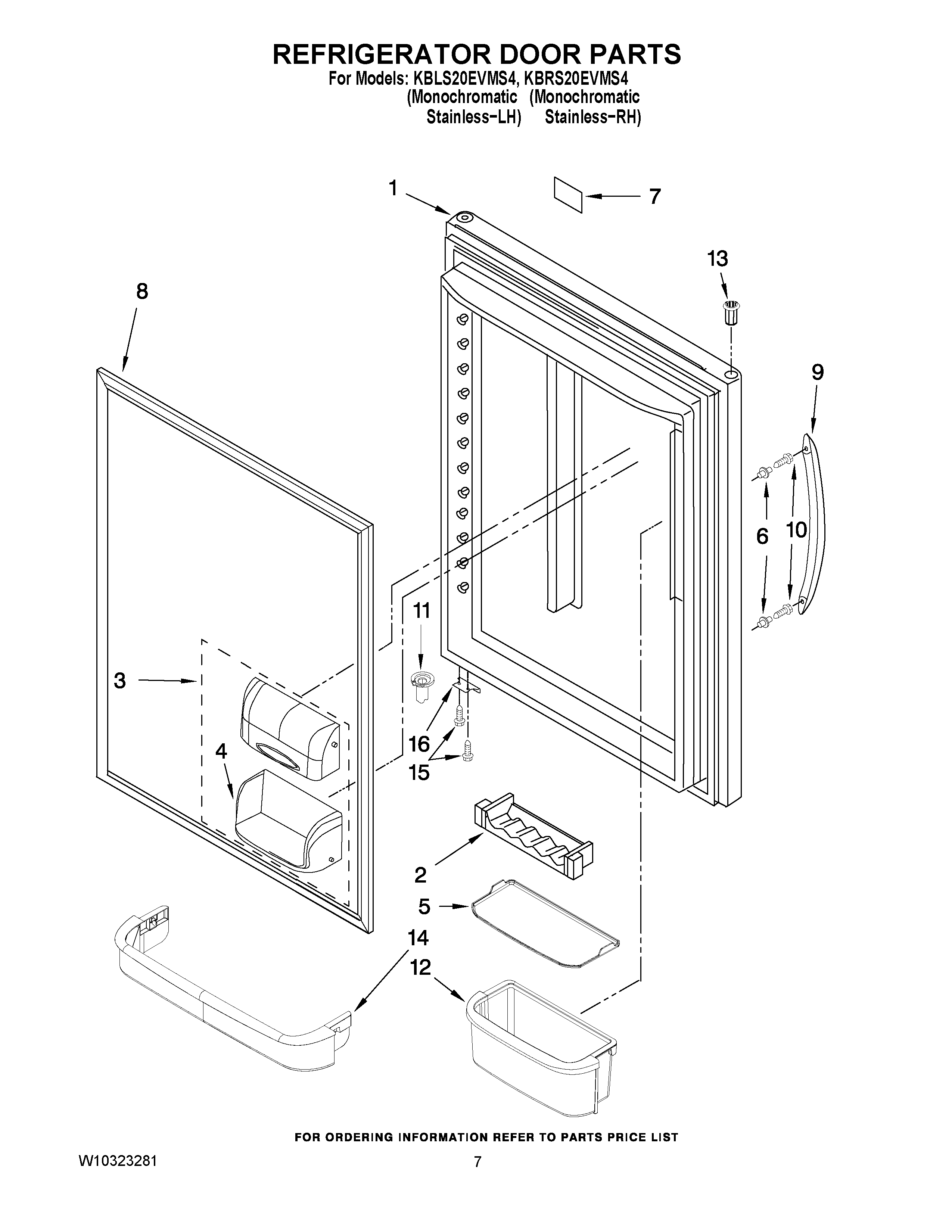

KBRS20EVMS4 04 – REFRIGERATOR DOOR PARTS

KBRS20EVMS4 04 – REFRIGERATOR DOOR PARTS

Written by

in

KBRS20EVMS4 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (STAINLESS – RH)
1DOOR, REFRIGERATOR (STAINLESS – LH)
2WP67005626 Whirlpool Refrigerator Can Caddy
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5Gripper, Bucket
6WP67006113 Whirlpool Stud Bolt
7NAMEPLATE
8Gasket, Door (Apollo Grey)
9WPW10314517K Whirlpool Refrigerator Handle
10WP3387230 Whirlpool Screw
11WP12028505AP Whirlpool Closing Cam
12BUCKET, SHELF (2) (GALLON)
1310961006AP Whirlpool Refrigerator Hinge Bushing
14Retainer, Door
15WP98165 Whirlpool Screw
16W11401472 Whirlpool Refrigerator Door Stop
