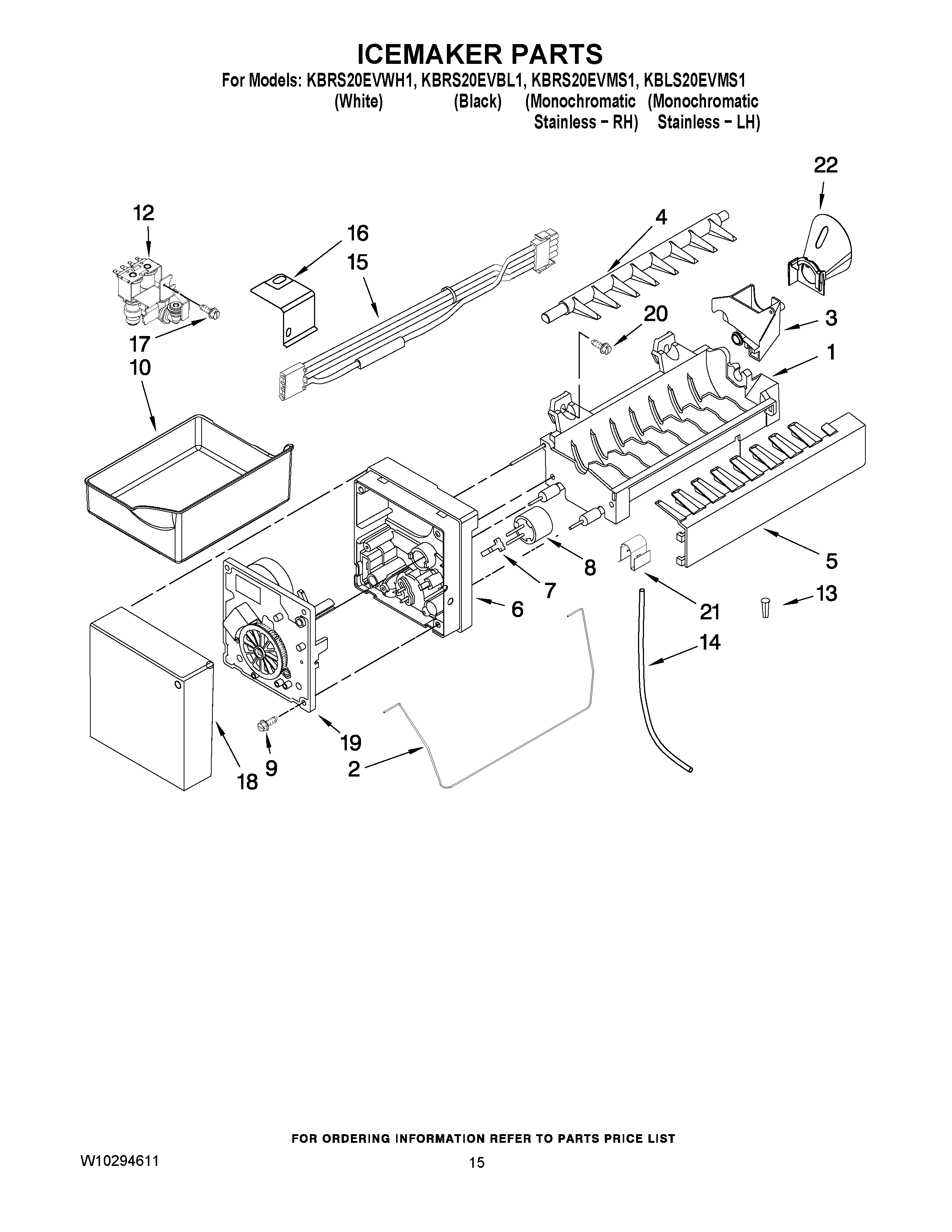

KBRS20EVWH1 08 – ICEMAKER PARTS

Products

Position	Product
NI	W11033771 Whirlpool Refrigerator Coupling
1	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
2	ARM-SHUT
3	W10122561 Whirlpool Refrigerator Cup Fill
4	WP627843 Whirlpool Refrigerator Ejector Arm
5	WP2182124 Whirlpool Refrigerator Stripper Arm
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	WP2315522 Whirlpool Refrigerator Clip
8	WP627985 Whirlpool Icemaker Cycling Thermostat
9	WP489464 Whirlpool Refrigerator Screw
10	WPW10171529 Whirlpool Refrigerator Ice Pan
12	WP12544124 Whirlpool Refrigerator Valve
13	WPA3223101 Whirlpool Refrigerator Insert PL
14	W11120581 Whirlpool Refrigerator Water Tube
15	WPD7813010 Whirlpool Refrigerator Wire Harness
16	WP2256087 Whirlpool Refrigerator Bracket
17	WP489128 Whirlpool Refrigerator Screw
18	WPW10289690 Whirlpool Ice Maker Cover
19	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
20	WP681249 Whirlpool Screw Assembly
21	WP628379 Whirlpool Refrigerator Clip
22	12918001 Whirlpool Refrigerator Funnel
100	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
