KBRS20EVWH3 04 – REFRIGERATOR DOOR PARTS

KBRS20EVWH3 04 – REFRIGERATOR DOOR PARTS

Written by

in

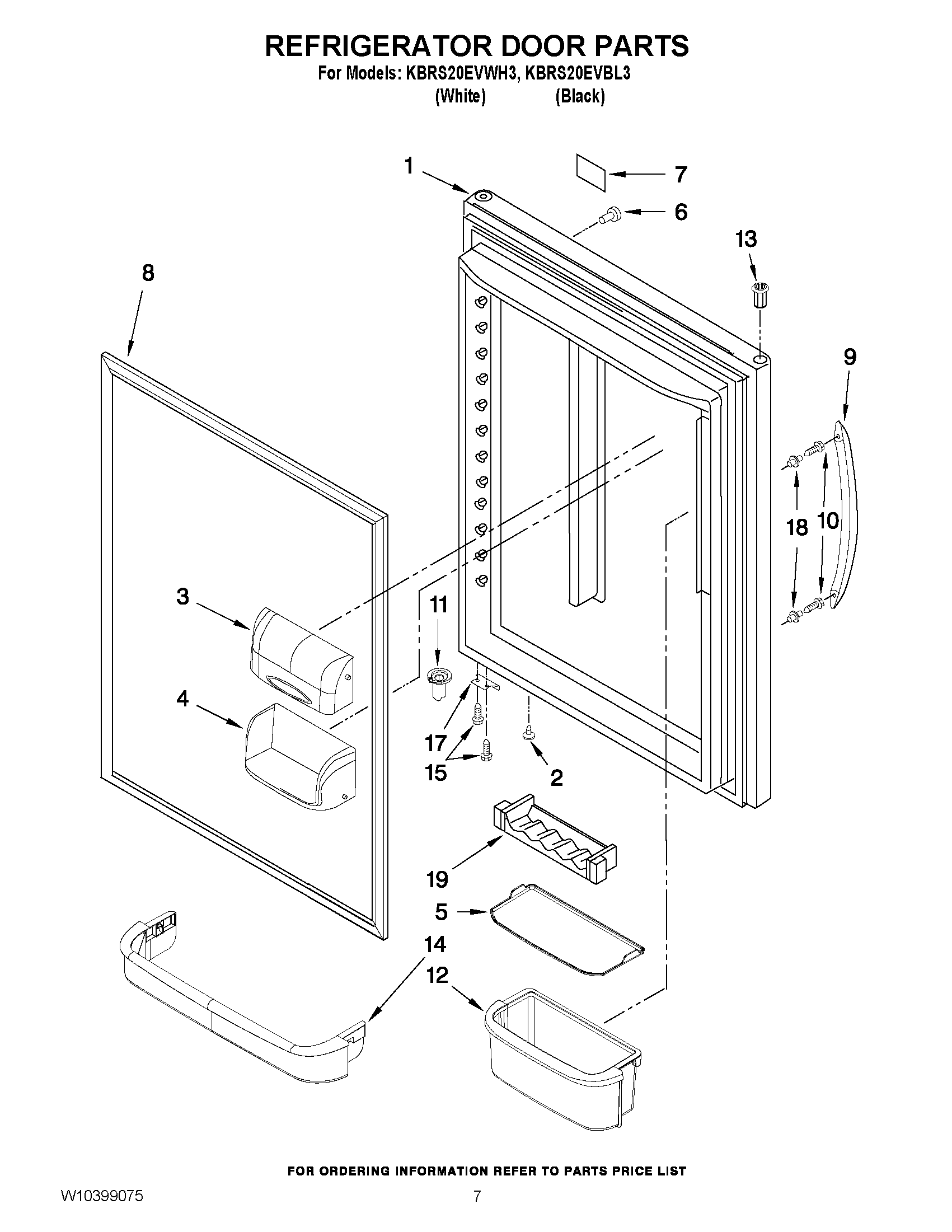

KBRS20EVWH3 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (WHITE)
1DOOR, REFRIGERATOR (BLACK)
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5Gripper, Bucket
6WP12246608 Whirlpool Refrigerator Button
6WP67001130 Whirlpool Refrigerator White Button Plug
7WPW10243393 Whirlpool Dishwasher Nameplate
7WPW10243392 Whirlpool Dishwasher Nameplate
8W10164038 Whirlpool Refrigerator FIP Gasket
8W10164039 Whirlpool Refrigerator FIP Gasket
9HANDLE, DOOR (BLACK)
9WPW10314515 Whirlpool Refrigerator Handle
10SCREW
11WP67003638 Whirlpool Closing Cam
11WP67003639 Whirlpool Refrigerator Closer
12BUCKET, SHELF (2) (GALLON)
1367004978 Whirlpool Refrigerator Black Door Bushing
13WP67004977 Whirlpool Refrigerator Door Hinge Bushing
14Retainer, Door
15WP98165 Whirlpool Screw
1712968202W Whirlpool Refrigerator Door Stop
17W11708403 Whirlpool Door Stop
18WP67006113 Whirlpool Stud Bolt
19WP67005626 Whirlpool Refrigerator Can Caddy
