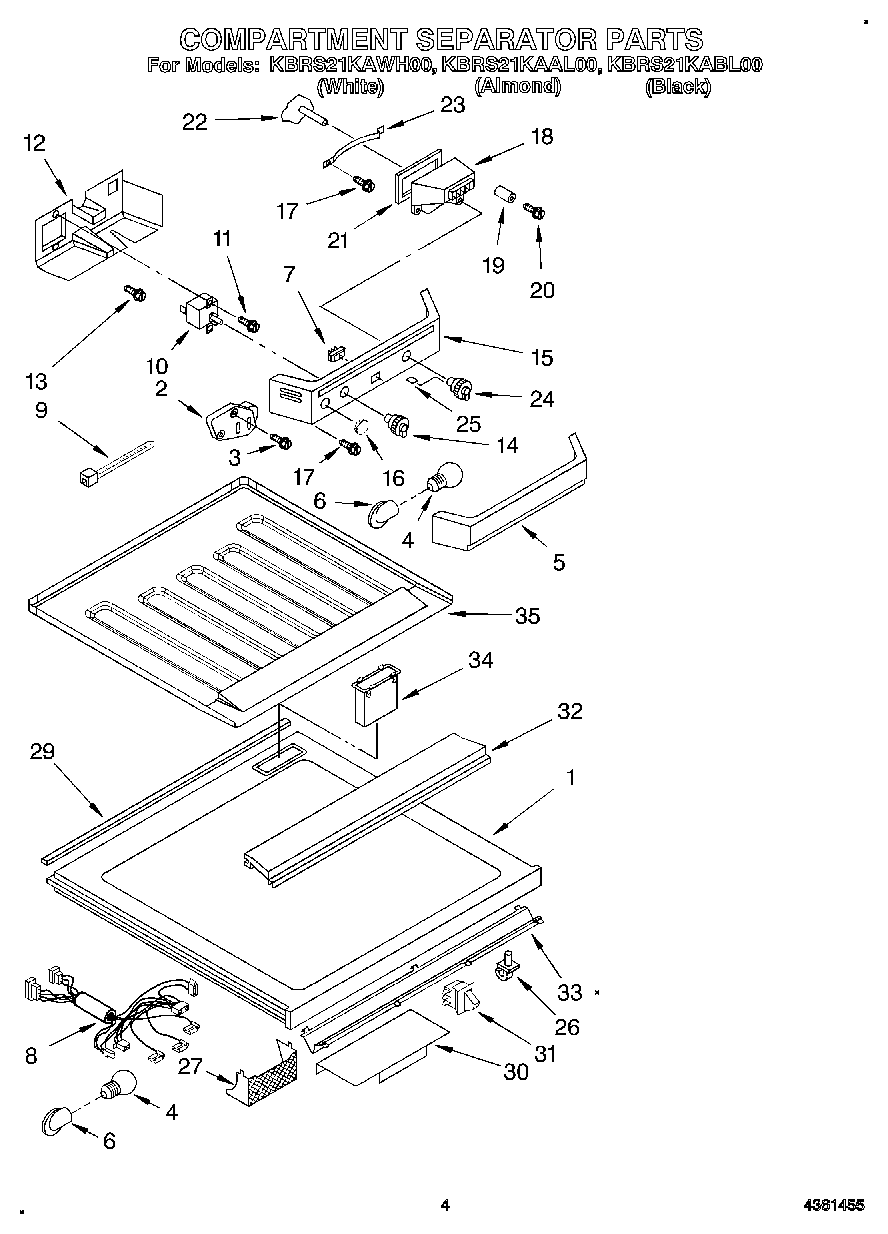

KBRS21KABL00 03 – COMPARTMENT SEPARATOR

Products

Position	Product
1	Compartment Separator Assembly (Includes Center Rail and Heater Assembly)
2	WP2183400 Whirlpool Defrost Timer
3	Screw
4	W11679940 Whirlpool Refrigerator Light Bulb Assembly
5	Light Lens
6	4387478 Whirlpool Refrigerator Light Socket
7	WP938213 Whirlpool Refrigerator Power Switch
8	Wiring Assembly, Control Box
9	Cable Tie
10	WP4317800 Whirlpool Refrigerator Thermostat
12	Bracket, Thermostat
13	Screw, 8-32 x 3/8
14	Control Knob
15	Control Panel
16	940014 Whirlpool Refrigerator Primary Button Plug
17	WP489478 Whirlpool Refrigerator Screw
18	Air Diffuser Assembly
19	836667 Whirlpool Refrigerator Spacer
20	Screw, 8 x 1-1/4 (3)
21	Gasket
22	Damper, Air
23	Retrainer, Air Dampener
24	Knob, Air Diffuser (Includes Item 25)
25	Knob, Retainer
26	Stud
27	Lens, Dispenser Light
29	Gasket, Comp. Sep.
30	Lens-Light
31	W11457217 Whirlpool Refrigerator Rocker Switch Combination
32	Separator Top-Front
33	Air Deflector
34	Insert, Air Return
35	Separator, Top-Rear
