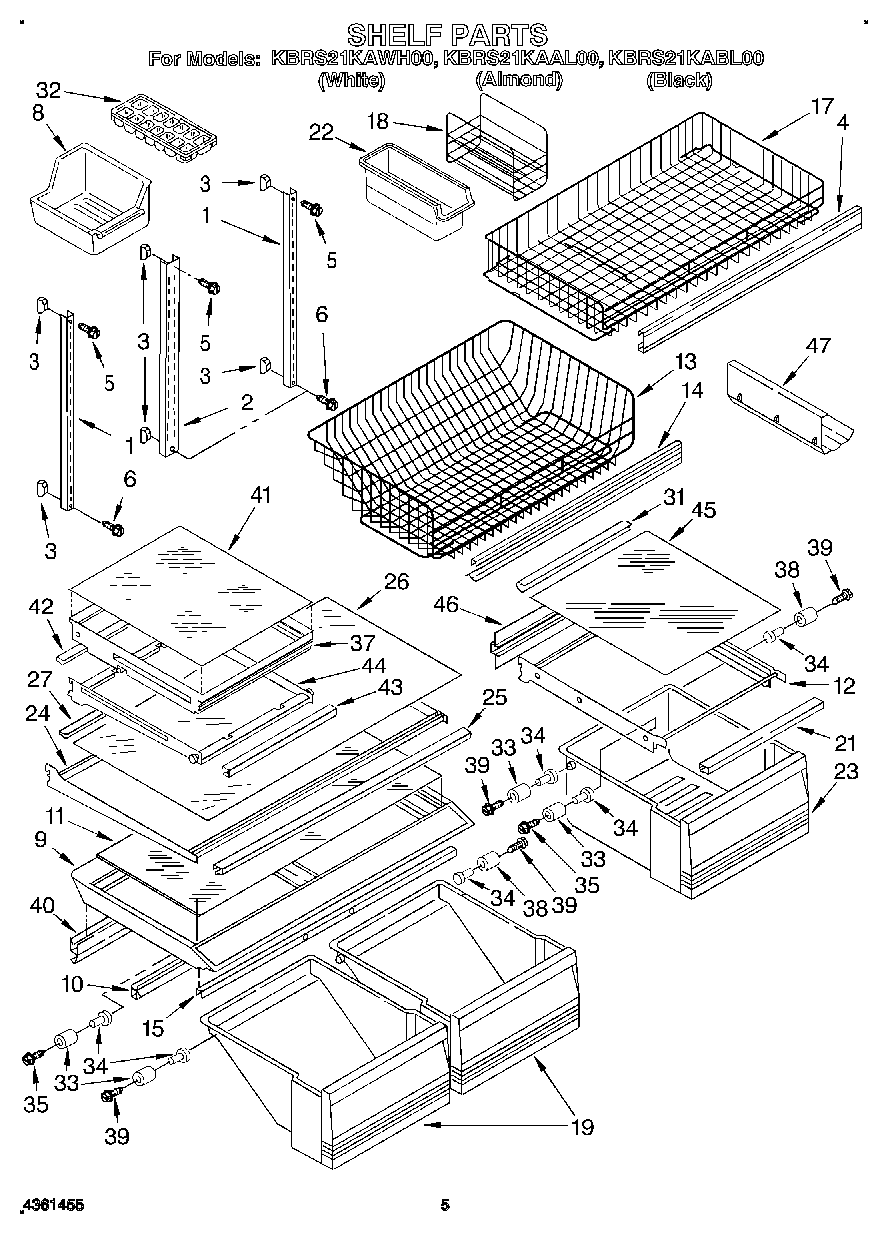

KBRS21KABL00 04 – SHELF, LIT/OPTIONALadmin2025-04-26T09:40:32+00:00KBRS21KABL00 04 – SHELF, LIT/OPTIONAL
Products
| Position | Product |
|---|
| 350930 Whirlpool White Spray Paint |
| WPL LIT2160414 |
| 72032 Whirlpool Touch Up Paint Black |
| 285006 Whirlpool Spray |
| WPL LIT2152819 |
| Torx Key |
| 833938 Whirlpool Refrigerator Terminal |
| 350942 Whirlpool Spray Paint |
| WPL LIT2152850 |
| 799344 Whirlpool Refrigerator Paint |
| 350956 Whirlpool Spray Assembly |
| WP72107 Whirlpool Touchup |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| Almond (Uncut) |
| 1 | Shelf, Ladder (2) |
| 2 | Shelf, Ladder Center |
| 3 | 520965 Whirlpool Refrigerator Support |
| 4 | Trim, Basket |
| 5 | Screw (3) |
| 6 | WP488163 Whirlpool Refrigerator Screw |
| 8 | Ice Cube Pan |
| 9 | Pan Cover & Roller Assembly |
| 10 | WP1125528 Whirlpool Refrigerator Gasket |
| 11 | Glass, Crisper Cover |
| 12 | Pan Shelf & Roller Assembly |
| 13 | Freezer Basket, (Lower) |
| 14 | Trim, Basket |
| 15 | WP2172748 Whirlpool Drawer Support |
| 17 | Freezer Basket (Upper) |
| 18 | Rack, Ice Tray |
| 19 | Pan, Crisper |
| 21 | Gasket, Front |
| 22 | WP982704 Whirlpool Refrigerator Container |
| 23 | Meat Pan Assy. |
| 24 | Shelf, Full |
| 25 | Gasket, Front Cantilever |
| 26 | Glass, Full Shelf |
| 27 | Retainer, Shelf |
| 31 | Retainer, Glass |
| 32 | WP841180A Whirlpool Microwave Glass Turntable Tray |
| 33 | Roller |
| 34 | Eyelet, Roller |
| 35 | WP489261 Whirlpool Refrigerator Screw |
| 37 | Frame & Roller Assembly |
| 38 | Roller |
| 40 | Gasket, Pan Cover-Rear |
| 41 | Glass |
| 42 | Reflector, Shelf |
| 43 | Gasket (Front) |
| 44 | Frame & Roller Assembly |
| 45 | Glass, Shelf |
| 46 | Gasket, Rear |
| 47 | 876370 Whirlpool Refrigerator Insulation |
| 47 | Wine & Egg Rack |
| 47 | WPL 876029 |
| 47 | WPL 799833 |
| 47 | CEMENT, ALUMILASTIC (1 1/4 OZ.) |
| 47 | TAPE, VINYL (3/4 X 108``) |
| 47 | WP542638 Whirlpool Refrigerator Grease |
| 47 | WP505587 Whirlpool Refrigerator Sealer |
| 47 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 47 | 511873 Whirlpool Refrigerator Paint |
| 47 | 606755 Whirlpool Refrigerator Bag |
| 47 | WP503695 Whirlpool Refrigerator Sealer |
