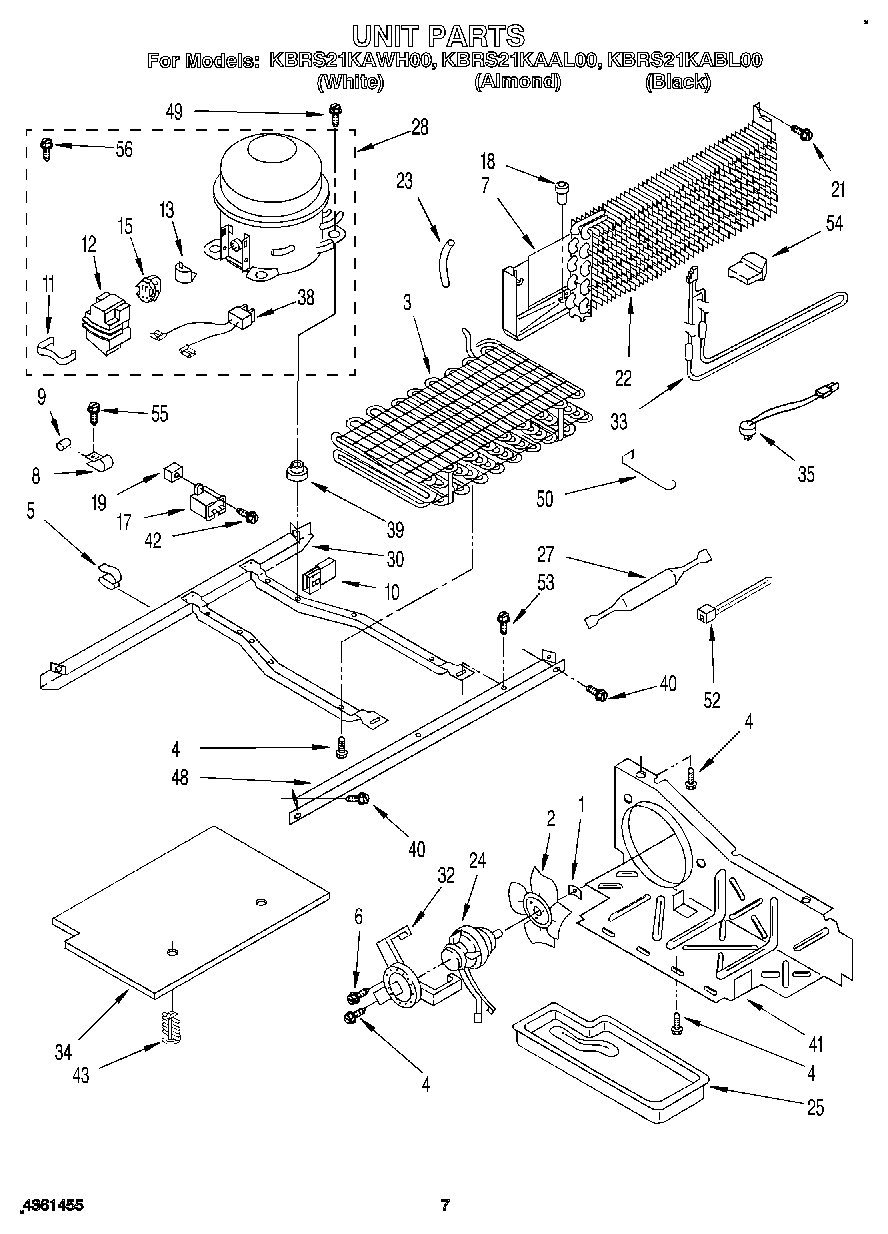

KBRS21KABL00 05 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Drain Pan & Heat Shield Assy.
8	Clamp Tube
9	WP2158826 Whirlpool Refrigerator Dampener
10	WP717253 Whirlpool Dishwasher Connector
11	case spring
11	Strap
12	Cover
12	Case, Relay
13	Overload
13	WP2149959 Whirlpool Refrigerator Overload
15	Relay (See Overload)
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	Drain Ferrule
19	Screw Grommet
21	WP489478 Whirlpool Refrigerator Screw
22	Evaporator
23	SLEEVE
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
27	W10843121 Whirlpool Refrigerator Tube
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	W10439652 Whirlpool Refrigerator Compressor
30	2304903 Whirlpool Refrigerator Frame
32	Fan, Motor Bracket
33	Heater, Defrost
34	Cover-Unit Btm.
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
39	Grommet (Production)
40	489340 Whirlpool Refrigerator Screw
41	Air Baffle
43	489396 Whirlpool Refrigerator Clip
48	Unit Mounting Rail
49	Screw
50	1105612 Whirlpool Fan Guard
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
54	Support
56	876764 Whirlpool Refrigerator Primary Valve
56	978026 Whirlpool Refrigerator Primary Valve
56	978030 Whirlpool Refrigerator Valve
56	W11693756 Whirlpool Screw Assembly
56	VALVE, ACCESS (5/8“)
56	WP978025 Whirlpool Refrigerator Valve
56	VALVE, ACCESS (1/2“)
56	978027 Whirlpool Refrigerator Primary Valve
