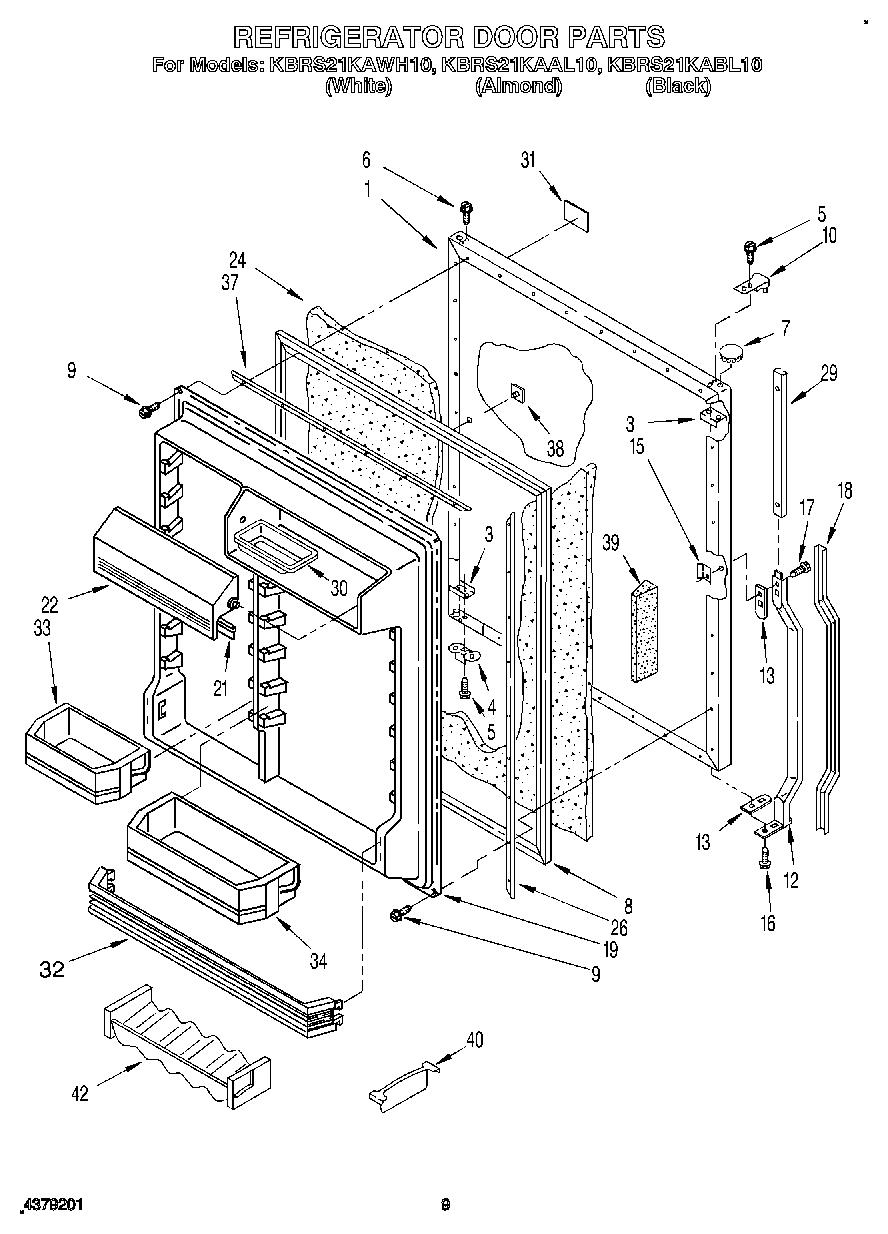

KBRS21KABL10 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Also Order Item 24) (Black)
1	Panel, Refrigerator Door (Also Order Item 24) (Almond)
1	Panel, Refrigerator Door (Also Order Item 24) (White)
3	Plate, Tap (4)
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
7	WP2212651 Whirlpool Refrigerator Button Plug
8	Door Gasket, Magnetic (White Model)
9	WP489069 Whirlpool Compactor Screw
9	WP488729 Whirlpool Refrigerator Door Screw
9	SCREW
10	Handle End
12	Handle Assembly
13	Spacer, Handle
14	Shim, Bottom
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488163 Whirlpool Refrigerator Screw
18	Insert, Handle (White)
18	Insert, Handle (Black Model)
18	Insert, Handle (Almond)
19	Interior Door Panel
21	Gasket, Utility Door
22	Compartment Door,
24	WPL 876029
26	Retainer Gasket, Side (2)
29	Retainer Insert
30	Butter, Tray
31	Nameplate (White Model)
31	Nameplate (Almond Model)
31	Nameplate (Black Model)
32	Shelf Bin, Fixed
33	Bin, Door Shelf Narrow
34	Bin, Door Shelf Deep. Wide
37	Gasket Retainer, Top & Bottom
38	WP2189000 Whirlpool Refrigerator Handle Plug
38	Hole Plug, Handle (Almond)
38	WP2189009 Whirlpool Refrigerator Handle Plug
39	WPL 1126161
40	WPL 1117999
42	WPL 1125981
