KBRS21KABL10 07 – FREEZER DOOR

KBRS21KABL10 07 – FREEZER DOOR

Written by

in

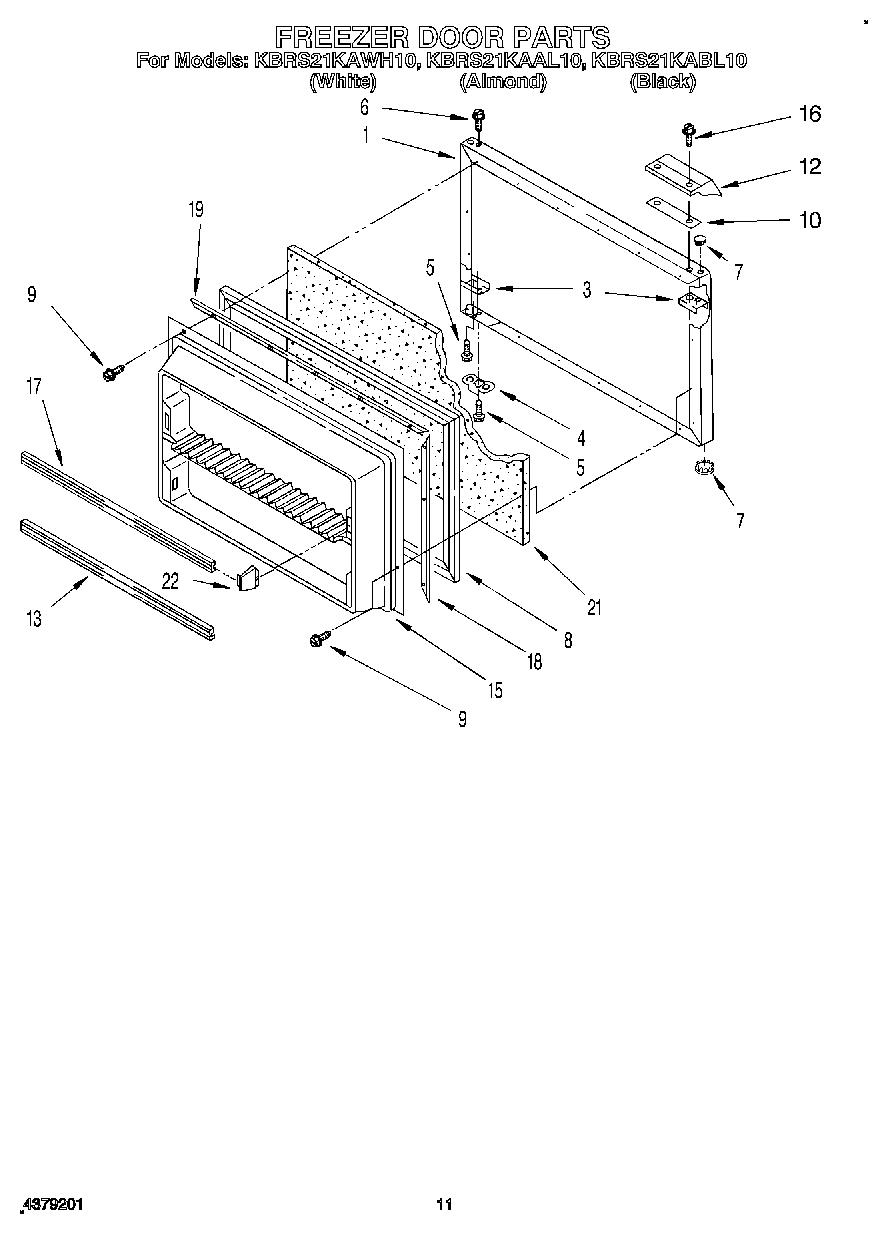

KBRS21KABL10 07 – FREEZER DOOR

Products

PositionProduct
1Panel, Freezer Door (Also Order Item 21) (White)
1Panel, Freezer Door (Also Order Item 21) (Almond)
1Panel, Freezer Door (Also Order Item 21) (Black)
3Plate, Tap (4)
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WPL 488935
7Hole Plug (Almond)
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8Door Gasket (White Model)
9WP488729 Whirlpool Refrigerator Door Screw
9SCREW
9WP489069 Whirlpool Compactor Screw
10WPL 989711
12WPL 657077
13Trim, Door Shelf
15Interior Door Panel
16WPL 488933
17Trim, Door
18WPL 986015
19876765 Whirlpool Primary Mounting Kit Refrigerator
19Gasket Retainer, Top & Bottom
21Kit, Foam Slab (Required When Replacing Exterior Door Panel)
224386917 Whirlpool Endcap Kit
