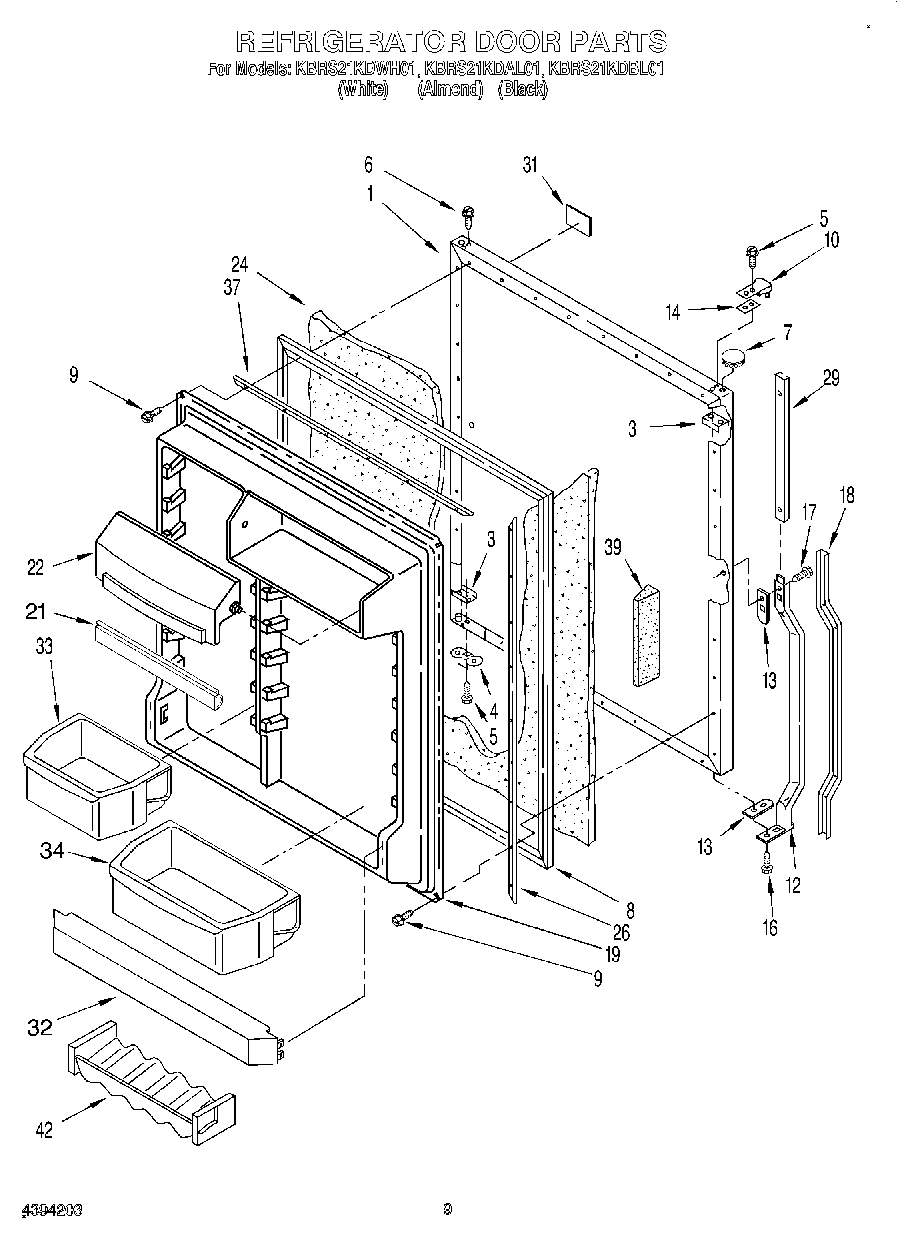

KBRS21KDAL01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Also Order Item 24) (White)
1	Panel, Refrigerator Door (Also Order Item 24) (Black)
1	Panel, Refrigerator Door (Also Order Item 24) (Almond)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212651 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	Door Gasket, Magnetic (Mist Beige)
8	Door Gasket, Magnetic (Black)
9	WP489442 Whirlpool Refrigerator Screw
9	SCREW
10	Handle End
12	Handle Assembly
13	Spacer, Handle
14	Shim, Bottom
16	WP488920 Whirlpool Refrigerator Screw
17	WP488921 Whirlpool Refrigerator Screw
18	Insert, Handle (White)
18	Insert, Handle (Almond)
18	Insert, Handle (Black Model)
19	Interior Door Panel
21	Gasket, Door Compartment
22	Compartment Door
24	WPL 876029
26	Retainer Gasket, Side (2)
29	Retainer Insert
31	Nameplate (White Model)
31	Nameplate (Almond Model)
31	Nameplate (Black)
32	Trivet, Door
33	Bin, Door Shelf Narrow (3)
34	Bin, Door Shelf
37	Gasket Retainer, Top & Bottom
39	WPL 1126161
42	WPL 1125981
