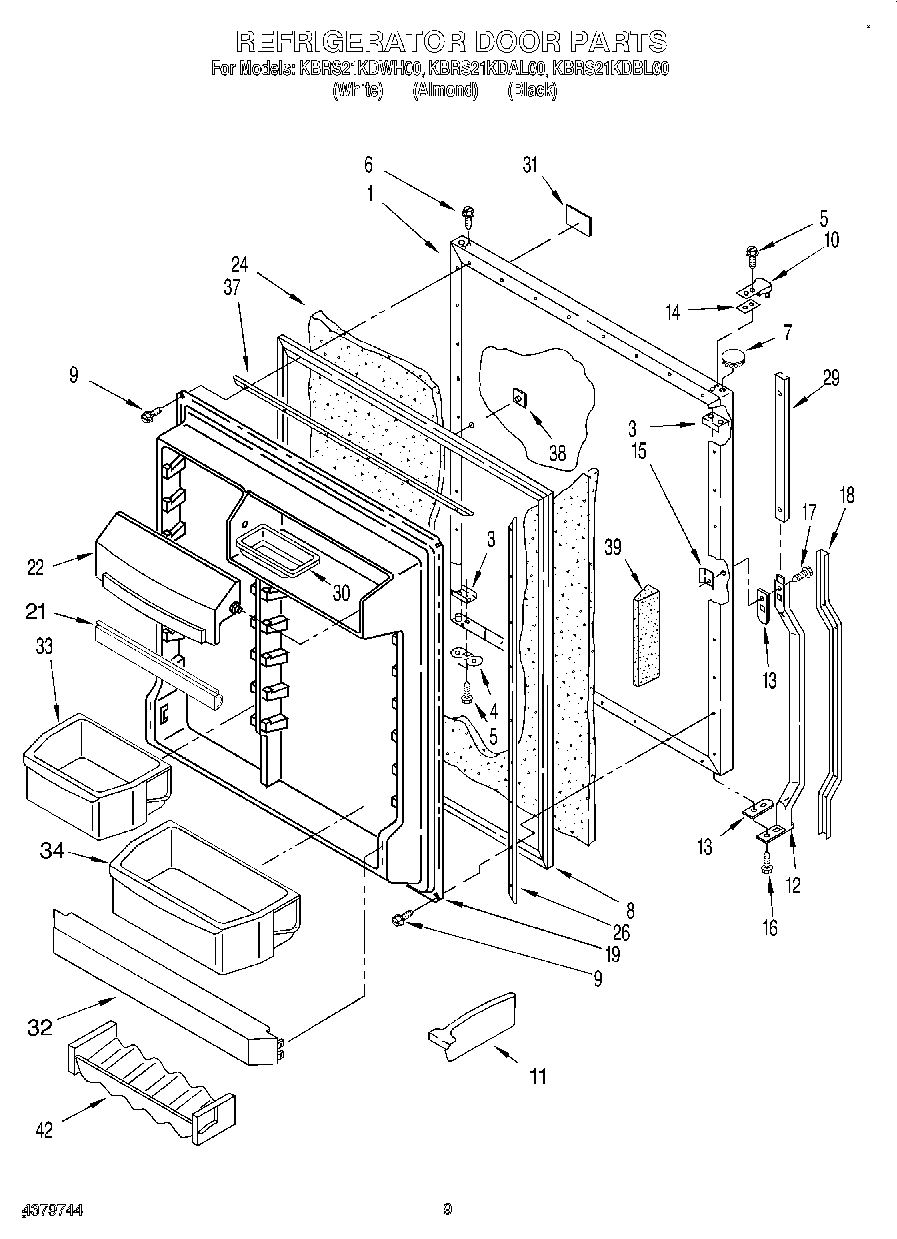

KBRS21KDBL00 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Also Order Item 24) (White)
1	Panel, Refrigerator Door (Also Order Item 24) (Almond)
1	Panel, Refrigerator Door (Also Order Item 24) (Black)
3	Plate, Tap (4)
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212651 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	Door Gasket, Magnetic (Black)
8	Door Gasket, Magnetic (Gray)
9	WP489442 Whirlpool Refrigerator Screw
9	SCREW
10	Handle End
11	Divider, Door Bin (2)
12	Handle Assembly
13	Spacer, Handle
14	Shim, Bottom
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488163 Whirlpool Refrigerator Screw
18	Insert, Handle (Black Model)
18	Insert, Handle (Almond)
18	Insert, Handle (White)
19	Interior Door Panel
21	Gasket, Door Compartment
22	Compartment Door
24	WPL 876029
26	Retainer Gasket, Side (2)
29	Retainer Insert
30	Butter, Tray
31	Nameplate (Black)
31	Nameplate (Almond Model)
31	Nameplate (White Model)
32	Trivet, Door
33	Bin, Door Shelf Narrow (3)
34	Bin, Door Shelf
37	Gasket Retainer, Top & Bottom
38	WP2189000 Whirlpool Refrigerator Handle Plug
38	WP2189009 Whirlpool Refrigerator Handle Plug
38	Hole Plug, Handle (Almond)
39	WPL 1126161
42	WPL 1125981
