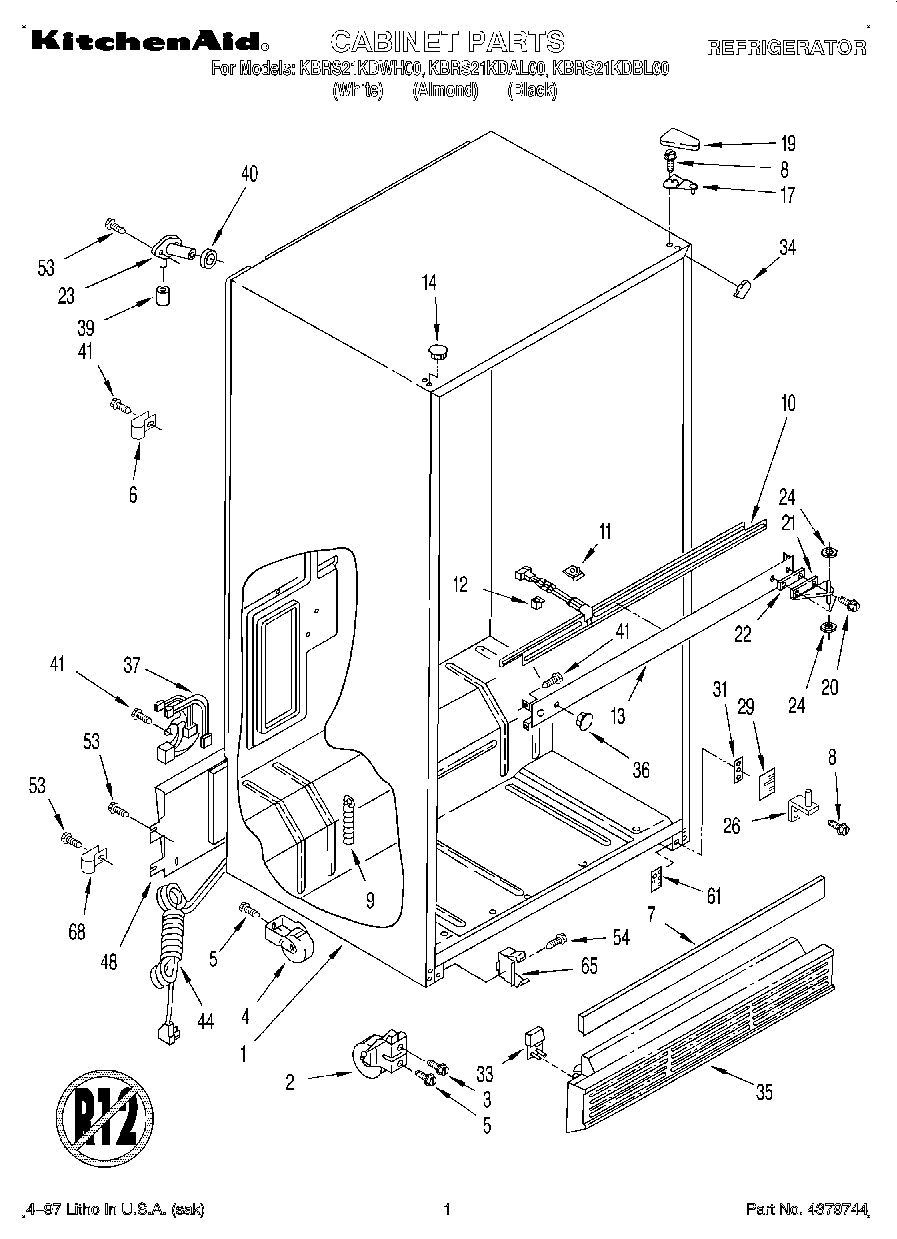

KBRS21KDWH00 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Front Roller (2)
3WP489427 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5Screw
6WP488366 Whirlpool Refrigerator Clamp
7Deck Rail Cover
9W11566763 Whirlpool Fitting
10Heater, Mullion
11Clip, Mullion (3)
12Spacer (3)
13Center Rail
14Hole Plug (6) (Almond)
14WP2183998 Whirlpool Refrigerator Button Plug
14WP2151652 Whirlpool Refrigerator Button Plug
17WP2189412 Whirlpool Refrigerator Door Hinge
19Cover, Hinge (Almond)
19WP2213363 Whirlpool Refrigerator Cover
19WP2213360 Whirlpool Refrigerator Cover
20WP999367 Whirlpool Refrigerator Screw
21Hinge, Center
22Shim, Hinge Center
23WP2196157 Whirlpool Fill Tube
24WP487802 Whirlpool Refrigerator Washer
26WP2254473 Whirlpool Refrigerator Door Hinge
29Shim, Bottom
31Spacer
33Corner Filler, Grille (Almond)
33Corner Filler, Grille (White)
33Corner Filler, Grille
34Filler, Wrapper Corner (2) (Almond)
34Filler, Wrapper Corner (2) (White)
34Filler, Wrap Corner (Black)
35Grille (White)
35Grille (Black)
35Grille (Almond)
36Hole Plug (4) (White)
37Wiring Assembly, Intermediate
39WP487996 Whirlpool Refrigerator Cap Tube
40WP1106508 Whirlpool Refrigerator Gasket
44Cord, Service
48Cover And Air Scoop Assembly
54WP489478 Whirlpool Refrigerator Screw
61Tap-Plate, Bottom Hinge
65WP2155013 Whirlpool Refrigerator Clip
68549193 Whirlpool Refrigerator Power Clamp
