KBRS22ETBL01 01 – CABINET PARTS

KBRS22ETBL01 01 – CABINET PARTS

Written by

in

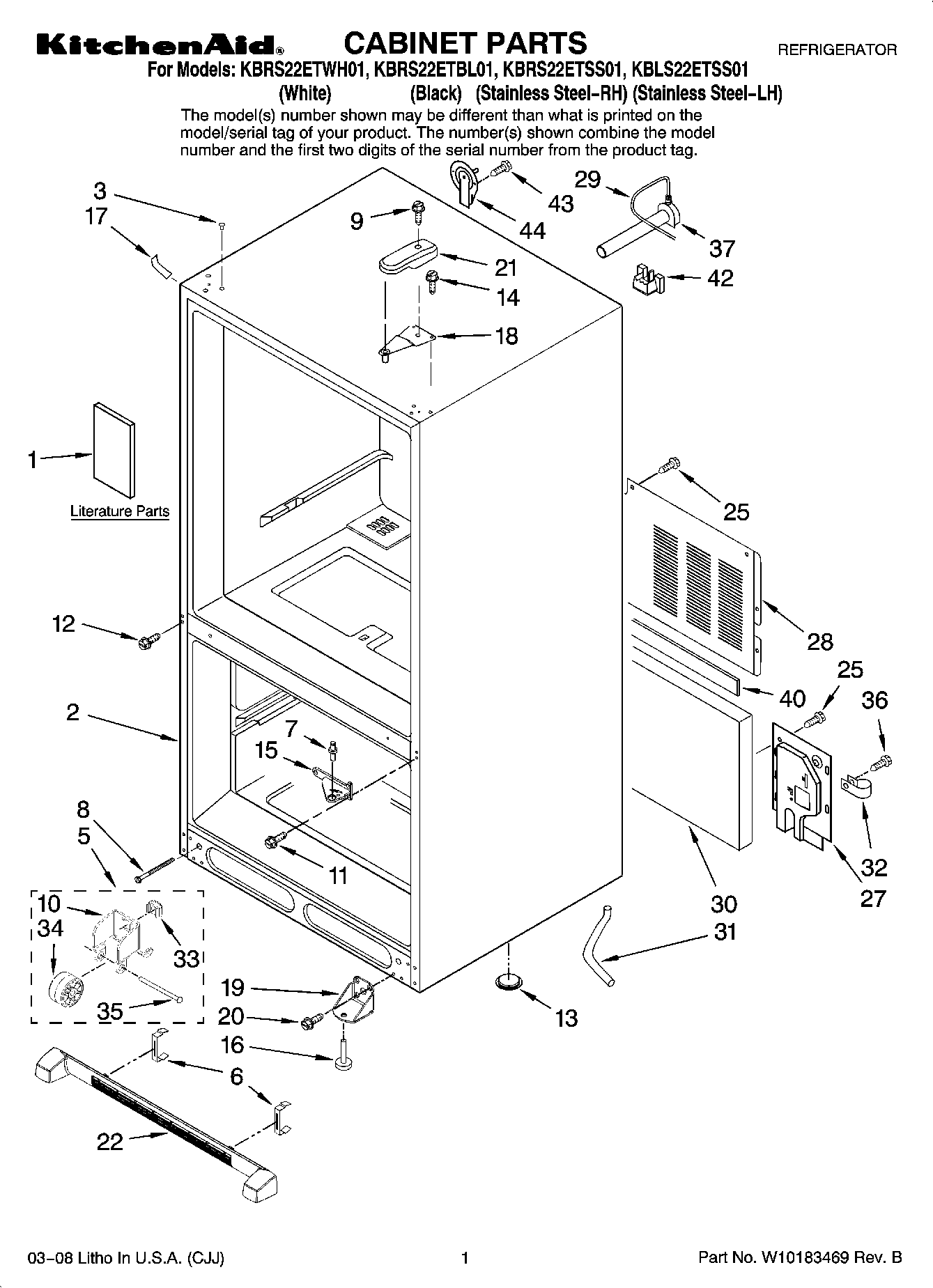

KBRS22ETBL01 01 – CABINET PARTS

Products

PositionProduct
1Tech Sheet
1Use & Care Guide
1Energy Tag
2Cabinet (Not A Servicable Part)
3WP67001130 Whirlpool Refrigerator White Button Plug
3WP12246608 Whirlpool Refrigerator Button
5Roller Assy.(Rear)
6Clip, Grille
7WP67006642 Whirlpool Refrigerator Pin
871003131 Whirlpool Oven Screw
1012456801V Whirlpool Refrigerator Bracket
11WP67006380 Whirlpool Screw
13A3076901 Whirlpool Refrigerator Plug
14WP489349 Whirlpool Refrigerator Screw
15WP12607104ED Whirlpool Refrigerator Door Hinge
15WP12607103WD Whirlpool Refrigerator Center Hinge
16W11177593 Whirlpool Leveling Feet
1767003485 Whirlpool Refrigerator Corner Cover (Black)
1767003484 Whirlpool Refrigerator White Corner Cover
18WP12566606ED Whirlpool Refrigerator Door Hinge
19Bracket, Foot
2067006564 Whirlpool Refrigerator Screw
2167001014 Whirlpool Refrigerator Top Hinge Cover White
2167001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
22WPW10534161 Whirlpool Refrigerator Front Grille
22WPW10534162 Whirlpool Refrigerator Front Grille
2567006425 Whirlpool Refrigerator Screw
27Cover, Water Valve
28Cover, Unit
29WPB5705307 Whirlpool Refrigerator Tube
3067003796 Whirlpool Refrigerator Fiber Acoustic
31W10164397 Whirlpool Refrigerator Drain Tube
3267001067 Whirlpool Refrigerator Drain Tube Clip
33M0286708 Whirlpool Refrigerator Holder Nut Assembly
34WP10450603 Whirlpool Refrigerator Roller
35Pin
36WP33001882 Whirlpool Screw
37W11176463 Whirlpool Refrigerator Water Tube
40Gasket
42WP12777701 Whirlpool Refrigerator Filler Block
43WP98165 Whirlpool Screw
4412726003 Whirlpool Refrigerator Water Cover
