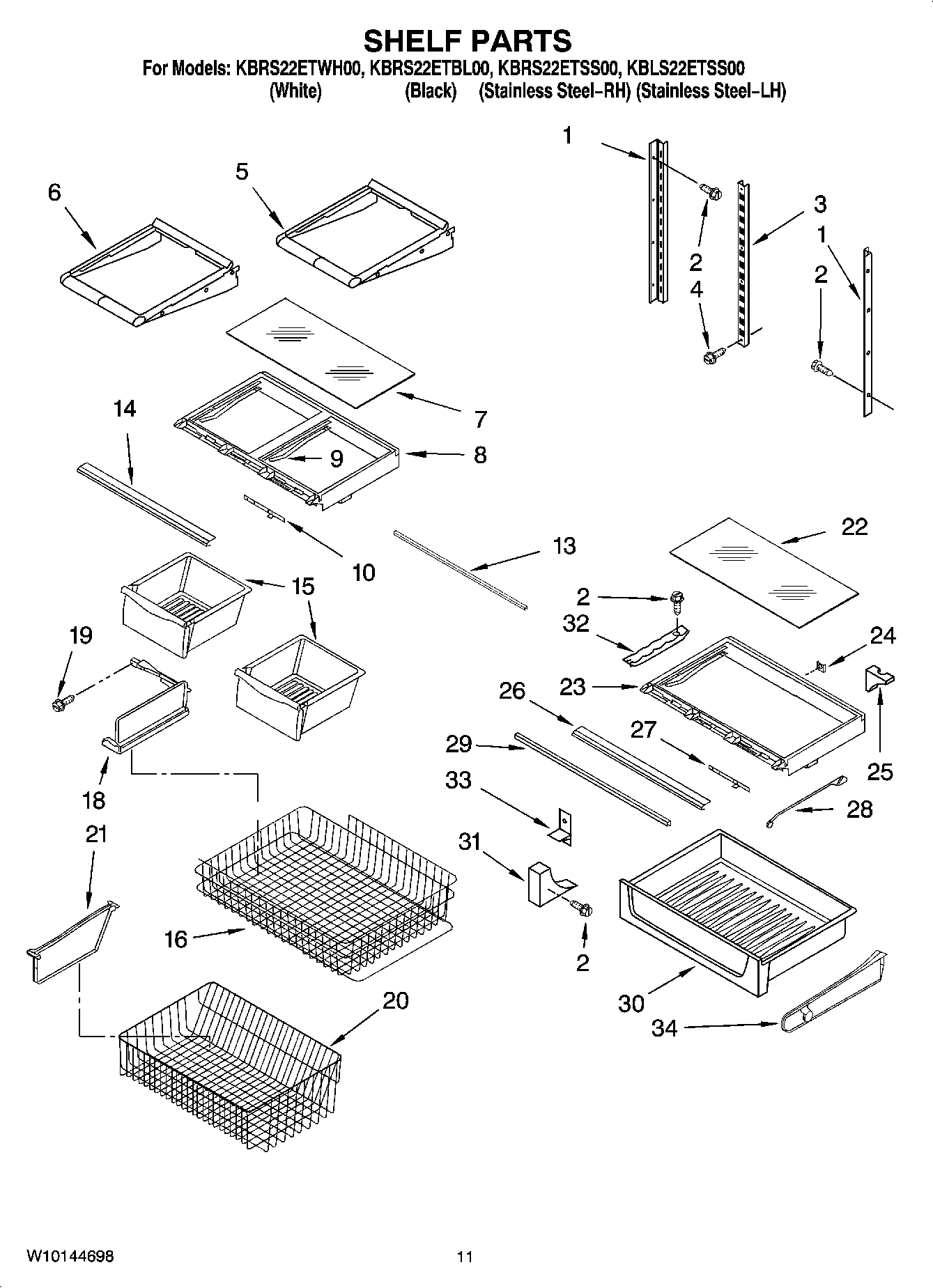

KBRS22ETSS00 06 – SHELF PARTS

Products

Position	Product
1	Ladder, Side
2	67006425 Whirlpool Refrigerator Screw
3	67001073 Whirlpool Refrigerator Center Ladder
4	W10709795 Whirlpool Refrigerator Screw
5	Shelf, Fixed (2)
6	Shelf, Glide (2)
9	RAIL-CENTR CRISPER
10	SLIDE
14	W10231483 Whirlpool Refrigerator Trim Shelf
15	Pan, Crisper (2)
16	Basket, Freezer (Upper)
18	Divider, Upper Basket
19	Screw
20	Basket, Freezer (Lower)
21	Divider, Lower Basket
22	WP67006878 Whirlpool Refrigerator Crisper Glass
23	WPW10568041 Whirlpool Refrigerator Crisper Shelf Drawer Cover
24	Gasket, Pantry
25	WP12531601 Whirlpool Refrigerator Tunnel
26	W10656985 Whirlpool Refrigerator Trim
27	67002002 Whirlpool Refrigerator Pantry Slide
28	Rod, Temperature Control
29	WP12227303WD Whirlpool Refrigerator Crisper Brace
30	Drawer, Pantry
31	WP67001722 Whirlpool Refrigerator Support
31	WP67001721 Whirlpool Refrigerator Support
32	WP67001719 Whirlpool Refrigerator Track
33	WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
34	Divider, Pantry
