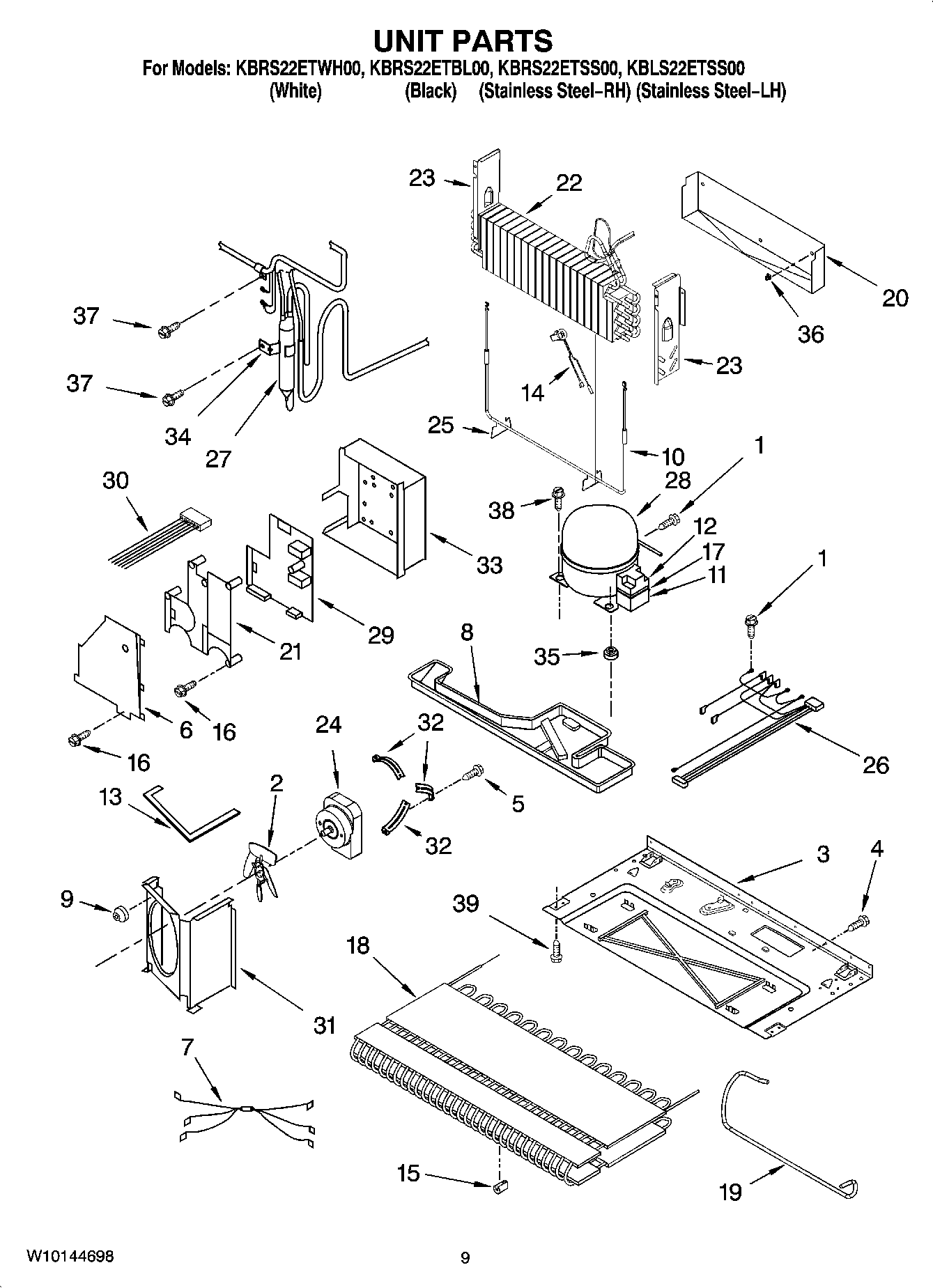

KBRS22ETWH00 05 – UNIT PARTS

KBRS22ETWH00 05 – UNIT PARTS

Written by

in

KBRS22ETWH00 05 – UNIT PARTS

Products

PositionProduct
978030 Whirlpool Refrigerator Valve
Following Parts Not Illustrated and Optional Parts Not Included
REFRIGERANT CHARGE 5.00 Ozs. (R-134A)
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
VALVE, ACCESS (5/8“)
876764 Whirlpool Refrigerator Primary Valve
167006425 Whirlpool Refrigerator Screw
2W10156818 Whirlpool Refrigerator Fan Blade
3Basepan
412992301 Whirlpool Refrigerator Screw
5WP67004954 Whirlpool Refrigerator Screw
667005421 Whirlpool Hoist Cover
7Harness, Evap Heater
8Drain Pan
9Grommet (3)
10WP67001794 Whirlpool Refrigerator Defrost Heater
11Capacitor (See Item 12)
12W10613606 Whirlpool Refrigerator Start Device Relay Overload
13WP854334 Whirlpool Air Conditioner Sealing Strip
14WP67003426 Whirlpool Refrigerator Thermostat
1567005680 Whirlpool Refrigerator Condenser Grommet
16Screw (2)
17Clip, Capacitor
18WP67006132 Whirlpool Refrigerator Condenser
19Tube, Discharge
20WPW10292802 Whirlpool Refrigerator Drip Tray
21Spacer, Box- High Voltage
2212001919 Whirlpool Refrigerator Evaporator Replacement Kit
23Dam (Left Side)
23Dam (Right Side)
24Motor, Fan
25W11673433 Whirlpool Clip
26Harness, Unit
27WPW10143759 Whirlpool Dryer Filter
28W10160407 Whirlpool Refrigerator Compressor
29Control Board, High Voltage
30Harness, HV
31Shroud
32WP67004953 Whirlpool Refrigerator Bracket
33Control Box, High Voltage
3410547003 Whirlpool Refrigerator Dryer Clip
3567003493 Whirlpool Refrigerator Compressor Grommet
36CLIP, EVAP (2)
37WP33001882 Whirlpool Screw
3812846902 Whirlpool Refrigerator Screw
39Screw (4)
