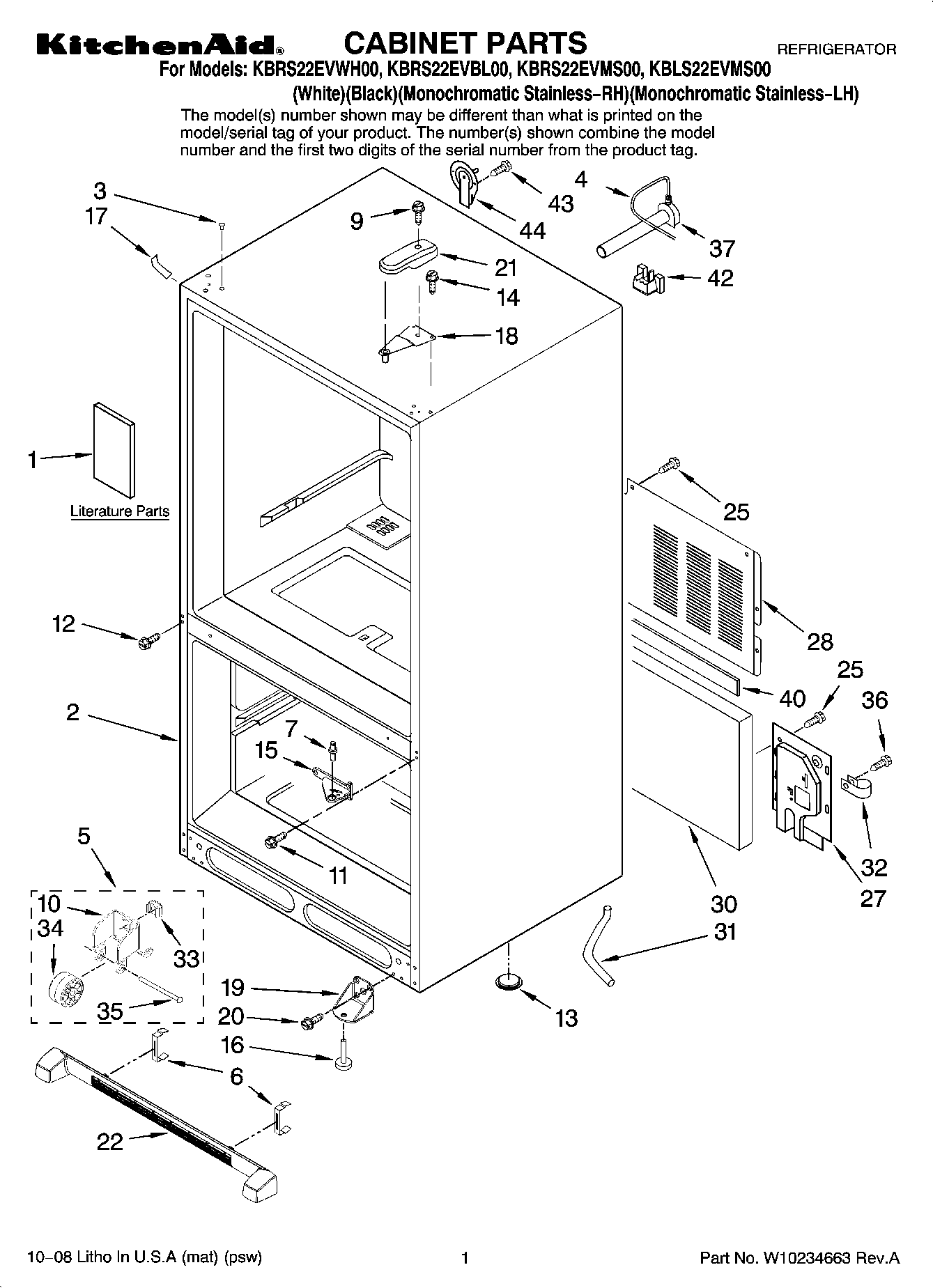

KBRS22EVBL00 01 – CABINET PARTS

KBRS22EVBL00 01 – CABINET PARTS

Written by

in

KBRS22EVBL00 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide
1	Use & Care Guide
1	Tech Sheet
2	Cabinet, (Not A Serviceable Part)
3	WP12246608 Whirlpool Refrigerator Button
3	WP67001130 Whirlpool Refrigerator White Button Plug
4	WPB5705307 Whirlpool Refrigerator Tube
5	Roller Foot Assembly
6	Clip, Grille
7	WP67006642 Whirlpool Refrigerator Pin
10	12456801V Whirlpool Refrigerator Bracket
11	WP67006380 Whirlpool Screw
13	A3076901 Whirlpool Refrigerator Plug
14	WP489349 Whirlpool Refrigerator Screw
15	12607103AP Whirlpool Refrigerator Door Hinge
15	WP12607103WD Whirlpool Refrigerator Center Hinge
15	WP12607104ED Whirlpool Refrigerator Door Hinge
16	W11177593 Whirlpool Leveling Feet
17	WP12587703AP Whirlpool Refrigerator Filler
17	67003484 Whirlpool Refrigerator White Corner Cover
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	WP12566606ED Whirlpool Refrigerator Door Hinge
19	Bracket, Foot (2)
20	67006564 Whirlpool Refrigerator Screw
21	67001014 Whirlpool Refrigerator Top Hinge Cover White
21	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
21	W11106366 Whirlpool Refrigerator Door Hinge
22	WPW10534161 Whirlpool Refrigerator Front Grille
22	WPW10534162 Whirlpool Refrigerator Front Grille
25	67006425 Whirlpool Refrigerator Screw
27	Cover, Water Valve
28	Cover, Unit
30	67003796 Whirlpool Refrigerator Fiber Acoustic
31	W10164397 Whirlpool Refrigerator Drain Tube
32	Clip, Drain Tube
33	M0286708 Whirlpool Refrigerator Holder Nut Assembly
34	WP10450603 Whirlpool Refrigerator Roller
35	Pin
36	WP33001882 Whirlpool Screw
37	W11176463 Whirlpool Refrigerator Water Tube
40	Gasket
42	WP12777701 Whirlpool Refrigerator Filler Block
43	WP98165 Whirlpool Screw
44	12726003 Whirlpool Refrigerator Water Cover
