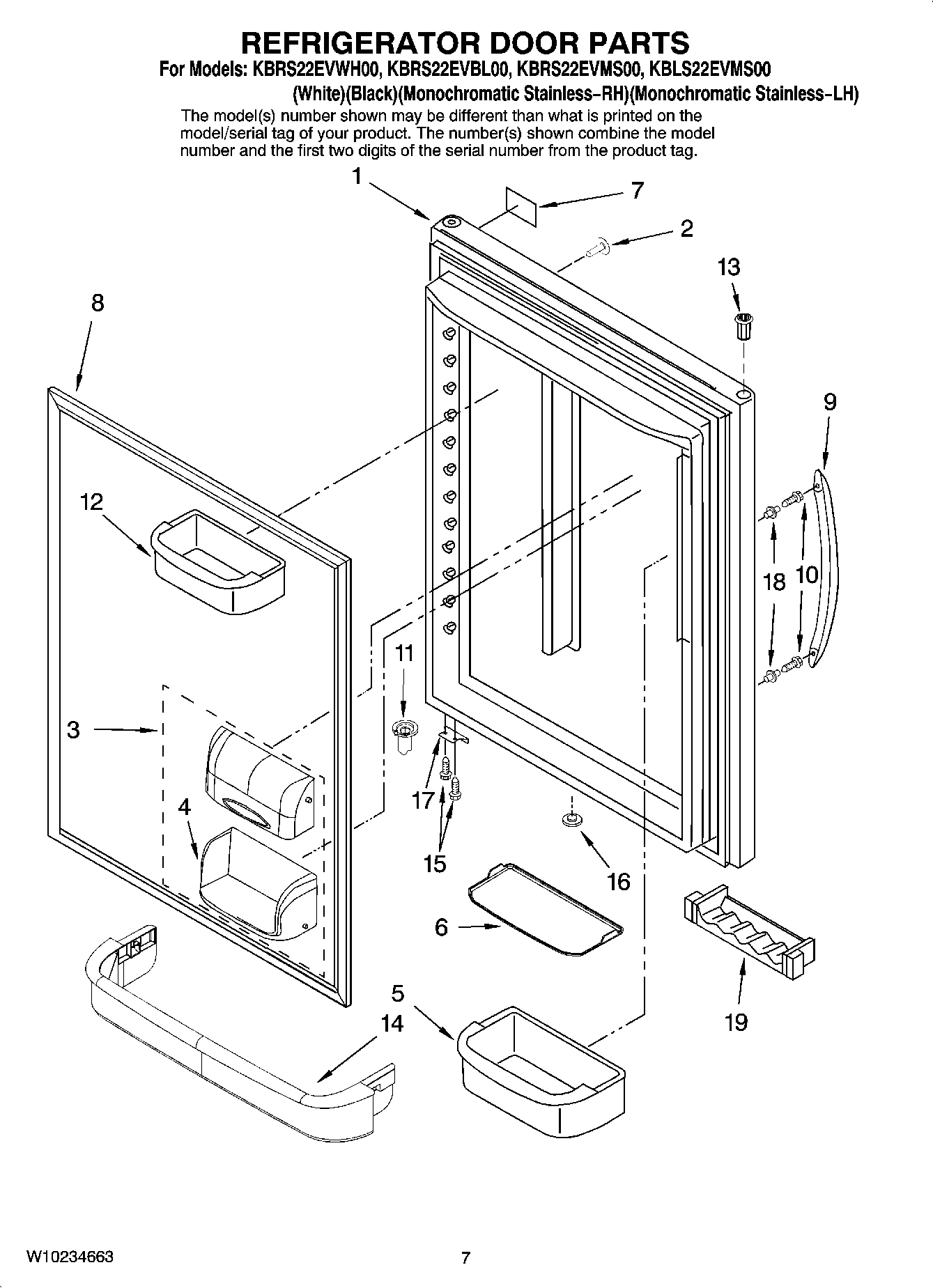

KBRS22EVBL00 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Refrigerator (Stainless-LH)
1	Door, Refrigerator (Stainless-RH)
1	Door, Refrigerator (White)
1	Door, Refrigerator (Black)
2	WP67001130 Whirlpool Refrigerator White Button Plug
2	WP12246608 Whirlpool Refrigerator Button
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371195 Whirlpool Refrigerator Cantilever Bin
6	WPW10450021 Whirlpool Refrigerator Mat
7	NAMEPLATE
7	WPW10243393 Whirlpool Dishwasher Nameplate
7	WPW10243392 Whirlpool Dishwasher Nameplate
8	W10443313 Whirlpool Door Gasket
8	WPW10436248 Whirlpool Door Gasket
8	W10443314 Whirlpool Refrigerator FIP Gasket
9	WPW10314517K Whirlpool Refrigerator Handle
9	WPW10314515 Whirlpool Refrigerator Handle
9	Handle, Door (Black)
10	67006901 Whirlpool Refrigerator Screw
11	WP67003639 Whirlpool Refrigerator Closer
11	WP67003638 Whirlpool Closing Cam
12	Shelf Bin (Medium)
13	67004978 Whirlpool Refrigerator Black Door Bushing
13	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
14	Retainer, Door
15	WP98165 Whirlpool Screw
16	10712401 Whirlpool Refrigerator Vent Plug (White)
16	67004838 Whirlpool Refrigerator Button Vent Plug
17	W11708403 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
17	W11401472 Whirlpool Refrigerator Door Stop
18	WP67006113 Whirlpool Stud Bolt
19	WP67005626 Whirlpool Refrigerator Can Caddy
