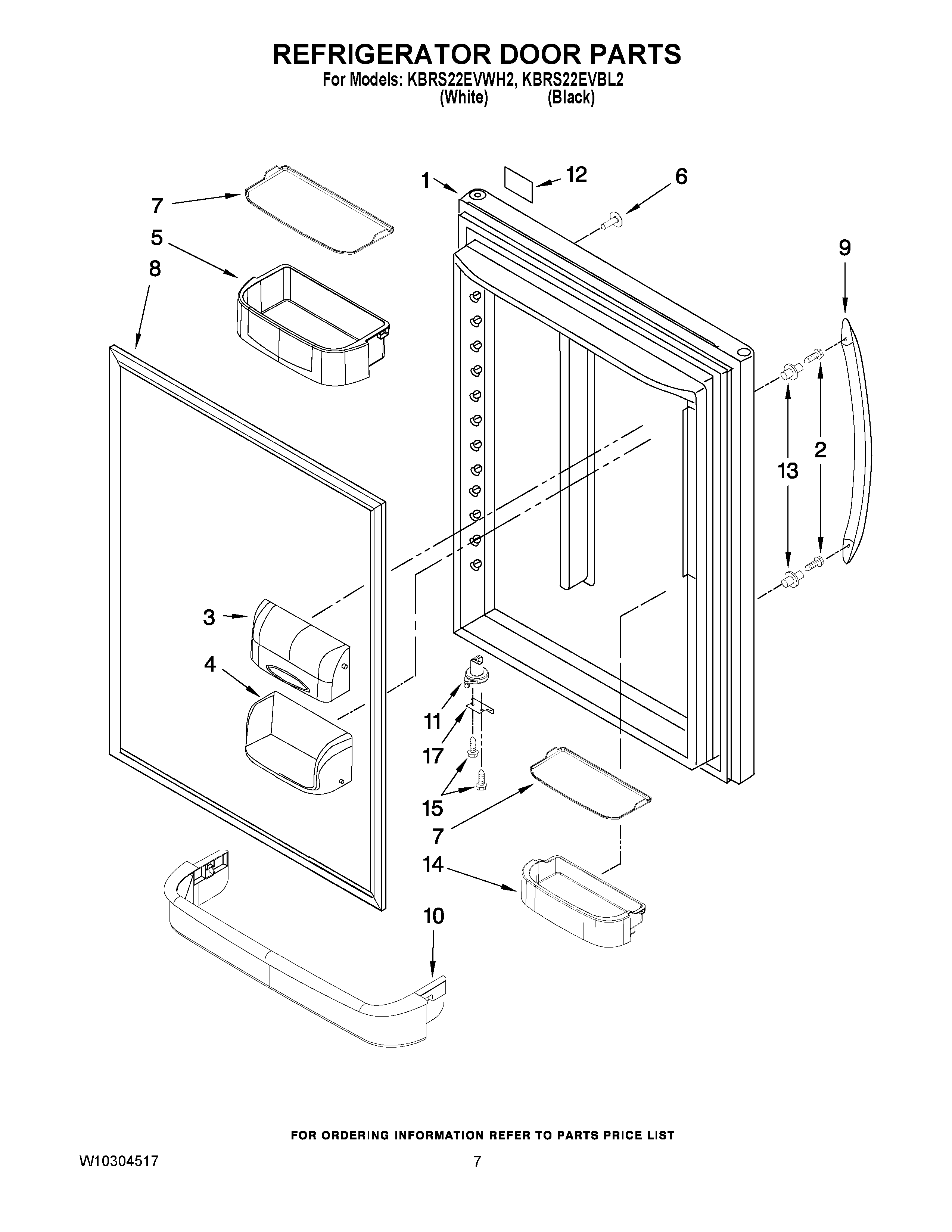

KBRS22EVBL2 04 – REFRIGERATOR DOOR PARTS

Written by

Products

Position	Product
1	DOOR, REFRIGERATOR (BLACK)
1	12658572WQ Whirlpool Refrigerator DOR-FIP White
2	WP3387230 Whirlpool Screw
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371195 Whirlpool Refrigerator Cantilever Bin
6	WP67001130 Whirlpool Refrigerator White Button Plug
7	WPW10450021 Whirlpool Refrigerator Mat
8	WPW10436248 Whirlpool Door Gasket
8	W10443313 Whirlpool Door Gasket
9	HANDLE, DOOR (BLACK)
9	WPW10314515 Whirlpool Refrigerator Handle
10	Retainer, Door
11	WP67003638 Whirlpool Closing Cam
11	WP67003639 Whirlpool Refrigerator Closer
12	WPW10243393 Whirlpool Dishwasher Nameplate
12	WPW10243392 Whirlpool Dishwasher Nameplate
12	NAMEPLATE
13	MOUNT, HANDLE
14	Bucket, Short
15	WP98165 Whirlpool Screw
17	W11708403 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
