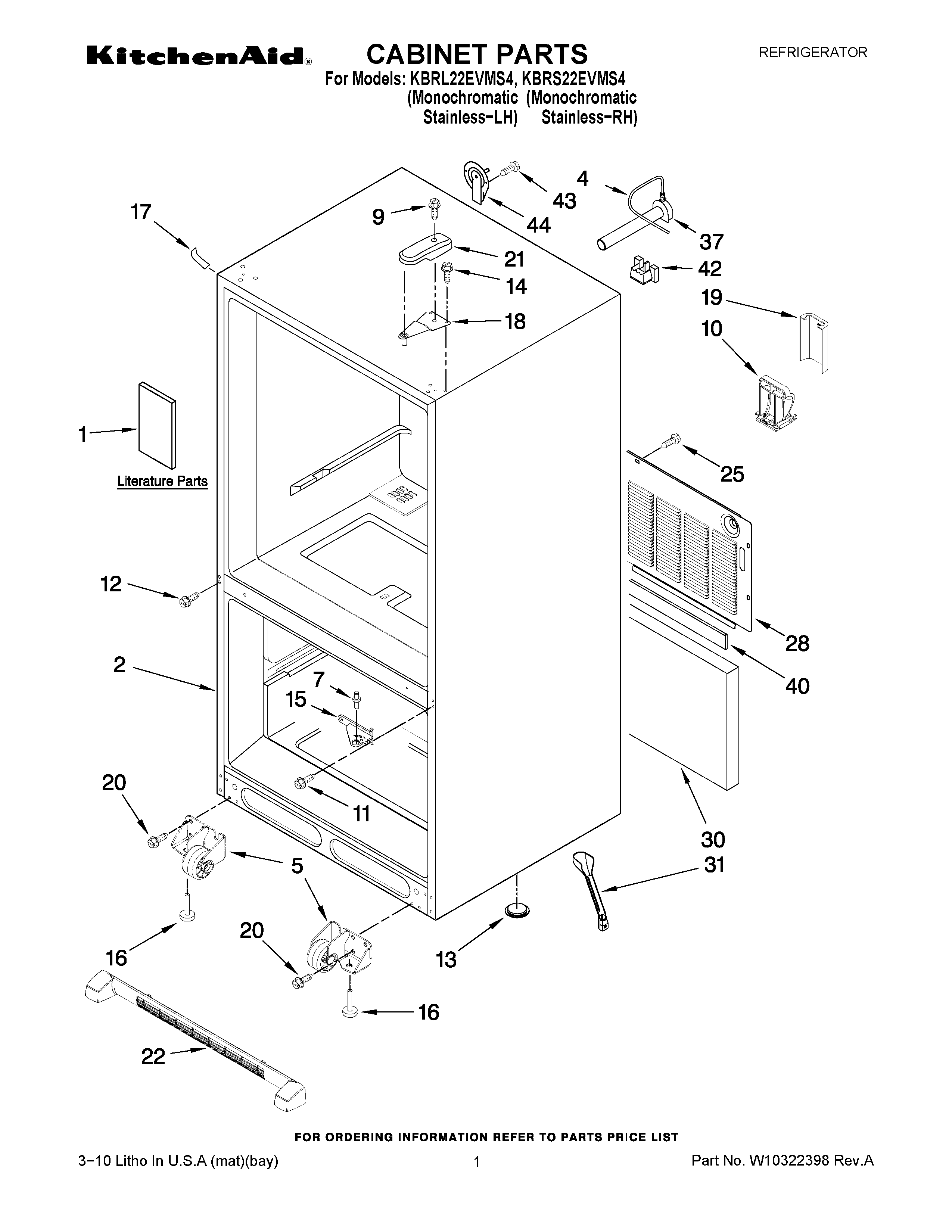

KBRS22EVMS4 01 – CABINET PARTS

Products

Position	Product
1	TECH SHEET
1	Energy Guide
1	Use & Care Guide
2	CABINET (NOT A SERVICEABLE PART)
4	W11120581 Whirlpool Refrigerator Water Tube
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
5	WPW10515762 Whirlpool Refrigerator Cabinet Roller
7	WP67006642 Whirlpool Refrigerator Pin
10	12831101 Whirlpool Refrigerator Tube Clamp
11	WP67006380 Whirlpool Screw
13	A3076901 Whirlpool Refrigerator Plug
14	WP489349 Whirlpool Refrigerator Screw
15	12607103AP Whirlpool Refrigerator Door Hinge
16	WPW10141622 Whirlpool Leveler
17	WP12587703AP Whirlpool Refrigerator Filler
18	WP12566606ED Whirlpool Refrigerator Door Hinge
19	W10208593 Whirlpool Refrigerator Valve Cover
20	67006564 Whirlpool Refrigerator Screw
21	W11106366 Whirlpool Refrigerator Door Hinge
22	WPW10534160 Whirlpool Refrigerator Front Grille
25	67006425 Whirlpool Refrigerator Screw
28	W10210980 Whirlpool Refrigerator Back Cover
30	INSULATION, SOUND
31	W10619951 Whirlpool Drain Tube with Grommet
37	W11176463 Whirlpool Refrigerator Water Tube
40	B5759655 Whirlpool Refrigerator Gasket
42	WP12777701 Whirlpool Refrigerator Filler Block
43	WP98165 Whirlpool Screw
44	12726003 Whirlpool Refrigerator Water Cover
