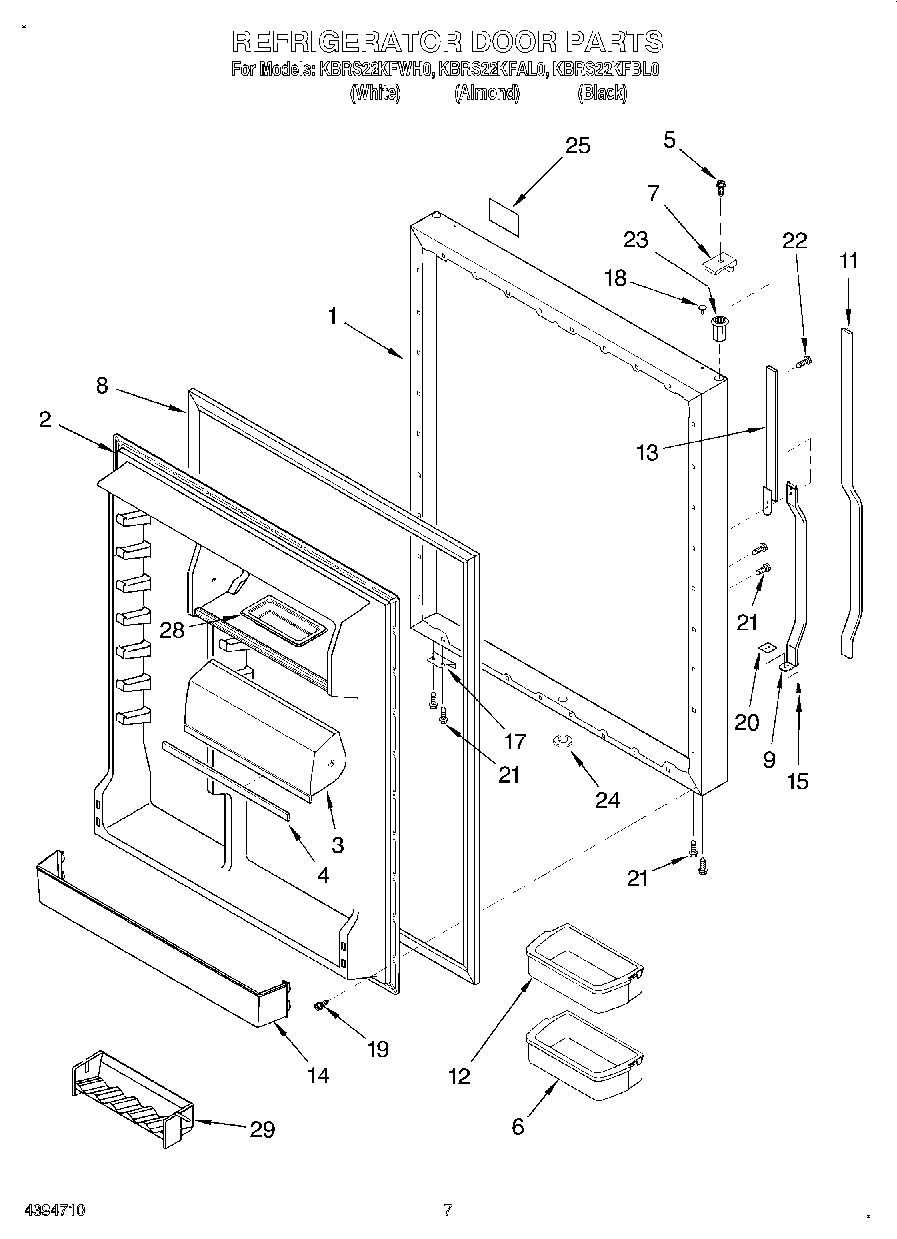

KBRS22KFAL0 05 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door Panel (Includes Insulation) (White)
1Refrigerator Door Panel (Includes Insulation) (Almond)
1Refrigerator Door Panel (Includes Insulation) (Black)
2Interior Panel
3WPL 4344369
4WPL 4344370
5Screw
6Shelf Bin (1)
7End Cap (Almond)
7End Cap (Black)
7End Cap
8WP12550115Q Whirlpool Door Gasket
8Door Gasket, Magnetic (Black)
9Door Handle
11Insert, Handle (Almond)
11Insert, Handle (White)
11Insert, Handle (Black)
12Shelf Bin (3)
13Insert, Handle
14Trivet, Door
15Screw
17Stop, Door
18WP2189009 Whirlpool Refrigerator Handle Plug
18WP2189000 Whirlpool Refrigerator Handle Plug
18Plug, Button (3) (Almond)
19WPL 4343811
20Shim
21WPW10348409 Whirlpool Screw
22WPL 4344167
23Bushing (Black)
23WPL 4344362
24Plug, Button (Almond)
24Plug, Button (Black)
24WPL 4344227
25Nameplate (Almond)
25Nameplate (Black)
25WPL 4344326
28WPL 4344296
29WPL 4344374
