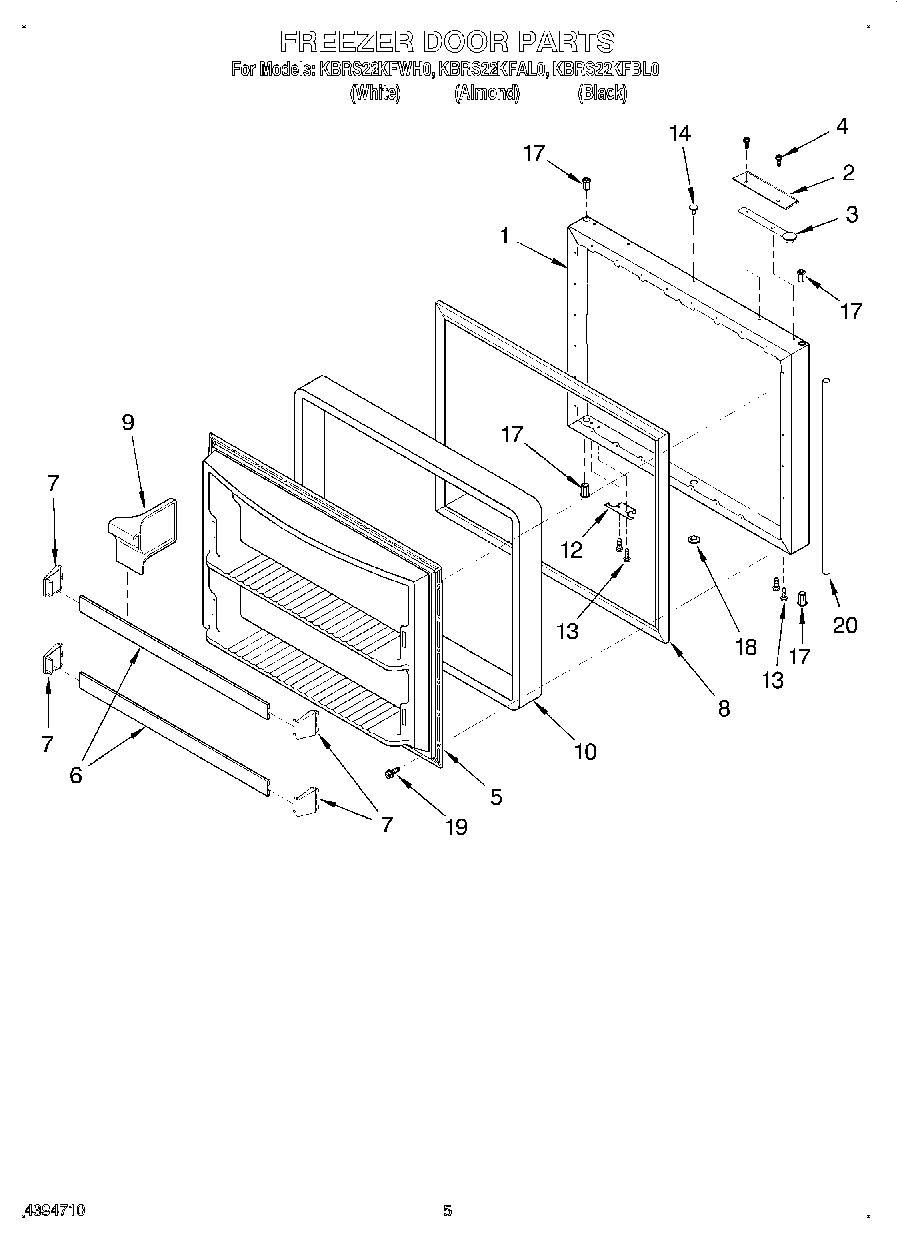

KBRS22KFWH0 03 – FREEZER DOOR

KBRS22KFWH0 03 – FREEZER DOOR

Written by

in

KBRS22KFWH0 03 – FREEZER DOOR

Products

PositionProduct
1Freezer Door Panel (Includes Insulation) (Black)
1Freezer Door Panel (Includes Insulation) (Almond)
1Freezer Door Panel (Includes Insulation) (White)
2Handle
3Plug, Button (Black)
3Plug, Button (Almond)
3Plug, Button (White)
4Screw
5Interior Panel
6Trim, Shelf
74386917 Whirlpool Endcap Kit
8WP12550116Q Whirlpool Refrigerator Gasket
8WP12550101Q Whirlpool Refrigerator Gasket
9WPL 4344300
10876370 Whirlpool Refrigerator Insulation
12Stop, Door
13WPW10348409 Whirlpool Screw
14WP2189000 Whirlpool Refrigerator Handle Plug
14WP2189009 Whirlpool Refrigerator Handle Plug
14Plug, Button (3) (Almond)
17WP67004977 Whirlpool Refrigerator Door Hinge Bushing
17Bushing (Black)
18Plug, Button (Almond)
18Plug, Button (Black)
18WPL 4344227
19WPL 4343811
20Support Pin
