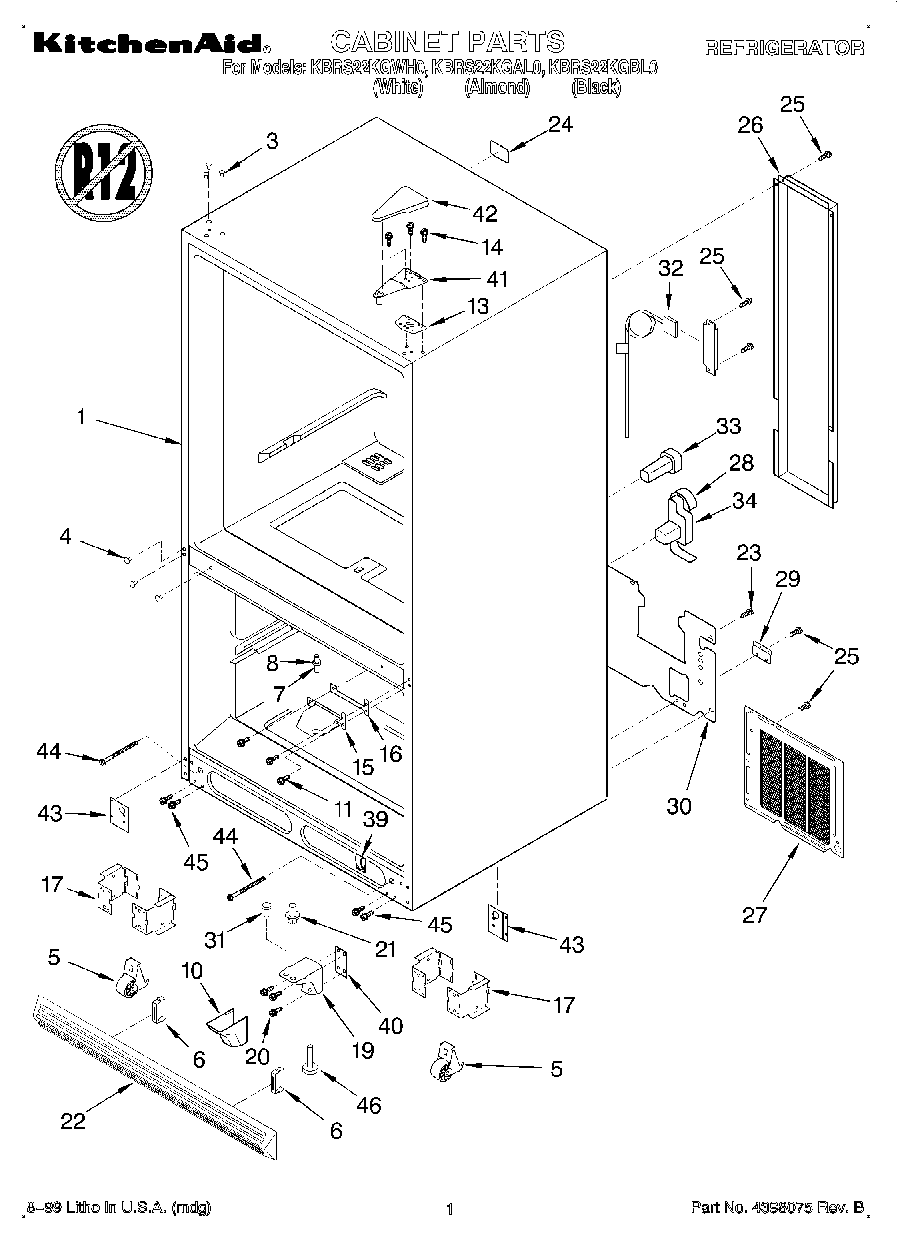

KBRS22KGAL0 01 – CABINET

KBRS22KGAL0 01 – CABINET

Written by

in

KBRS22KGAL0 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
3Plug, Button (3) (Almond)
3WP2189000 Whirlpool Refrigerator Handle Plug
3WP2189009 Whirlpool Refrigerator Handle Plug
4WP67001130 Whirlpool Refrigerator White Button Plug
4WP12246608 Whirlpool Refrigerator Button
4Plug, Button (Almond)
5WPL 4344291
6WPL 4344155
7WP67006744 Whirlpool Refrigerator Center Pin
8WPM0274062 Whirlpool Refrigerator Shim
8WPM0274057 Whirlpool Refrigerator Shim
10Hinge Cover, Bottom (Almond)
10WPL 4344204
10Hinge Cover, Bottom (Black)
11WP67006380 Whirlpool Screw
13Shim, Hinge Top (Almond)
13Shim, Hinge Top (Black)
13WPL 4344194
14WP489349 Whirlpool Refrigerator Screw
15Hinge, Center
16Shim, Center Hinge (White)
16Shim, Center Hinge (Black)
16Shim, Center Hinge (Almond)
17WPL 4344295
19WPL 4344285
19Hinge Bottom (Black)
20WP67006715 Whirlpool Refrigerator Screw
2167007018 Whirlpool Refrigerator Bottom Hinge PIN
22Grille (Black)
22Grille (White)
22Grille (Almond)
23WPL 4344267
24WPL 4344264
25WPL 4343759
26Wire Cover
27WPL 4344261
28Harness, Control
29W10833899 Whirlpool Refrigerator Water Inlet Valve Kit
30Cover, Unit
31WPL 4344210
32Power Cord
33WPL 4344259
34WPL 4344260
39WPM0104106 Whirlpool Refrigerator Clip
40Shim, Hinge
41WPL 4344172
42WPL 4344197
42Hinge Cover (Almond)
42Hinge Cover (Black)
43WPL 4344299
43WPL 4344301
44WPL 4344290
45W11573574 Whirlpool Screw
46W11177593 Whirlpool Leveling Feet
